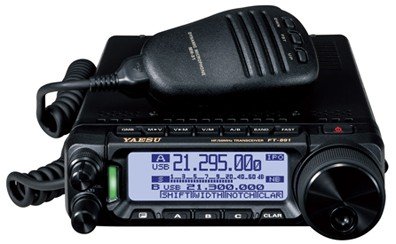

Yaesu FT-891 HF + 50Mhz 100W

The new FT-891 is the most compact HF 100W transceiver in the Yaesu range, suitable for both fixed and mobile applications.

It covers all HF amateur bands from 160 to 10m with also 6m band (50 MHz) with a power of 100W in SSB / CW and 25W in AM.

With 32-bit DSP, Noise Blanker, Notch filter and 'Contour' filters and 'APF' (Audio Peak Filter) from Yaesu high-end transceivers.

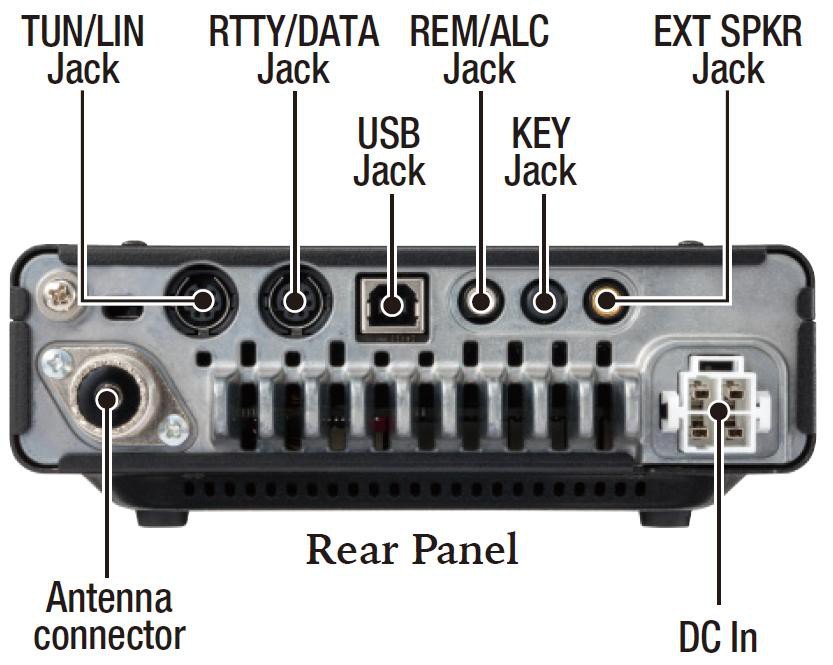

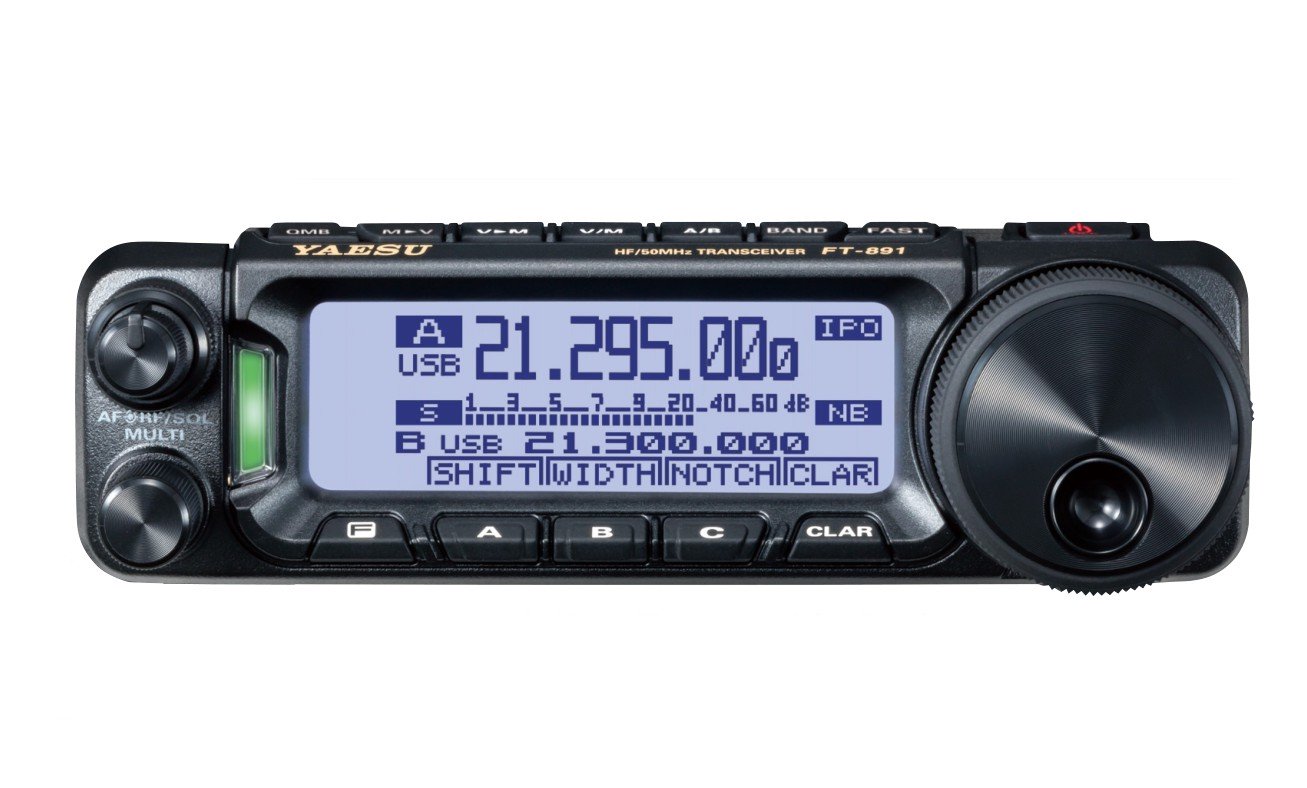

The Yaesu FT-891 is equipped with a large LCD display, large VFO button, USB CAT interface socket, RTTY / DATA connector, Yaesu standard connector for Tuner (FC-50 & FC-40) and linear amplifier, remote / ALC, CW and external speaker.

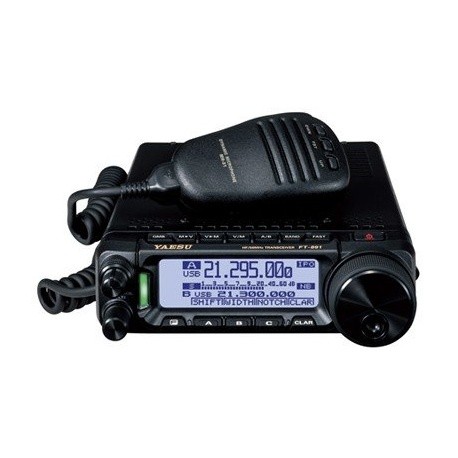

Supplied complete with: FT-891 HF mobile export 100W, MH-31A8J handheld microphone, MMB-82 mounting bracket, microphone clip, 13.8V DC power cable with fuses, manual in French or english.

More details

Download

User guide FT-891 (FR)

In french 19.73M

Advanced user guide FT-891 (FR)

In french. 13.3M

Data sheet

Features Yaesu FT-891

Frequency Range: Tx: 1.8 – 54 MHz (all Bands version Export) Rx: 30 KHz – 56 MHz
Channel Step: 2/5/10 Hz (SSB, CW), 10/100 Hz (AM,FM)
Frequency Stability: +/- 0.5 ppm -10 °C to +50 °C
Modes of Emission: A1A (CW), A3E (AM), J3E (LSB, USB), F3E (FM)
Impedance: 50 Ohms
Supply Voltage: 13.8VDC +/- 15%
Current Consumption: Rx: 2.0 A (Signal Present) Tx: 23 A
Operating Tempature Range: -10 °C to +50 °C
Case Size (WxHxD): 155 x 52 x 218 mm w/o Knobs
Weight: 1.9 kg

Output Power: 100W SSB/CW/FM (AM: 25W)
Circuit Type: SSB/CW/AM: Triple-conversion Super-heterodyne FM: Double Conversion Super-heterodyne
Intermediate Frequencies: 1st: 69.450 MHz / 2nd: 450 KHz
Maximum AF Output: 2.5 W
Audio output Impedance: 4 to 16 Ohms (8 Ohms nominal)
Sensitivity: SSB/CW (S/N 10dB) 0.158uV (1.8 - 30 MHz), 0.125uV (50 -54 MHz)
AM (S/N 10 dB) 4 uV (0.5 – 1.8 MHz), 1.6uV (1.8 – 30 MHz), 1.2uV (50 – 54 MHz)
FM (12 dB SINAD) 0.35uV (29, 50 – 54 MHz)
Warranty: 3 years, CE, FCC.
