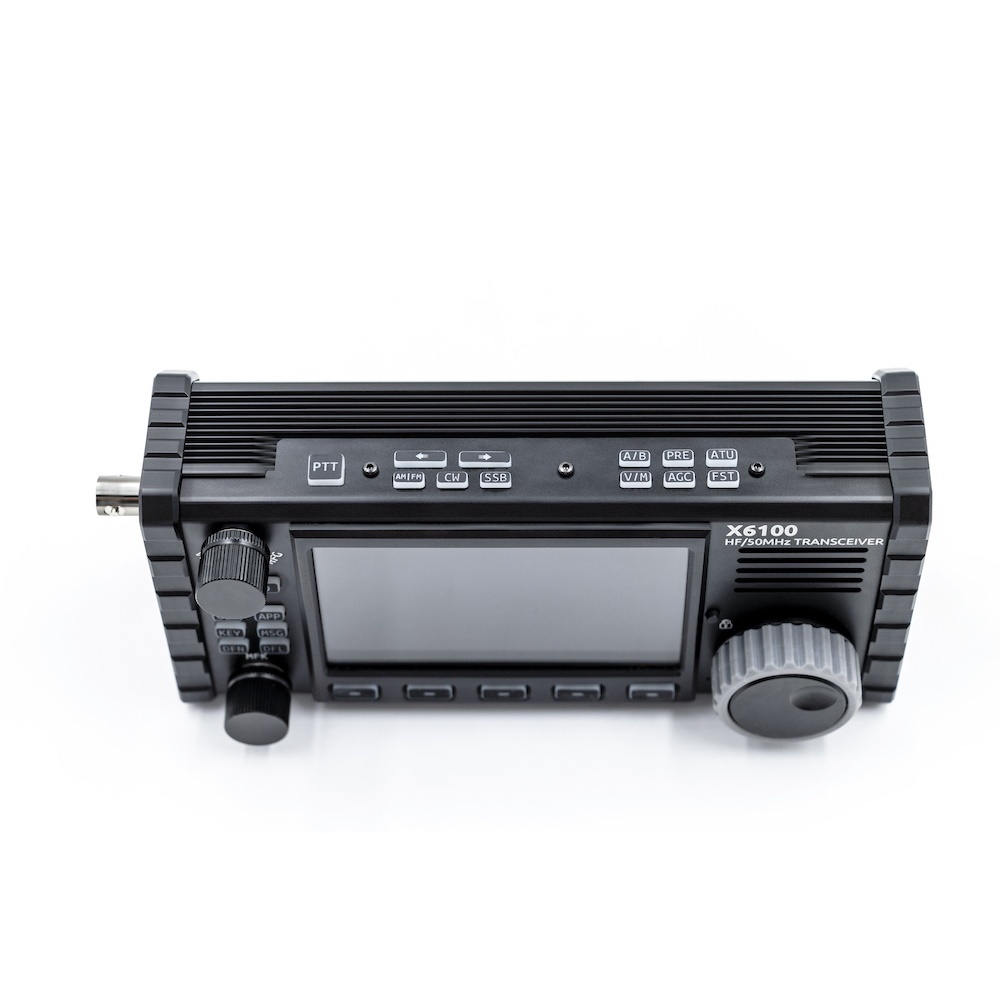

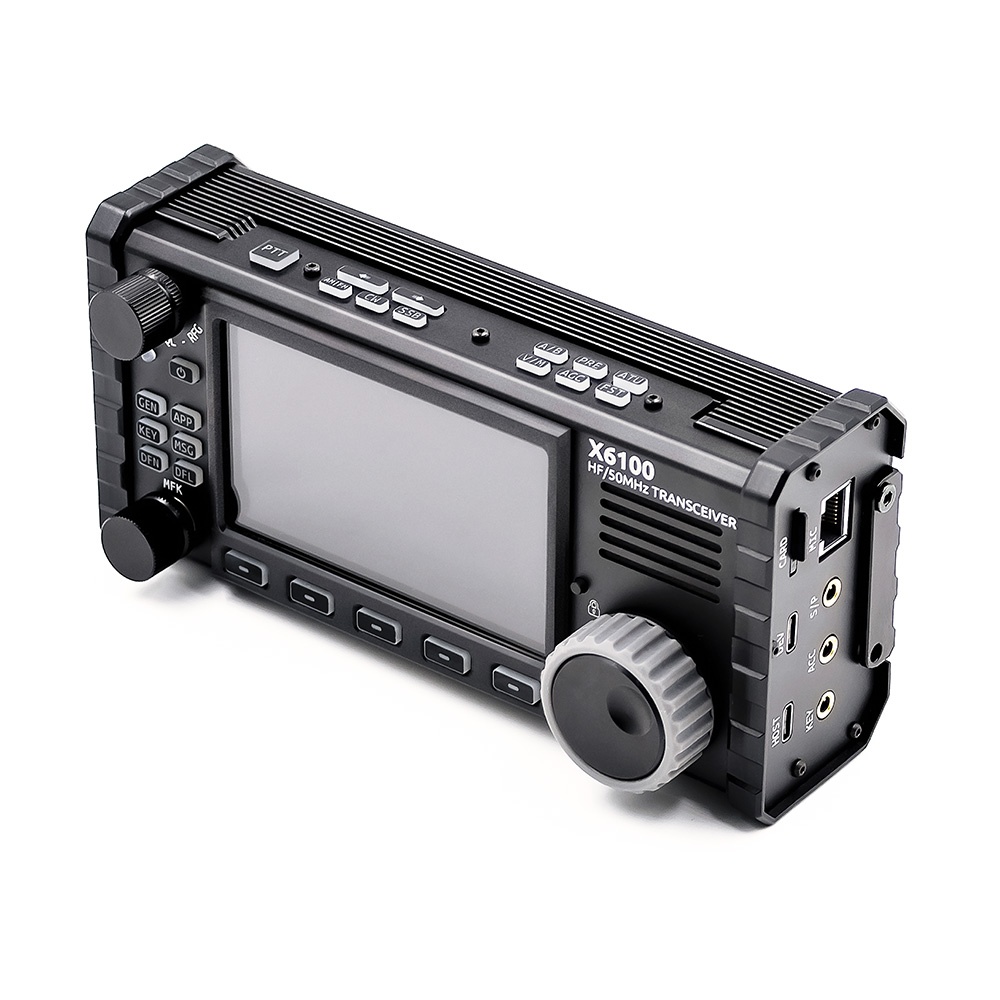

XIEGU X6100 HF/50MHz SDR transceiver View larger

Xiegu

XIEGU-X6100-1623

New product

China

XIEGU X6100 HF and 50MHz hamradio bands SDR transceiver

rating Read the 12 reviews
Average rating: 5/5 Number of reviews: 12

The Xiegu X6100 is an ultra portable HF/50MHz SDR transceiver for the HF amateur radio bands from 0 to 30MHz and the 6m band (50MHz), all modes (AM/FM/SSB) including DATA, with 10W maximum (on 12V power supply) and 5W on battery (included), an integrated automatic antenna tuner, Bluetooth and WIFI.

New features can be added through firmware updates.

The RF unit is based on an SDR structure for transmission and reception, with a sampling rate of 24 bits.

Supplied with : Xiegu X6100, 12V power cable, backlit handheld microphone, USB cable, English operating instructions.

More details

590,83 € tax excl.

In stock

   2 Items

Download

Manual X6100 (FR)

French manual of the Xiegu X6100. 963.57k

CH342 USB drivers for XIEGU

For the XIegu X6100 under Windows 10 and 11. 70.87k

User guide FT8 X6100 (FR)

French user guide and manual for FT8, HDSDR and omnirig with 6100 by F1TRN 3.5M

Firmware X6100 1.1.16

Official XIEGU firmware V1.1.16 of November 2022 for X6100. 233.18M

Firmware X6100 1.1.17

July 2023 v1.1.17 with wfserver. 332.31M

Data sheet

  • HF/50MHz all modes (AM/FM/SSB) including DATA
  • 10W transmit power with external power source, 5W with internal battery

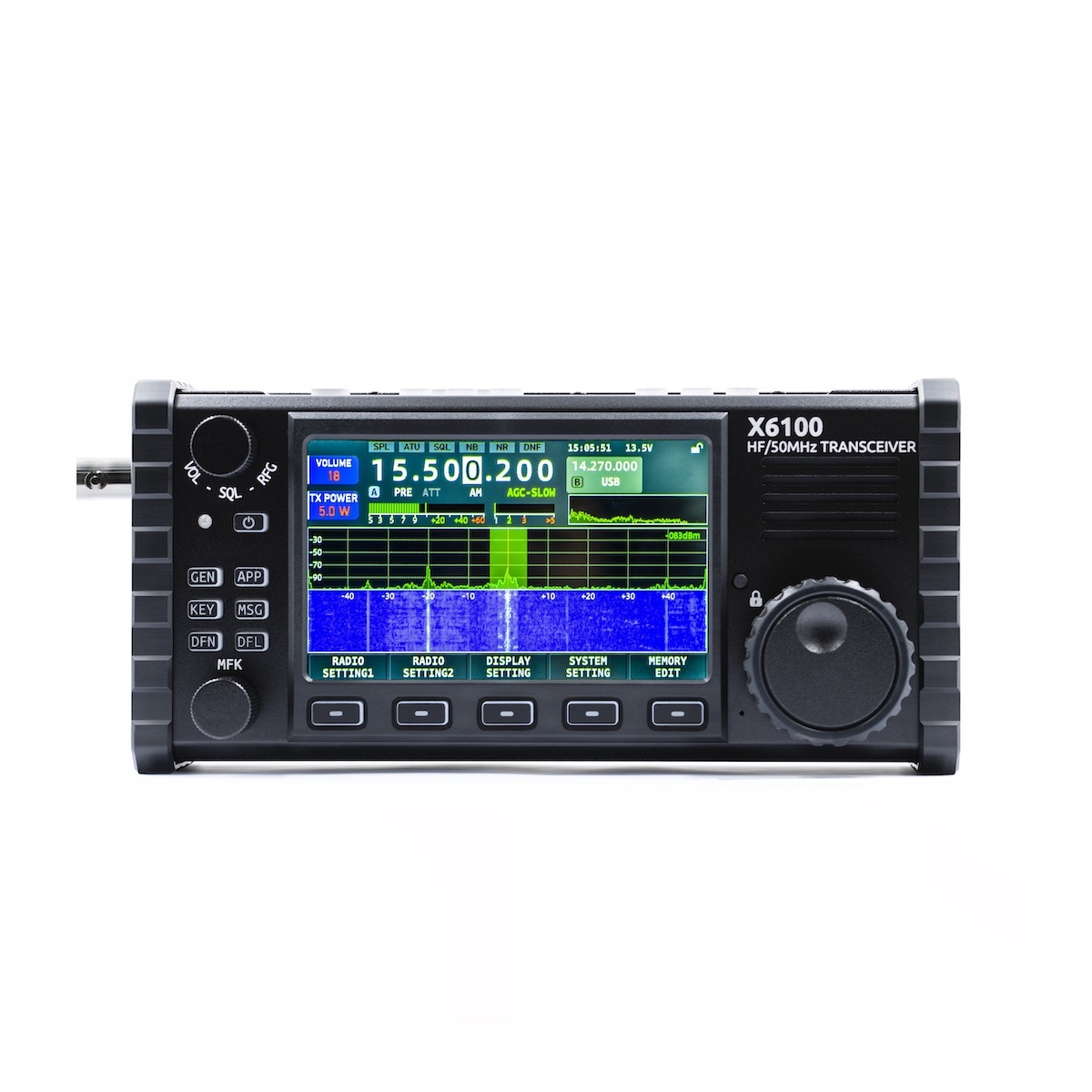

  • 4″ high resolution colour display, 800*480 pixel resolution
  • Built-in rechargeable lithium battery, 7.4V/3.5 Ah
  • Built-in automatic antenna tuner
  • SWR measurement
  • Voice memory
  • CW memory
  • Bluetooth and WiFi support (native for audio, wireless keyboard and mouse)

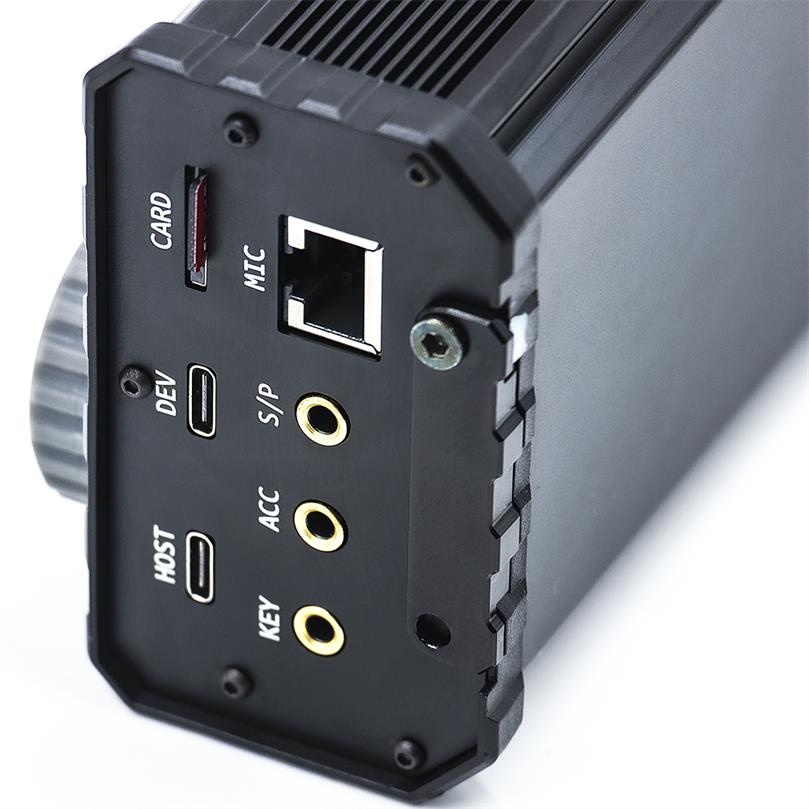

  • Built-in USB adapter with sound card
  • Second USB host port for mouse, keyboard and storage devices
  • High stability TCXO internal clock source
  • Frequency stability: ±1.5ppm within 10~30min after startup @25°C: 1ppm/hour
  • Frequency coverage: 0.5-30+50-54MHz (Transmission in amateur radio bands)
  • Operating modes: USB/LSB (J3E), CW (A1A), FM (F3E),RTTY (F1B), AM (A3E)
  • Minimum frequency step: 1 Hz

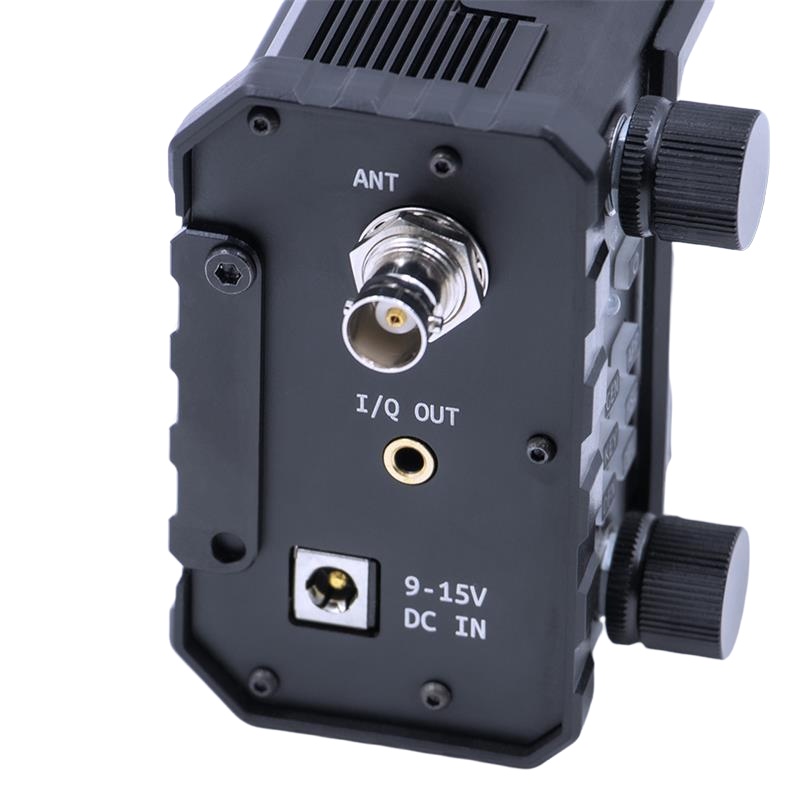

  • External power supply voltage: 9-15V (DC)
  • Frequency stability: ±1.5ppm within 10~30min after startup @25°C: 1ppm/hour
  • Antenna impedance: 50 Ohm
  • Antenna connector type: BNC female
  • Operating temperature: 0C to +50C
  • Current consumption: RX: <330mA, TX: <3A
  • Firmware version installed: 1.1.16

Receiver characteristics:

  • Frequency coverage: 0.5-30+50-54MHz
  • Receiving sensitivity (10dBS/N)
  • (PRE=on, ATT=off, NB=off,NR=off, SSB/CW/AM = 10dB S/N, FM = 12dB SINAD)
  • SSB/CW: 0.20 uV
  • FM 28-30, 50-54 MHz 0.22 uV
  • AM 0.55-1.79 MHz: 10 uV
  • AM 1.8-30 MHz: 2 uV
  • AM 50-54 MHz: 2 uV
  • ADC: 24 bit
  • Spectrum display bandwidth: 96 kHz
  • Spectrum refresh rate: 25 frames/s
  • Spectrum noise floor : -140 dBm
  • Audio output: 0.4W (4 Ohm ≥10% THD)
  • BDR 2kHz (critical frequency suppression): ≥110 dB
  • RMDR: ≥85 dB
  • IMD3: ≥95 dB
  • MDS: -138 dBm

Transmitter characteristics:

  • Frequency range
  • 1.8~2.0 MHz
  • 3.5~3.9 MHz
  • 5.3515~5.3665 MHz
  • 7.0~7.2 MHz
  • 10.1~10.15 MHz
  • 14.0~14.35 MHz
  • 18.068~18.168 MHz
  • 21.0~21.45 MHz
  • 24.89~24.99 MHz
  • 28.0~29.7 MHz
  • 50~54 MHz
  • Output power: 10W (SSB/CW/FM) @13.8VDC
  • 2.5W (AM carrier wave) @13.8VDC
  • Output power, internal battery: 5W
  • 1.5W (AM carrier wave) @ battery
  • Interference suppression: 1.8~29.6MHz: ≥50dB
  • 50-54 MHz ≥60dB
  • Carrier suppression: ≥50dB
  • SSB frequency response: 300-2700Hz (-6dB)
  • FM modulation swing; +/- 5kHz
  • Microphone impedance: o.2-10k (600 Ohm typical)
  • Antenna tuner tuning impedance range: 1:4.5
  • Initial antenna tuner tuning time: ≥ 15s
  • Antenna tuner memory recall time ≥ 0.2s
