Diamond Antenna SRH770S 70cm 144/430Mhz Diamond Antenna Handheld DIAMOND-SRH770-572

View larger

Reference: DIAMOND-SRH770-572

Condition: New product

Diamond Antenna SRH770S 70cm 144/430Mhz

1 question about the product

No review at the moment

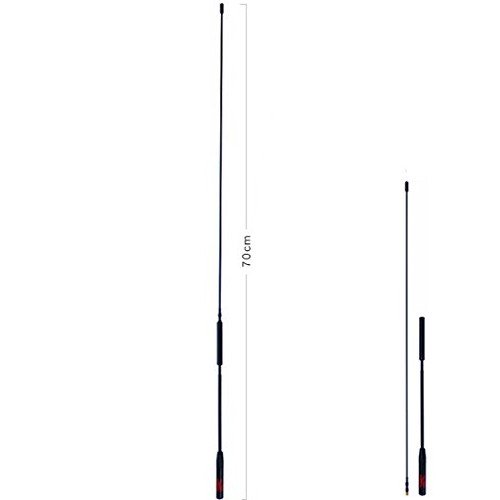

This very large antenna SRH770S Diamond measures 70cm, it is composed of 2 parts that are screwed to each other, for amateur radio walkie-talkie 144/430Mhz with female SMA connector.

Delivered with: Genuine SRH770S Diamond Antenna with SMA male connector, manufacturer's original warranty (direct import from Japan).

More details

More info

Diamond SRH770S Specifications

RX and TX Frequency: 144-146Mhz and 430-440Mhz
Antenna type: 3/8 wave in VHF and 3/4 wave UHF
Gain: 2.15dBi in VHF and 4.5dBi in UHF
Length: about 70cm
ROS: <1.5
Weight: 45g
Impedance: 50 ohms
Max power : 10W max. FM
Antenna connector: SMA-Male

Manufacturer's original warranty (direct import from Japan).

Questions

Send us your question

Angélo on 2020-04-14	Question: Cette antenne fonctionne-t-elle avec un seul brin monté ou uniquement avec les deux brins montés ?
	Answer: L'antenne Diamond SRH770S requiert bien que le 2 brins soient montés pour fonctionne correctement à la fois en réception et en émission.
