XIEGU GSOC controller for G90 and X5105 transceivers View larger

Xiegu

XIEGU-GSOC-1625

New product

China

XIEGU GSOC controller for G90 and X5105 transceivers

rating No review at the moment

The Xiegu GSOC is an advanced controller with an adapter panel for G90 and X5105 transceivers.

It has a large, high-resolution touchscreen and allows you to expand the features and functionality of your G90 and X5105 transceiver. Its main processor is an ARM Cortex A7 and it has 1GB of RAM and 4GB of eMMC storage. The secondary CPU is a Cortex-M3 which is an I/O controller that handles GSOC buttons, encoders, etc.

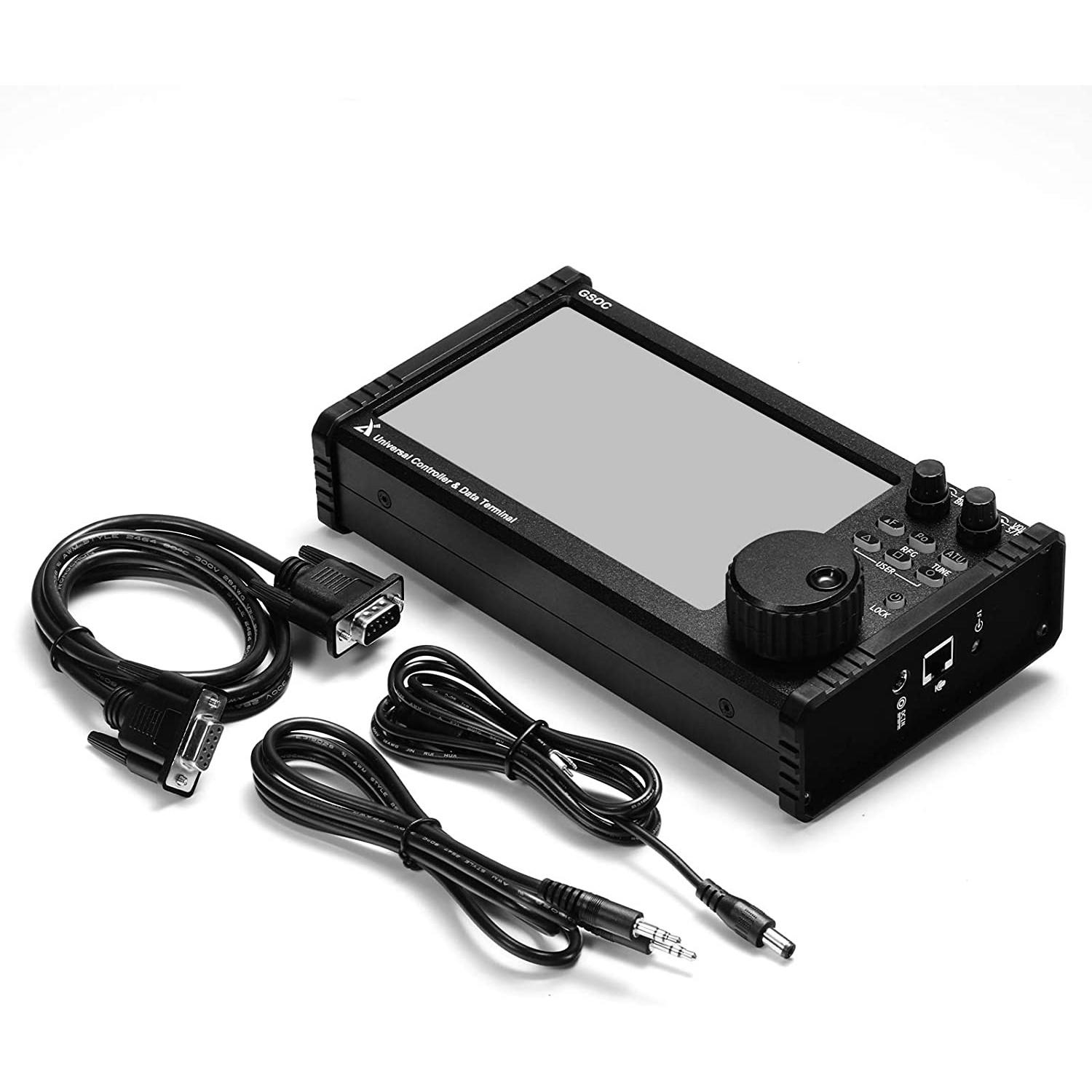

Supplied with: 1 Xiegu GSOC, power cable, 1 I/Q cable for G90, 1 connection cable for G90.

More details

This material is no longer available

Data sheet

Two integrated sound cards, one from 24 bits to 192 ksps and the other from 8 to 32 bits to 8 to 48 ksps. Both are stereo compatible and allow easy processing of digital modes. encoding in the I/Q and basic audio domains.

A 64-PPR optical encoder for the main knob was manufactured by Xiegu using CNC equipment and is made of brass and stainless steel. The heavy-duty VFO button is made of aluminium alloy with a rotating tip. The GSOC has two coaxial encoders with push buttons, both of which can be multi-function buttons. In addition to the backlit RIT, Power and ATU quick access buttons, the GSOC has three user-customisable push buttons.

The GSOC uses a private Xiegu communication protocol and is not a CI-V based controller/pan-adapter. It can however be configured as a network controller. However, it can be configured as a CI-V controller using a USB-serial cable.

It has an I/Q input port and an IF input port, making it versatile.

Features :

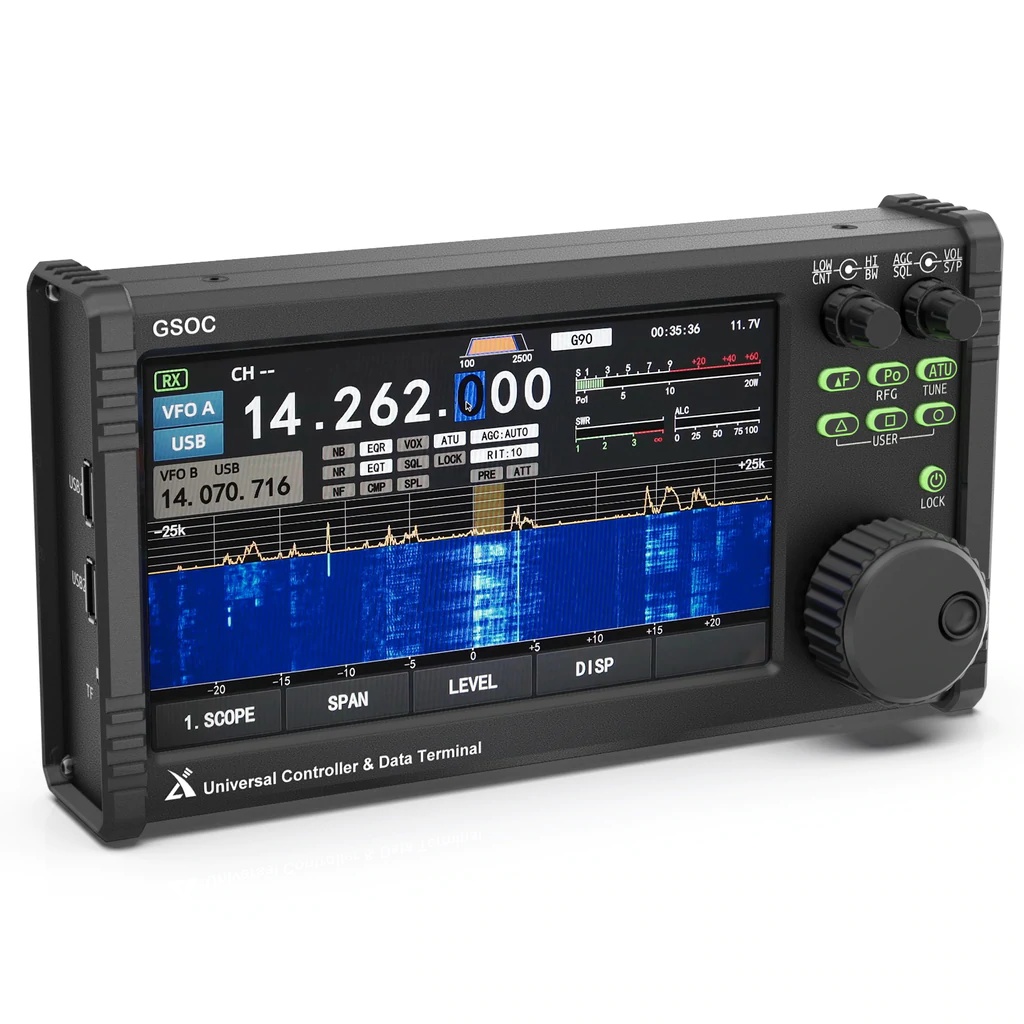

  • 7-inch 1024*600 high resolution colour touch screen LCD
  • Spectrum and waterfall display with a range of up to 192 kHz
  • Two built-in sound cards
  • 24-bit @192 ksps
  • 3-32 bit @8-48 ksps
  • DVR, digital voice recorder
  • Send/receive CW and data modes (requires USB keyboard)
  • Adds RF gain control to the G90
  • Output power control
  • Adds FM mode to the G90
  • Controls ATU
  • Adds RX and TX equalization
  • User definable controls
  • I/Q and IF inputs
  • USB/SD card connection
  • Wifi and Bluetooth support
