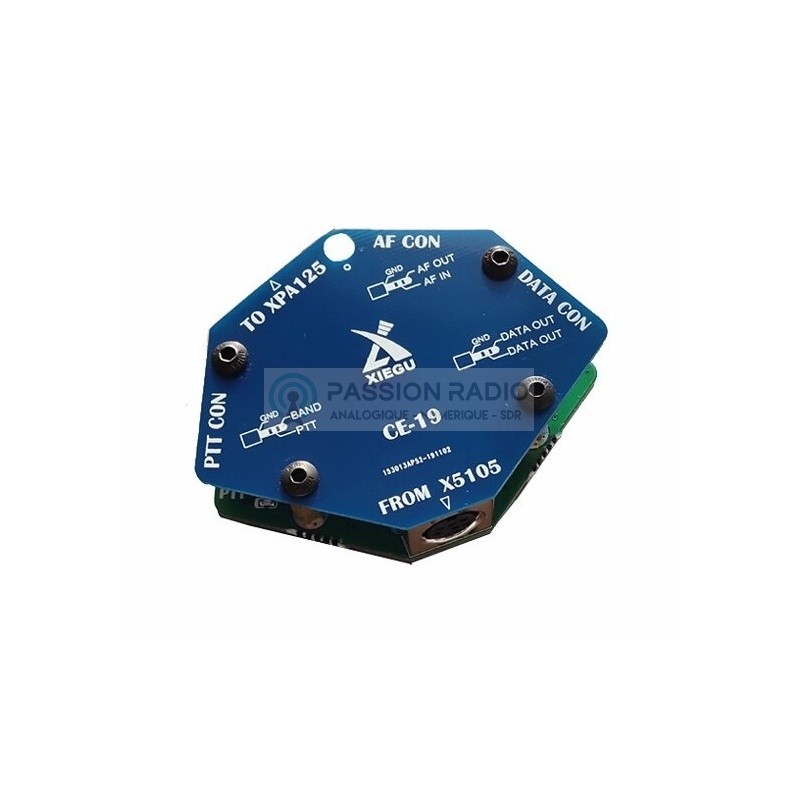

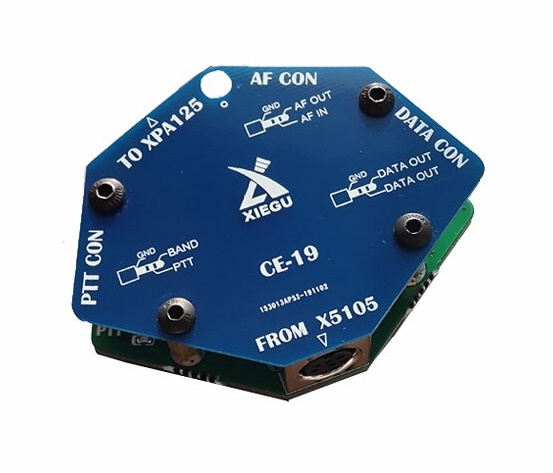

Xiegu CE-19 DIGI FT8 expansion port for X5105 and G90

The Xiegu CE-19 extension port makes it easy to connect a PC or other terminals and modems to use the digital modes SSTV, RTTY, ROS, PSK31, FT8, FT4, etc.

The card allows you to extend the MINI-DIN8 interface of the Xiegu X5105 or G90 to 3.5 mm stereo sockets.

This card also allows you to extend the MINI-DIN6 interface of the XPA125 amplifier independently, so that you can simultaneously connect a PC and a linear amplifier.

Any third party hardware requiring a PTT input can be connected to the PT-CE-19 output. An on-board relay separates and amplifies to protect your X5105 or G90 transceiver.

A yellow LED indicates that the CE-19 is powered and a red LED lights up when the PTT is active.

Supplied with: 1 Xiegu CE-19 extension port, 1 mini-DIN8 cable, 1 cable with 3.5 stereo connector with bare end and 3 connectors Jack 3.5mm.

Download

Connection diagram CE-19

2.17M

Tutorial CE-19 for G90 & X5105

Configuration tutorial for connecting the CE-19 expansion port for Xiegu G90 and X5105. 211.93k
