IP67 waterproof case for Helium HNT Nebra and Raspeberry Pi RF hotspot View larger
Nebra

NEBRA-BOITIER1-NBR-0005-1529

New product

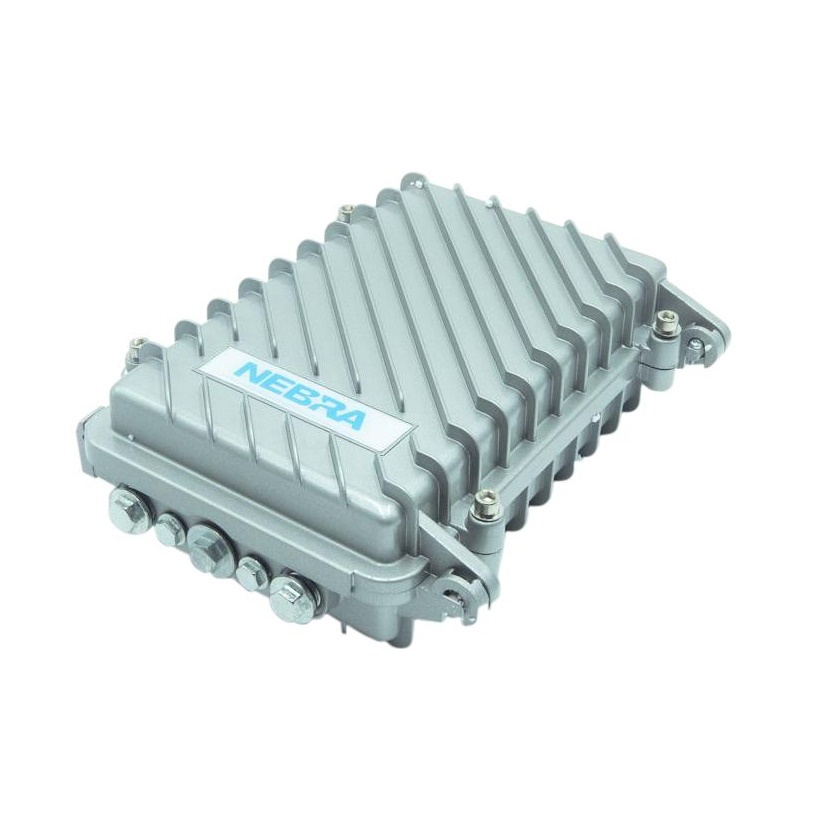

IP67 waterproof case for Helium HNT Nebra and Raspberry Pi RF hotspot

rating No review at the moment

Nebra IP67 waterproof and weatherproof enclosure for outdoor use, Raspberry Pi based RF mount, compatible with Nebra helium hotspot (not included) and LoRa HAT IoT gateway for Raspberry Pi.

Heavy duty double hinges with captive screws. For N-type antenna connectors, up to 5 antennas possible for use on a relay or smart multi-band or MIMO antenna applications.

NEMA-67 rated, this Nebra helium hotspot box offers complete protection against the penetration of dust as well as protection, including against submersion under water.

Supplied with: 1 Nebra IP67 case for Nebra helium hotspot.

More details

This material is no longer available

Data sheet

  • 1 Ethernet hole and 5 N-type holes
  • Sealing of the housing IP67
  • Operating temperature: -60C to + 230C
  • Heat trap: + 6.5 ° C in full sun (~ 100,000 Lux)
  • Temperature increase using a 5-10Watt heat source: + 5.5 ° C
  • Internal dimensions: 210 mm x 130 mm x 50 mm
  • External dimensions (without connectors): 235mm x 155mm x 75mm
  • Weight with mounting brackets: 1.4 Kg
  • Wall thickness: 5mm
  • Supports masts: up to 50mm in diameter
  • Hotspot miner Helium HNT not included
