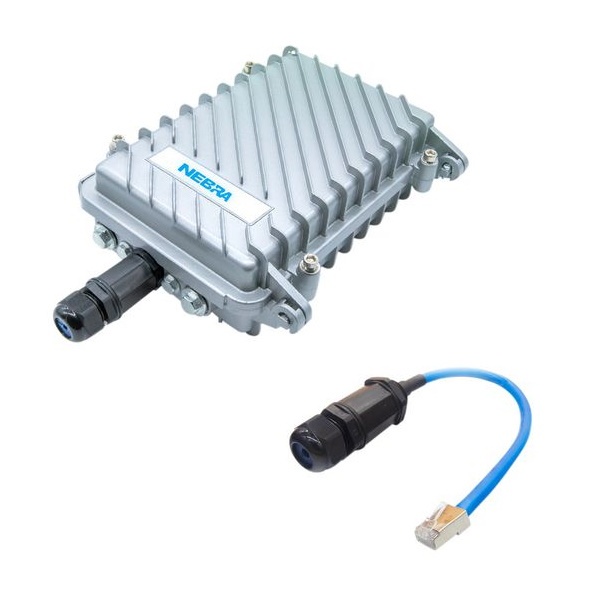

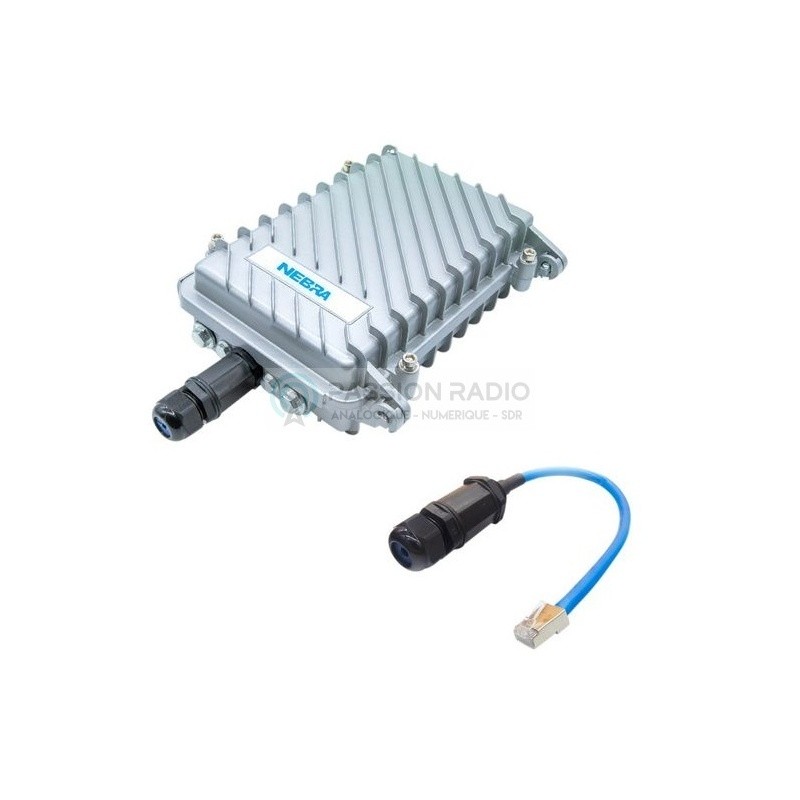

Nebra Helium HNT RPi hotspot IP67 waterproof case with Ethernet pass-through

Nebra IP67 waterproof case with Ethernet pass-through for outdoor use, compatible for example with the helium Nebra hotspot and LoRawan HAT IoT gateways for RPi for example.

For N type antenna connectors. Heavy duty double hinges with captive screws.

NEMA-67 rated, this Nebra helium HNT miner box offers protection against the ingress of dust and water.

Supplied with: 1 IP67 Nebrapour helium or Rpi hotspot box, with Ethernet connection.

More details

Data sheet

1 Ethernet hole and 5 N-type holes
Sealing of the housing IP67
Operating temperature: -60C to + 230C
Heat trap: + 6.5 ° C in full sun (~ 100,000 Lux)
Temperature increase using a 5-10Watt heat source: + 5.5 ° C
Wall thickness: 5mm
With Ethernet pass-through
Supports masts: up to 50mm in diameter
Internal dimensions: 210 mm x 130 mm x 50 mm
External dimensions (without connectors): 235mm x 155mm x 75mm
Weight with mounting brackets: 1.5 Kg
