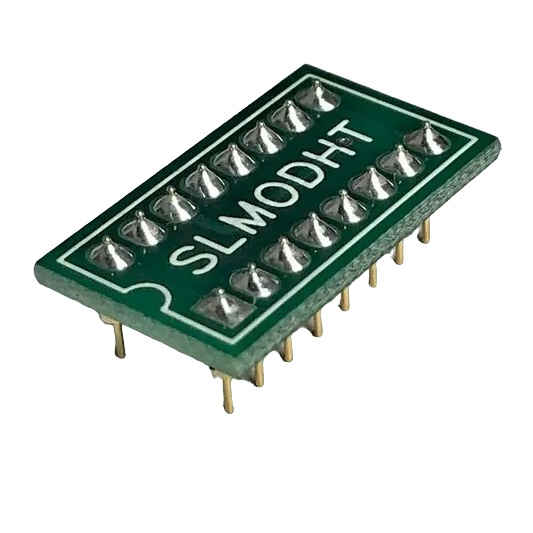

Signalink SLMODHT jumper module for ICOM IC-705

No review at the moment

This jumper module is compatible with the QRP ICOM IC-705 mobile and the radio cable with reference: SLCAB705.

Supplied with: 1 Signalink SLMODHT jumper module.

More details

Data sheet

ICOM
IC-1201/1271/1275
IC-22U / 25/27/28
IC-228/229 / 251AE
IC-255/260/271/290
IC-2400/2500
IC-37A / 38A / 375
IC-3200/3210/3220
IC-45/47/48
IC-471/475/490
IC-505/551/560/575
IC-707/718/720/725/726
IC-728/729/730/735
IC-736/737/738/740/745
IC-746 / 746PRO
IC-756 / 756PRO
IC-756PROII / PROIII
IC-7300/7400/7700/7800
IC-751/761/765/775/781
IC-820H / 901/910

PWR / SPKR Jumper Settings - To maintain compatibility with as many radios as possible, this jumper module has two small jumpers that can be set to activate power and the audio speaker.

PWR - This jumper is * NOT * used with the SignaLink USB, but can be installed to power the older SignaLink SL-1 or SL-1 + model from your radio if there is sufficient power available on it. Mic connector pin # 2 (check your radio manual).

SPKR - This jumper should only be installed if your radio has an audio speaker on pin # 8 of the Mic jack (check your radio manual). If the audio speaker is not available, you will need to connect an audio cable between the radio and the SignaLink as described in the SignaLink installation manual.
