Signalink radio cable SLCAB705 right-angle microphone socket for IC-705 ICOM

View larger

Display all pictures

Manufacturer: Tigertronics

Reference: SIGNALINK-CABLE-SLCAB705-2410

Condition: New product

Country of origin:

U.S.A

Signalink radio cable SLCAB705 right-angle microphone socket for IC-705 ICOM

No review at the moment

The Signalink SLCAB705 radio interface cable can be used with the Signalink USB sound card and the ICOM IC-705.

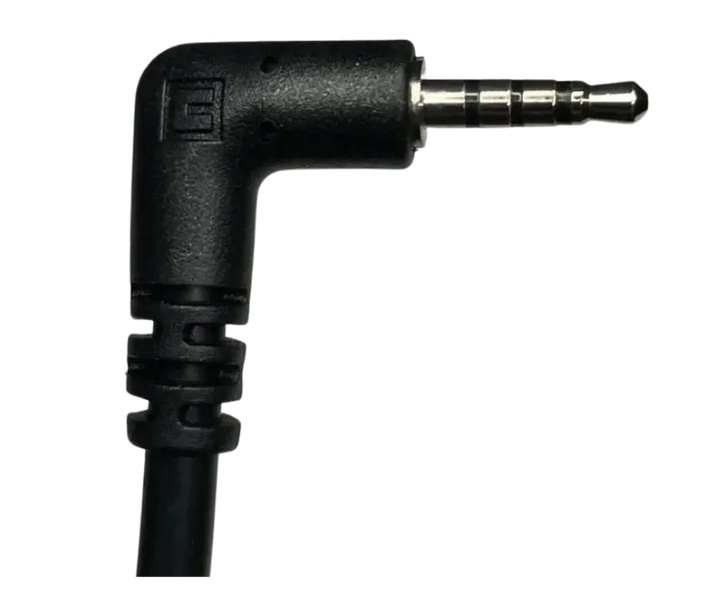

This radio cable has a right-angle microphone plug and an RJ45 socket.

The jumper module compatible with this cable is part number: SLMODHT

Supplied with: 1 Signalink SLCAB705 radio cable.

More details

Data sheet

Alinco (SLMODR4I)

DR-605E

DR-605T

DR-735E

TK-2100

Icom (SLMODR4I)

IC-207H

IC-208H

IC-281A

IC-281E

IC-281H

IC-704

IC-706

IC-706MKII

IC-706MKIIG

IC-2000

IC-2100H

IC-2200H

IC-2300H

IC-2700

IC-2720H

IC-2730A

IC-2730E

IC-2800

IC-2820

IC-7000

IC-7100

IC-F121

IC-V8000

ID-800H

ID-880

ID-4100A

ID-4100E

ID-5100A

ID-5100E

Kenwood (SLMODR4K)

TK-90

TK-863G

TK-7102H

TK-7108HM

TK-7108M

TK-7160E

TK-7160HM

TK-7160M

TK-7162E

TK-7180E

TK-7189E

TK-8108HM

TK-8108M

TK-8160E

TK-8160M

TK-8162E

TK-8180E

TK-8189

TM-251

TM-255

TM-261

TM-271 **

TM-271A **

TM-281

TM-451

TM-455

TM-461

TM-481A

TM-641

TM-642

TM-732

TM-733A

TM-741

TM-742

TM-941

TM-942

TM-D700

TM-D700A

TM-D710

TM-D710A

TM-D710E

TM-D710G

TM-D710GA

TM-G707

TM-V7A

TM-V71A

TM-V71E

TM-V708

TS-480HX

TS-480SAT

Yaesu (SLMODR4Y)

FT-450

FT-600

FT-817

FT-817ND

FT-858

FT-857D

FT-898

FT-897D

FT-900

FT-992

FT-991A

Anytone

AT-578UV V1 and V2

SignaLink jumper settings for the AT578 :

G - 8
PTT - 1 (via a resistor from 1.5Kohm to 2.2Kohm, see PTT** note below
MIC - 6
SPK - Do not install this jumper wire, see SPK*** note below

PTT**: A 1.5Kohm to 2.2Kohm resistor is required instead of the normal jumper wire, otherwise you may damage the radio. Use only a 1/4 watt resistor, as it has the correct size wires to connect to the SignaLink jumper, a larger resistor will damage the plug. Also as noted on http://members.optuszoo.com.au/jason.reilly1/578mods.htm#Microphone, the radio must have VOX detection enabled or the PTT will not work.

SPK***: The microphone jack on this radio uses differential audio which cannot be used with Signalink, otherwise you will damage the radio's audio amplifier. Instead, attach the supplied audio cable between the SignaLink's SPKR jack and one of the radio's external speaker jacks.
