Automatic antenna tuner mAT-705 for ICOM IC-705 transceiver

View larger

Display all pictures

Manufacturer: MAT-TUNER

Reference: MTUNER-MAT-705PLUS-1612

Condition: New product

Country of origin: China

Safety Information +

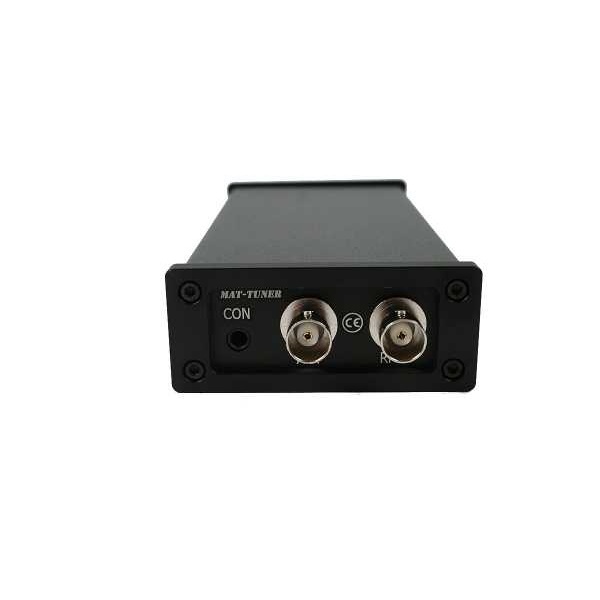

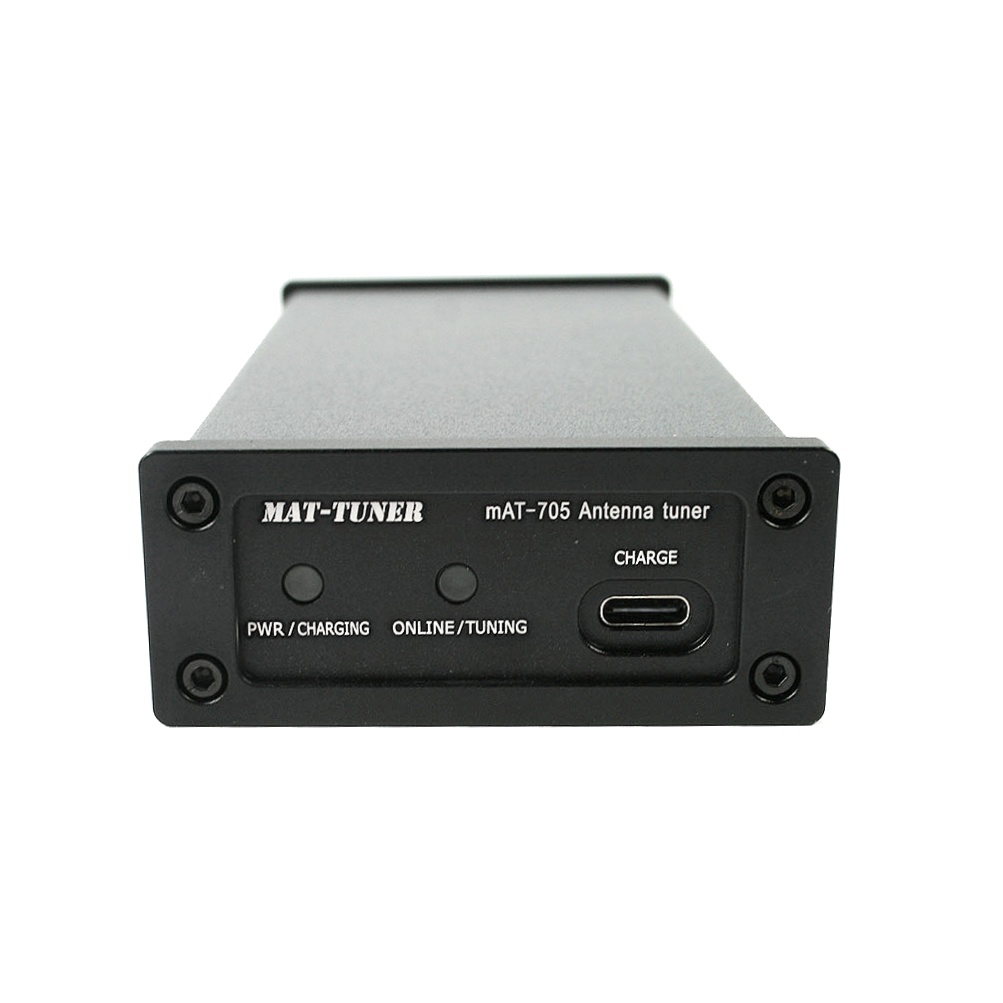

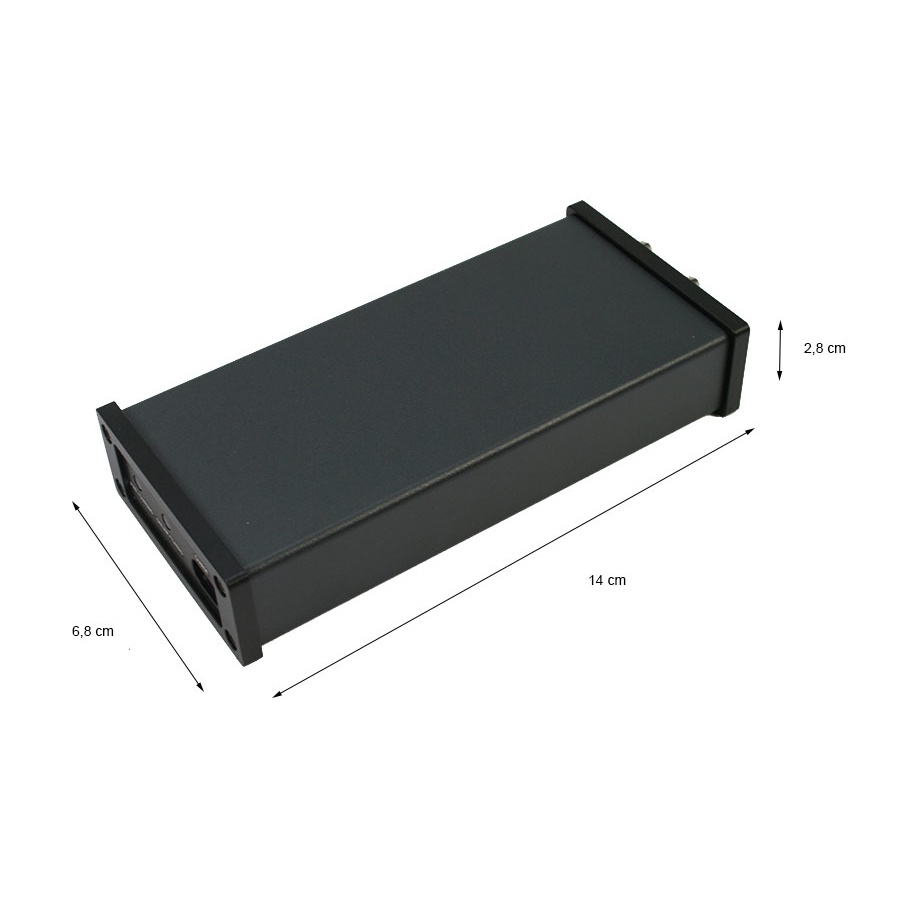

Automatic antenna tuner mAT-705 Plus V2 MAT-TUNER for ICOM IC-705 QRP

Read the 6 reviews

Average rating: 5/5 Number of reviews: 6

The mAT-705Plus automatic antenna tuner is designed for the Icom IC-705 transceiver and can operate in the range of 1.8MHz to 54MHz.

It is powered by two built-in lithium batteries, and can be charged by a USB power adapter.

It can tune dipoles, verticals, Yagis, or virtually any coaxial fed antenna. It fits a wide range of antennas and impedances.

Includes: 1 mAT-705 tuner and 1 control cable

More details

Download

Manuel d'utilisation mAT-705P FR

382.88k

Manuel d'utilisation mAT-705P EN

215.43k

Data sheet

Frequency range: 1.8 to 54 MHz
Impedance range: 5 to 1500 Ω
Setting time: 5 seconds or less
Memory: 16000 channels
Load voltage: 4.5-5.5V, TYPE-C
Charging current: Maximum 0.7 A, typically 0.5 A or less
Lithium battery: 3.7V 530mAh, 2pcs
Operating temperature : -10°C ~ +50°C
Magnetic latching relays are used inside the tuner to save power.

The mAT-705Plus automatic antenna tuner responds to the control commands of the IC-705 transceiver, providing microprocessor-based impedance matching on the amateur bands from 160 to 6 metres. On the HF and 50 MHz bands, the impedance matching range is from 5Ω to 1500Ω. The tuner comes with a control cable.

The mAT-705Plus has 16,000 frequency memories. When tuning to or near a previously tuned frequency, the mAT-705Plus uses the "Memory Tune" function to recall the previous tuning parameters in a fraction of a second.

If no stored parameters are available, the tuner performs a full tuning cycle, storing the parameters for recall into memory on subsequent tuning cycles to that frequency. In this way, the mAT-705Plus "learns" as it is used, adapting to bands and frequencies as it goes.

The new version of the tuner eliminates the mechanical power switch. Its power supply is automatically controlled by the transmitter. After plugging in the control cable, it turns on and off with the transmitter, without the need for manual switching on and off.
