Komunica SX-201 SWR and Watt Meter 1.8-200 MHz View larger

Komunica

KOMUNICA-SX201-1662

New product

Spain

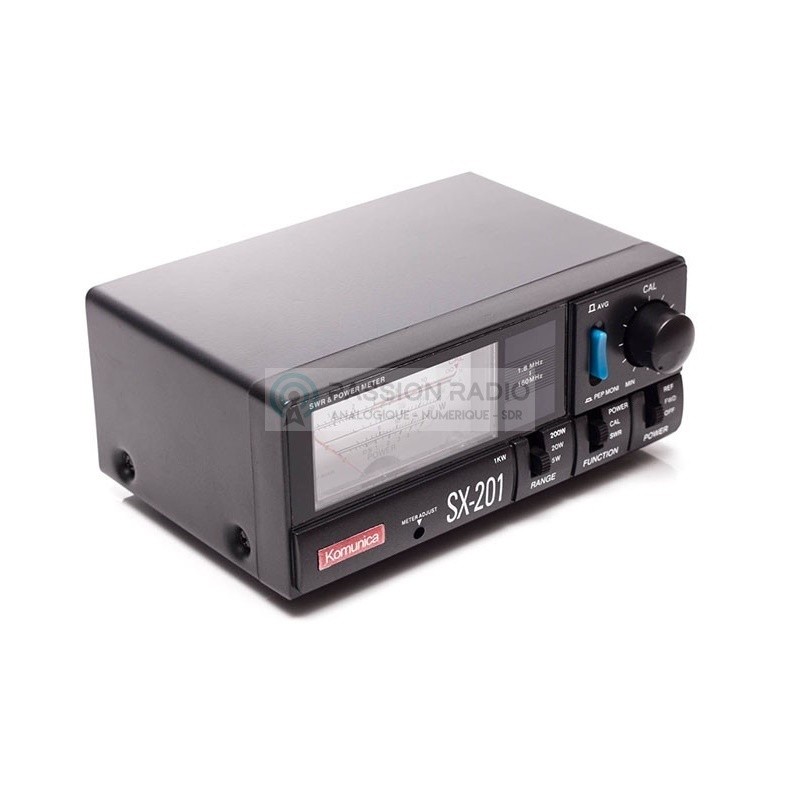

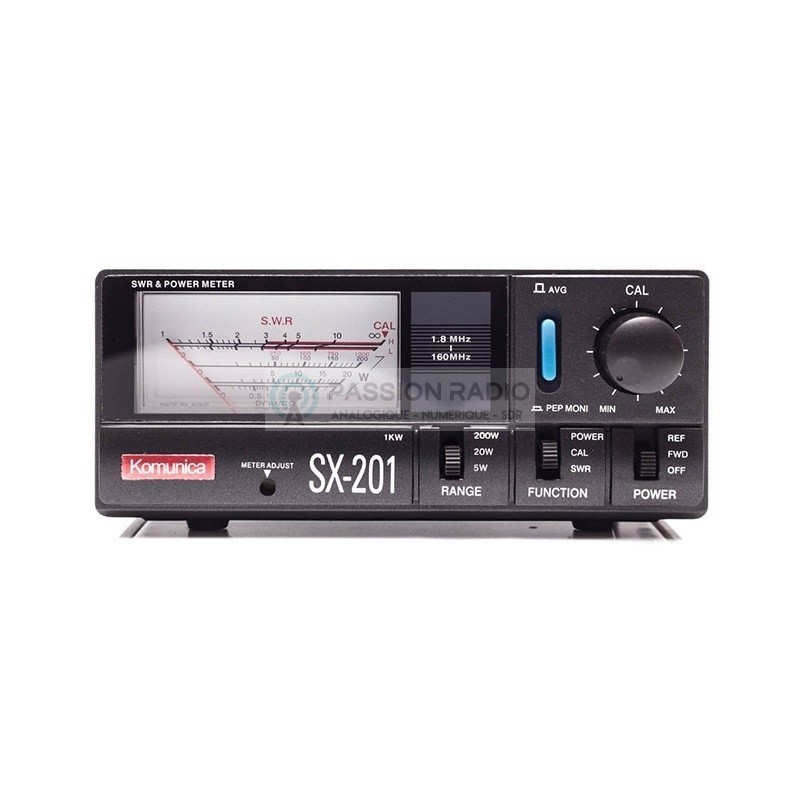

Komunica SX-201 Power Meter and Tosmeter 1.8 to 200 MHz 400W

rating Read the review
Average rating: 5/5 Number of reviews: 1

The Komunica SX-201 VSWR Meter allows the measurement of VSWR for frequencies from 1.8 to 200 MHz with a power up to 200 Watts (HF).

Supplied with: 1 SX-201, 1 12V power cable.

More details

119,00 € tax excl.

In stock

   2 Items

Data sheet

  • Frequency range: 1.8 to 200 MHZ
  • Power measurement range: 0.5 to 400W (5W/20W/200W/1KW) HF band
  • Minimum input power: 0.5W
  • Accuracy: 5W range ±5%, 20W range ±7.5%, 200W range ±10%, 400W range ±12.5%, 1KW range ±15%.
  • Input impedance: 50 ohms
  • Insertion loss: 0.2db

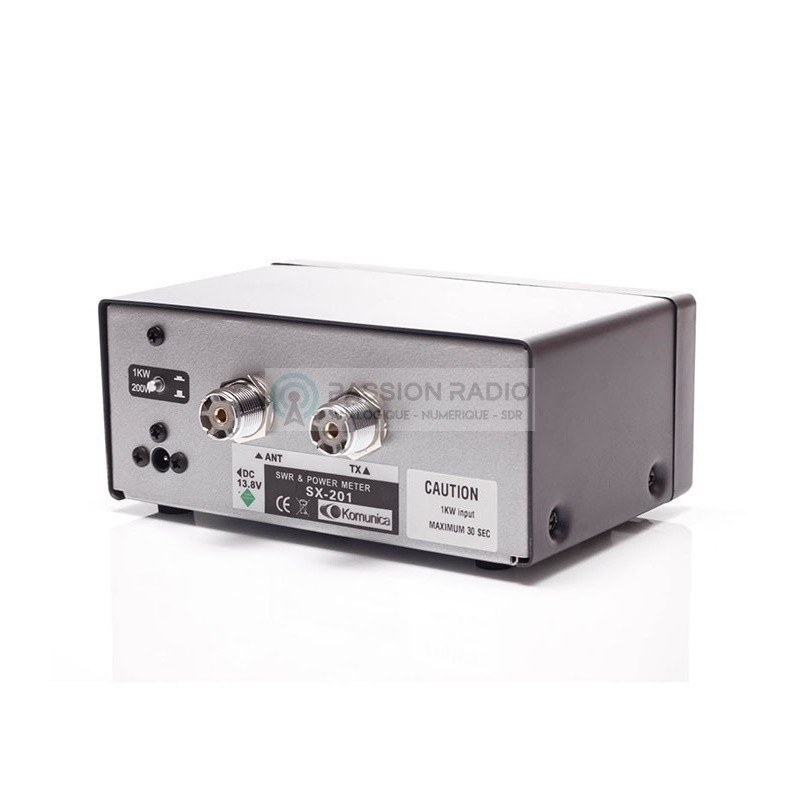

  • Connector: SO239 (UHF female)
  • Dimensions : 8,5 X 8,7 X 9,5 cm
  • Weight : 630gr
  • SWR : 1 to infinity
  • Power supply : 12V DC



Reviews

Click here to leave a review

rating 5
avis

Matériel impeccable.
