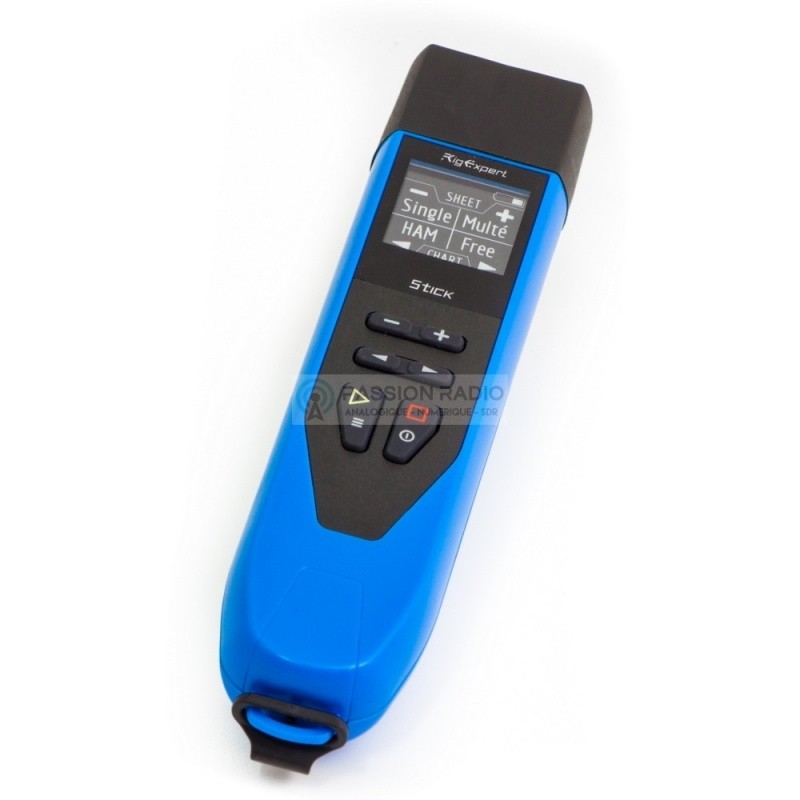

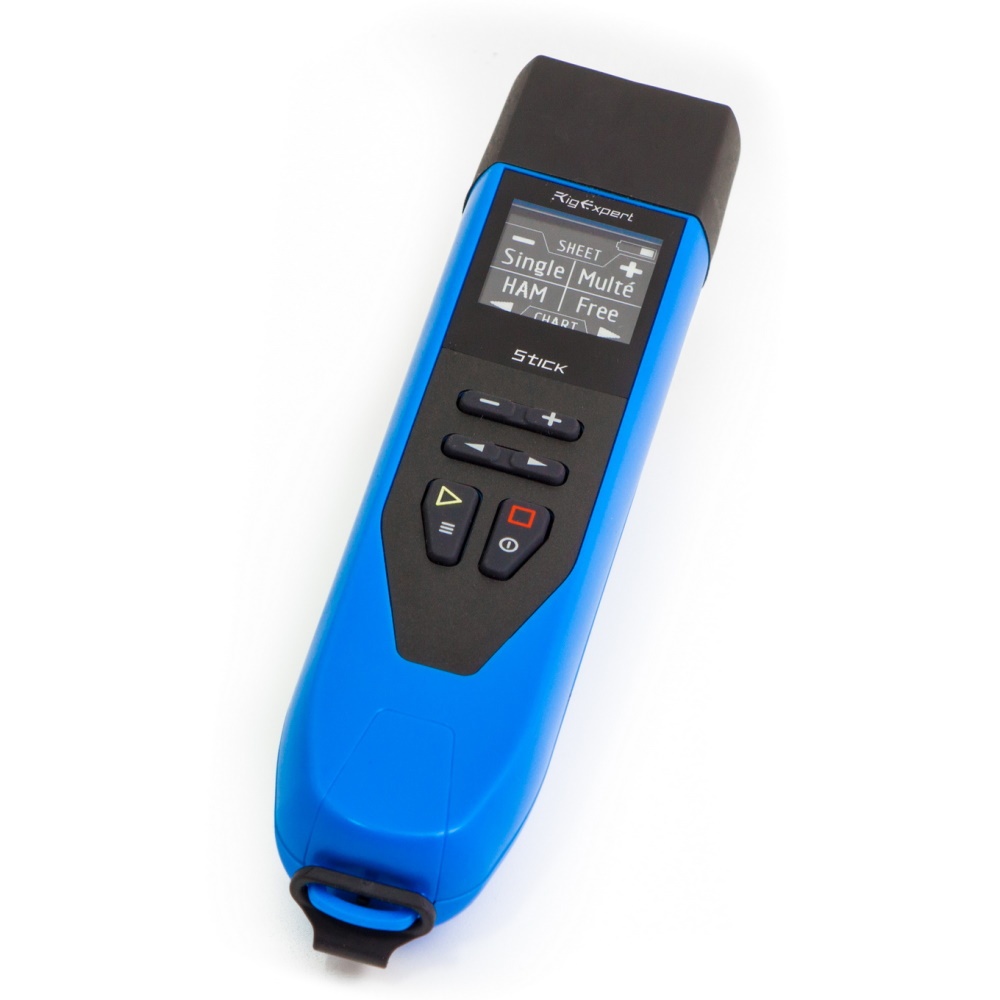

RigExpert Stick 230 antenna analyzer from 0.1 to 230 Mhz

No review at the moment

The RigExpert Stick-230 antenna analyzer is designed to measure SWR (standing wave ratio), return loss, and other parameters of cable and antenna systems in the 100 kHz range at 230 MHz .

It has an autonomy of 16 hours of continuous measurements without recharging the battery.

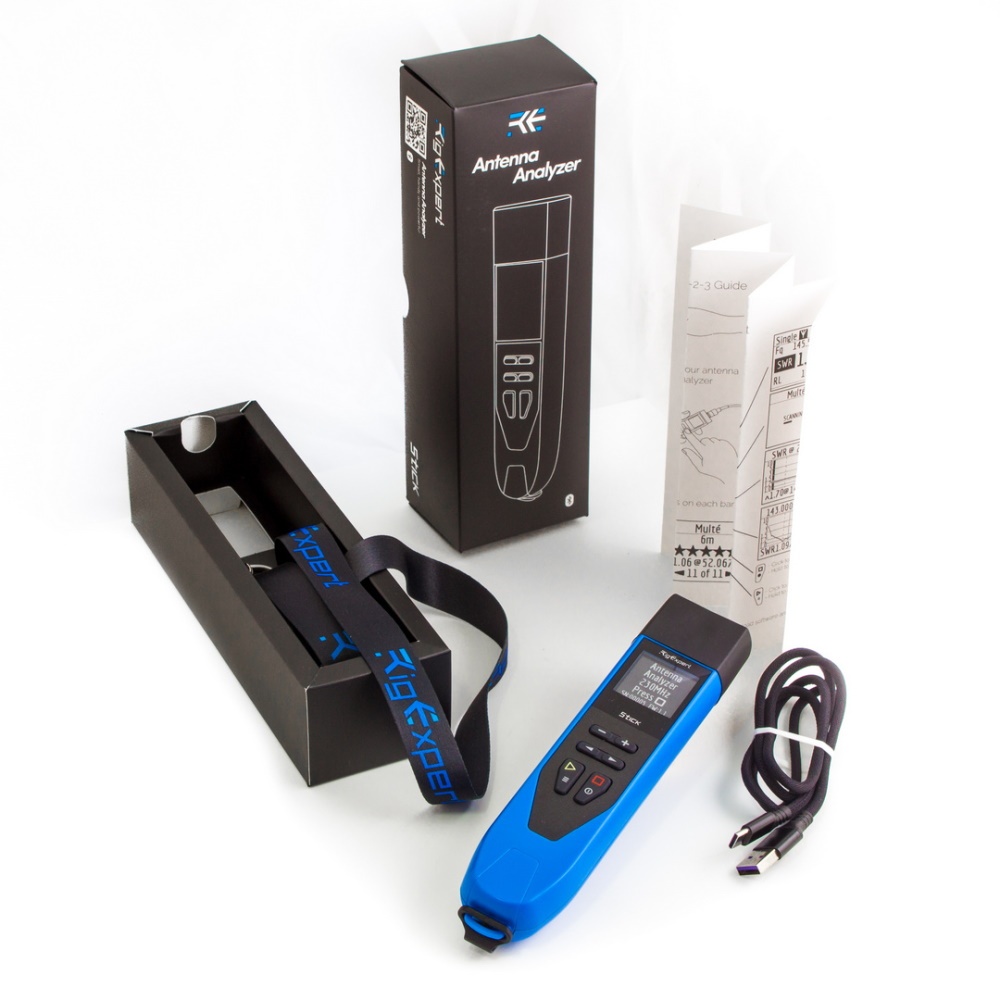

Comes with: 1 RigExpert Stick 230, 1 Li-ion battery type 18650, 1 quick user guide, 1 neck strap, 1 USB cable.

More details

Download

AntScope2 Windows software

44.61M

User manual Stick 230

566.31k

Flashtool RigExpert Software

20.88M

Data sheet

Frequency range: 0.1 to 230 MHz
No frequency input: 1 kHz
Measurements for 25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohm systems
SWR measurement range: from 1 to 100 in digital mode, from 1 to 10 in graphic mode
R and X range: 0 ... 10000, -10000 ... 10000

Operating modes :
SWR, return loss, R, X, Z, L, C, magnitude and phase angle at a frequency.
TOS graph, 100 points.

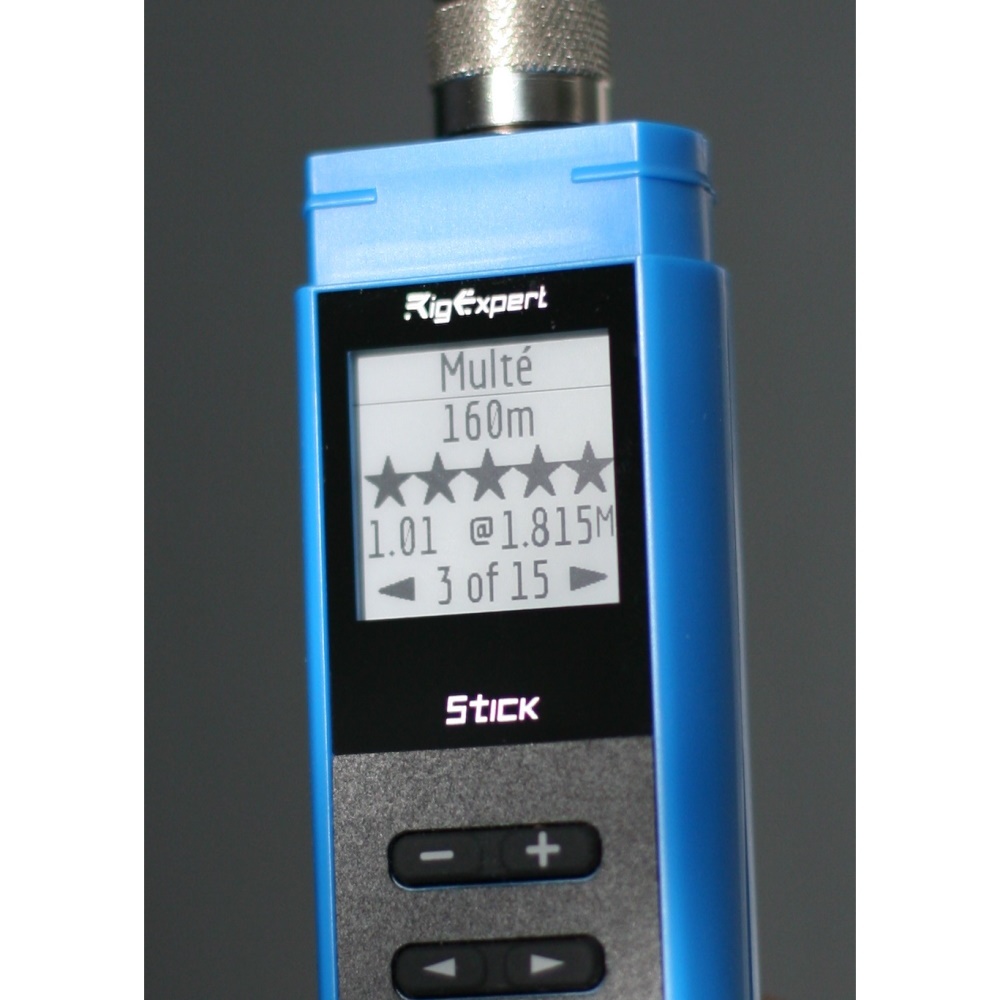

Multé Mode - for quick testing of a multiband antenna.

HF output:
Connector Type: UHF Female (SO-239)
Output signal form: pies, 0.1 to 230 MHz
Output power: -10 dBm (at a 50 Ohm load)

Food :
A 3.7 V lithium-ion battery
When the analyzer is connected to a PC or to a DC adapter with a USB connector, it is powered by the following sources.

Interface:
Monochrome electronic paper screen with a size of 200 × 200
2 × 3 keys on waterproof keyboard
English menu and help screens
USB connection to a personal computer

Bluetooth: v.4.2 BLE singlemode, class B
Dimensions: 185mm x 40mm x 33mm
Operating temperature: 0 to 40 ° C
Weight: 185 g with battery
2 years warranty
CE standards

The RigExpert Stick-230 is made in Ukraine. Specifications are subject to change without notice by the manufacturer.
