> RF adapters & pigtails>Right angle PCB connector SMA Female solder
Connector PCB right angle SMA Female solder Passion Radio RF Cables & Adapters ADAPT-SMA-PCB1-56 View larger
Previous Next

RF KONNECT

ADAPT-SMA-PCB1-56

New product

China

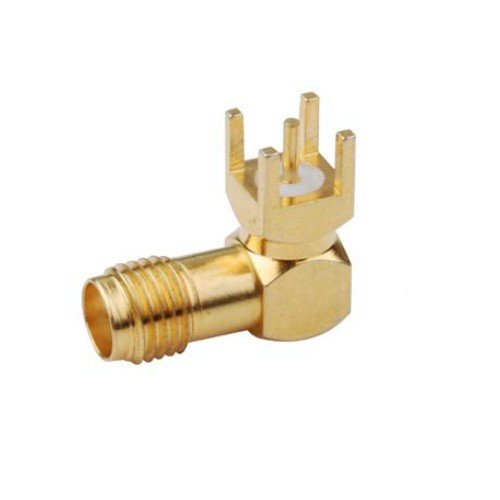

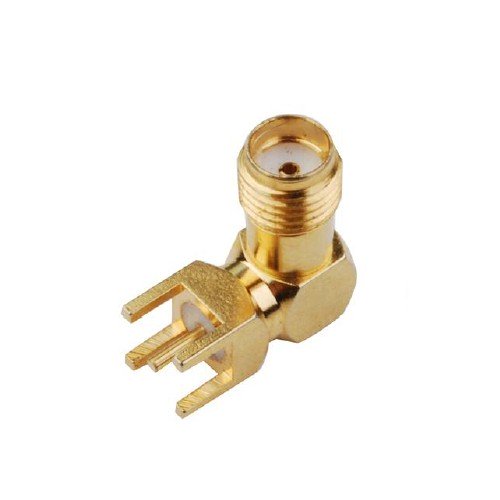

Right angle PCB connector SMA Female solder

rating Read the 3 reviews
Average rating: 5/5 Number of reviews: 3

Right-angle female SMA RF connector, for soldering to PCB.

Operating frequency: 0 to 3 GHz
GOLD-plated brass
Impedance: 50 Ohms

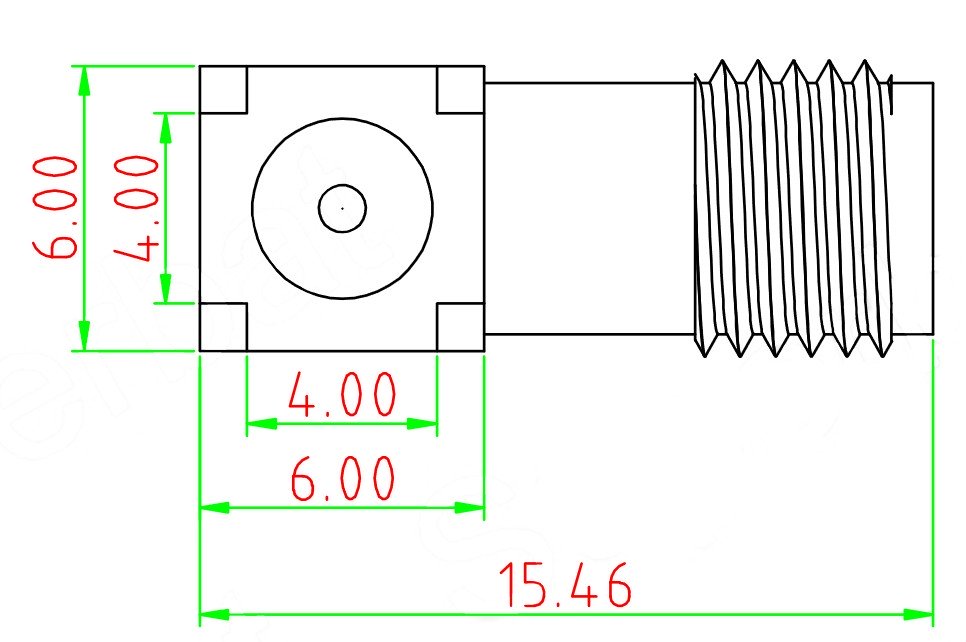

Dimensions: 15.46 x 6 x 6 mm

This RF connector is manufactured in compliance with MIL-C-39012 and CECC 22110/166 standards.

1,70 € tax excl.

In stock

   More than 10 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.
