Demo Kit PCB and RF testboard to assemble for VNA & NanoVNA

View larger

Manufacturer: RF KONNECT

Reference: RFKONNECT-PCB-DEMO-KIT2-1077

Condition: New product

Country of origin:

China

Demo Kit PCB and RF testboard to assemble for VNA & NanoVNA

Read the review

Average rating: 5/5 Number of reviews: 1

This NanoVNA RF demo kit is composed of a PCB to assemble, to perform tests or demonstration of RF integrated circuit (DIP) and SMT (SMT) components.

Adapted to work with vector network analyzer antenna (VNA) and NanoVNA-H or NanoVNA-F, for measurements from 50 KHz to 1500 MHz.

The testboard kit allows VNA users to quickly test DIP or SMD components for RF circuits to assess their performance.

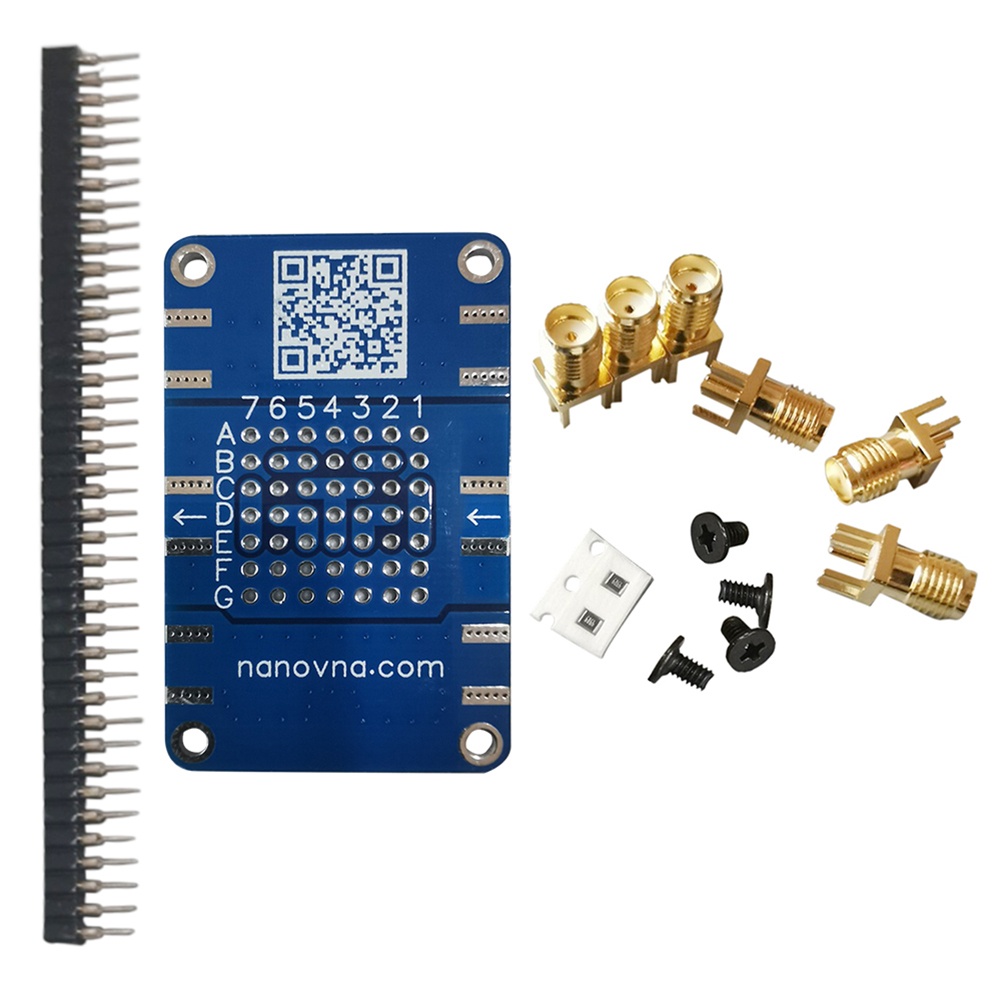

Supplied with: 1 RF PCB test board (30x60mm), 6 female SMA PCB connectors, 4 M2.5 screws, 2 rows 40 pins, 2 0805 and 49R9 calibration resistors.
