Micro-earphone compatible with ICOM 2 Pin

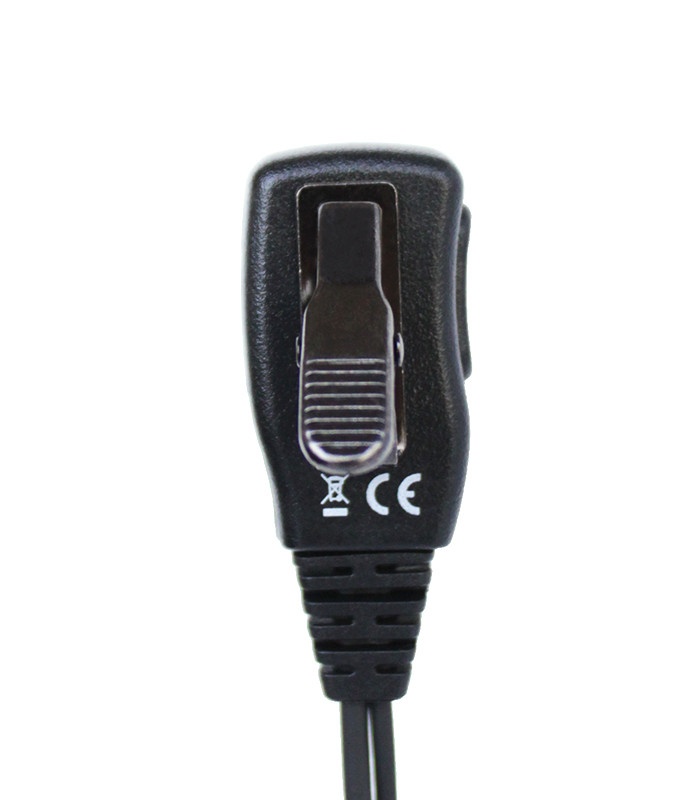

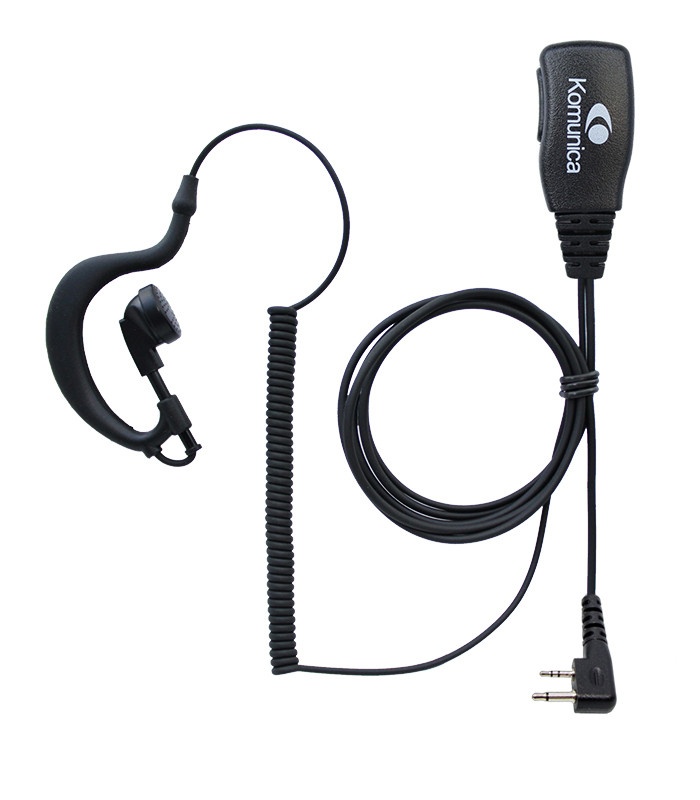

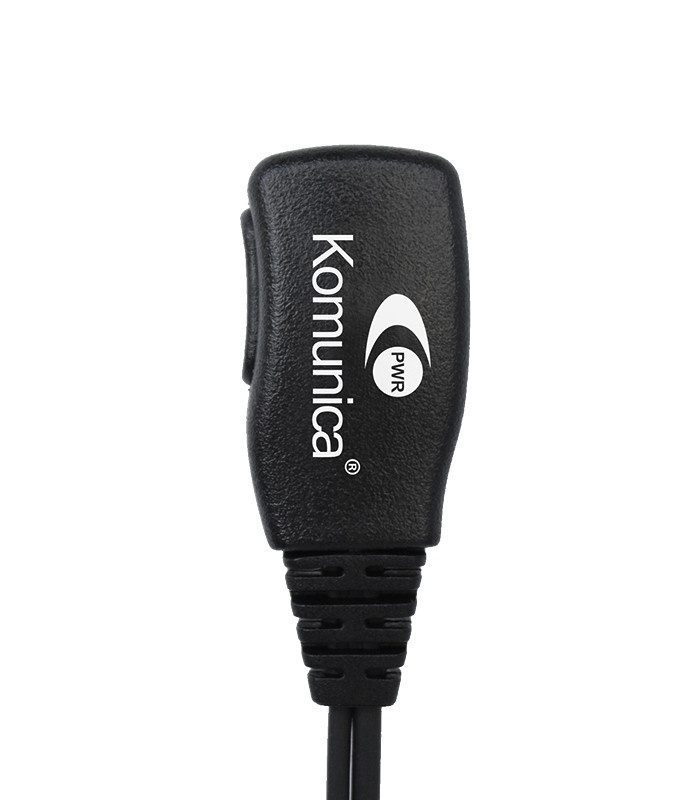

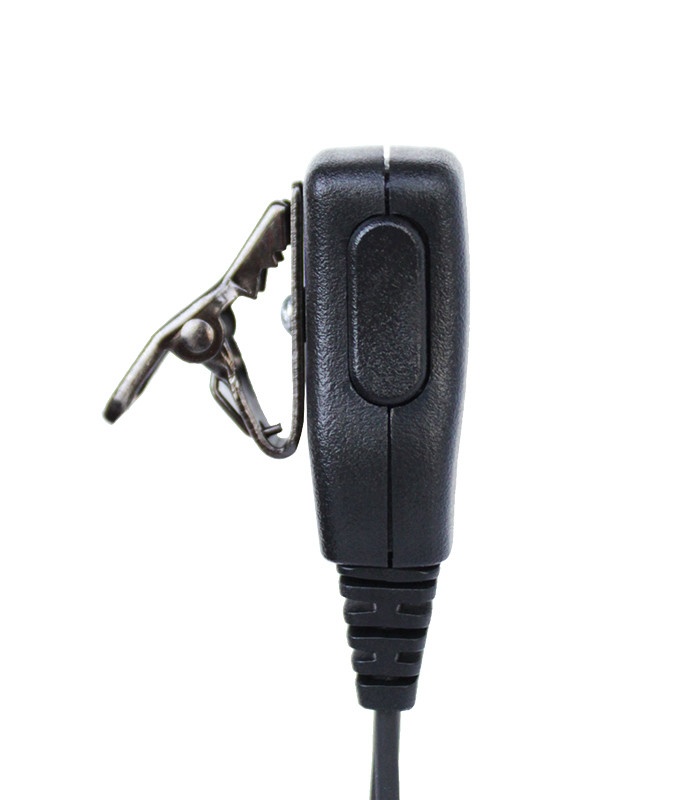

High-quality ear microphones offering excellent audio clarity, with an ear hook, coiled cord and a metal clip to rotate the microphone 360°, compatible with ICOM handheld:
F3G, F3GS, F4G, F4GS, F11, F11S, F33G, F43G, F21BR, F21GM, F24S, F3021, F4021, etc.
Data sheet
Speaker
- Distorsion: <= 5% at 100 Hz – 5 KHz 1mW
- Input Power: Rated: 10mW Max:20mW
- Speaker Sensitivity: 80dB±3dB @ 1kHz
- Rated Resistance: 32 ohms ± 15%
- Working Temperature: -20ºC ~ + 55º
Microphone
- Microphone Type: Electret Microphone
- Frequency Range: 100Hz - 10kHz
- Directivity: Omni-directional
- Sensitivity: <=.2k ohms
- Impedance: -42dB±3dB @ 1kHz
- Working Voltage: 1V~10V
- Working Temperature: -20ºC ~ + 55º
