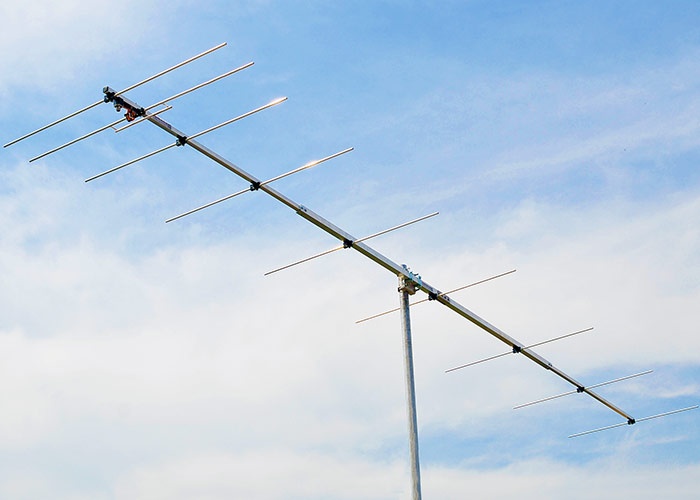

144MHz 9 Elements Lightweight beam Antenna 2m9DXA (AA) for EME & contest

rating No review at the moment

Excellent portable and EME 2m 9 Elements Lightweight Antenna 2m9DX5 from Antennas-Amplifiers.

Low noise design VHF contest and EME in mind was selected when deigned 2m 9Elements Lightweight Antenna 2m9DX5.

Disassembled length for this portable antenna is adjusted for a “Checked Baggage” airplane length of 119 cm.

The highest-class lightweight antenna 2m9DX5 is perfect to take on VHF Contest or EME expedition.

Designed to pass airline luggage restrictions. Excellent low noise design.

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

208,60 € tax excl.

In stock

   4 Items

Data sheet

2m 9Elements Lightweight Antenna 2m9DX5

This antenna is great for terrestrial VHF contests or EME work.

Electrical Specifications:

Frequency Range: 144 – 145 MHz
Free Space Forward Gain: 14.3 dBi
Front-to-Back Ratio: 32 dB
-3 dB Horizontal Beamwidth: 37°
-3 dB Vertical Beamwidth: 40.2°
Polarization: Horizontal
Nominal Input Impedance: 50 Ohms
SWR Across Entire Band: < 1.2
Maximum Power Input: 500W
Matching Method: Direct feed through common mode choke (current balun)
Connector: “N”

Mechanical Specifications:

Number of elements: 9
Element Diameter: 8 mm Aluminum tube
Dipole Diameter: 8 mm Hard Copper tube plastic coated
Longest element: 1040 mm
Element Mounting Position: Below the Boom
Balun and Connector: Included
Boom Length: 4.67 m
Boom Size: Tapered Boom 20x20mm, 30x30mm, 20x20mm
Number of Boom Pieces: 4
Guy rope support: Not necessary. Strong boom
Mounting Mast Diameter: 43 – 70 mm
Survival Wind Speed: 150 km/h
Transportation Length: 1.19 m
Antenna Weight: 4.3 kg

2m 9elements low noise antenna 2m9DXA RA Bracket

2m 9Elements Lightweight Antenna 2m9DX5 RA Bracket

Measured perfect SWR in the whole band

2m 9Elements Lightweight Antenna 2m9DX5 Measured SWR

Horizontal Stacking Distances for F/S -12.5 dB lightweight antenna 2m9DXA:

Two antennas: 3.15m. Gain 17.2 dBi (+2.9 dB)
Four antennas: 3.3m. Gain 20.2 dBi (+5.9 dB)

Vertical Stacking Distances for F/S -12.5dB low noise EME antenna 2m9DXA

Two antennas: 2.95m. Gain 17.2 dBi (+2.9 dB)
Four antennas: 3.05m. Gain 20.2 dBi (+5.9 dB)

Lower gain and a better suppression of all sidelobes. Sometimes good in urban (high noise) areas:

Horizontal stack 2.6 m for gain 16.93 dBi F/S< -18.7 dB
Horizontal stack 2.75 m for gain 17.04 dBi F/S< -16.5 dB
Vertical stack 2.5 m for gain 16.95 dBi F/S< -17 dB

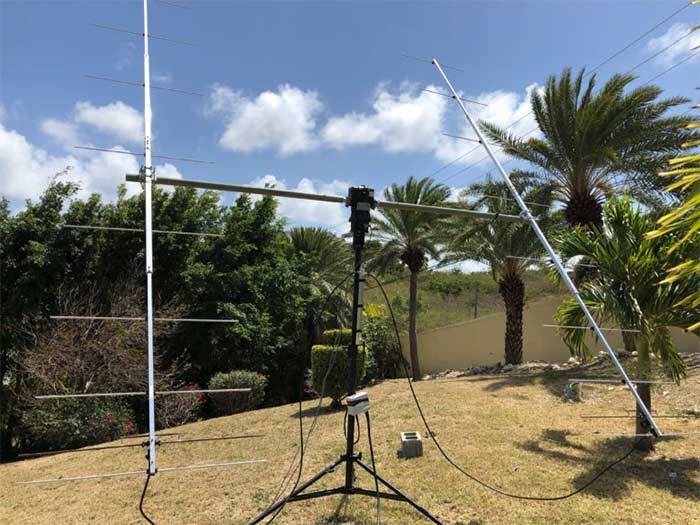

Lee WW2DX use these 2m9DXA and 2m12DX7 antennas on his EME expeditions V26PD in March 2018 :

2m 9Elements Light Weight Antenna 2m9DX5 EME expedition V26PD–Antigua WW2DX

2m 12Elements Super Low Noise Antenna 2m12DX7 EME Expedition FJ-WW2DX

CY9C EME expedition:

2m 12Elements Super Low Noise Antenna 2m12DX7 EME Expedition CY9C WW2DX

Antennas-Amplifiers Product Benefits:

  • F/B and G/T superiority.

All antennas have been calculated using state-of-the-art full 3D Electromagnetic Simulation Software including the influence of the boom, bracket, baluns, and connectors.

The performance of antennas designed using these techniques is exceptional, far better than antennas designed using “wire” programs.

  • No tuning antennas

Before dispatch, we assemble each antenna and test antenna characteristics.

That means you may expect exceptionally good electrical and mechanical attributes including low SWR across the designed range immediately after assembling.

No need to tune the dipole, or any other element to get perfect SWR on the intended frequency range. Everything is pre-tuned.

  • Easy to set up

Everything is labeled, just put number to number. The antenna can be assembled with hand tools in a couple of minutes.
Everything is included in the antenna box: Antenna, balun with connector, and bracket. Yours is just to assemble and have fun!

The old name of the antenna was PA144-9-5A
