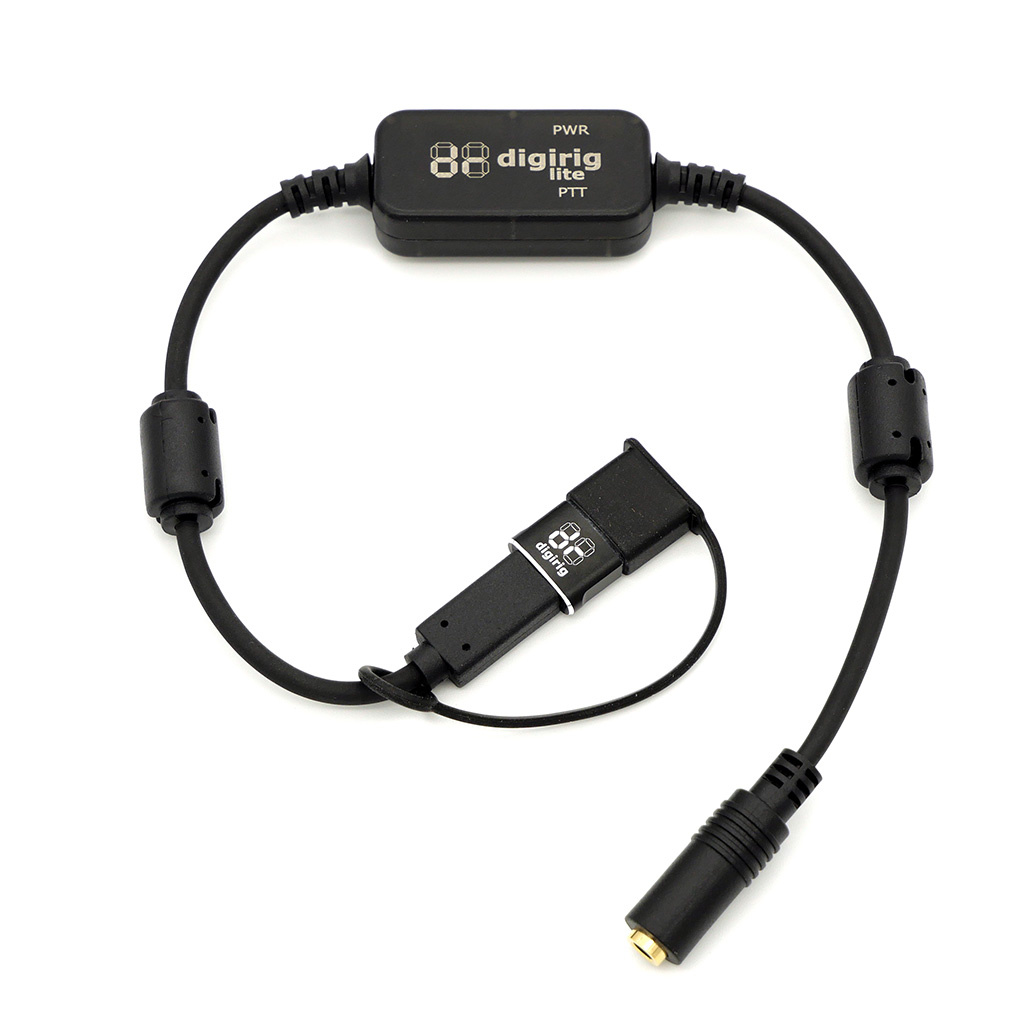

New Digirig Lite Control interface for digital mode View larger

digirig

DIGIRIG-DRLITE-2948

New product

U.S.A

Online only

Digirig Lite Control interface for digital mode

rating No review at the moment

Digirig Lite Rev 1.2 is the minimalist version of Digirig Mobile with the same audio codec but without the serial port.

  • Combines audio codec and PTT switch
  • Supports PTT through the GPIO3 of the CM108 audio codec
  • Supports VOX PTT via the tone on the unused right channel (experimental)
  • Works with all major operating systems: Windows, MacOS and Linux
  • Uses a single TRRS connector compatible with existing Digirig audio cables
  • Large collection of pre-built cables including popular transceivers from Icom, Yaesu, Elecraft, Baofeng, Xiegu.

Examples of discussion and software configuration can be found in this thread.

More details

53,90 € tax excl.

In stock

   More than 10 Items

Data sheet

Change log :

1.0 - Initial release, GPIO PTT operation was confirmed by several testers with a range of applications. The PTT by tone circuit was not considered robust and was therefore disconnected.

1.1 - Reduction of the current limiting resistor in the PTT line to accommodate existing Digirig cables which already contain resistors. Improved tone-on-tone PTT on the correct channel - now works with a range of software and applications, but is considered experimental at this stage.

1.2 - Form factor change to USB-C cable with USB-A adapter included, added indicators for power and PTT, significant improvement to tone/VOX PTT. Solder pads to individually disable PTT via GPIO3 and VOX. Easy access pad to codec GPIO lines used for COS and CTCSS.

Digirig Lite 1.2 - Diagram
