Signalink-5PD pack for Yaesu and Ten-Tec 5-pin mini-din DATA socket View larger
Tigertronics

SIGNALINK-PACK-SLUSB5PD-1515

New product

U.S.A

Signalink-SLUSB-5PD pack for Yaesu with 5-pin mini-din DATA socket

rating No review at the moment

The Signalink-SLUSB-5PD interface pack is compatible with Yaesu and Ten-Tec radios equipped with a 5-pin mini-DIN data port (DATA socket) such as: Yaesu FT1000, FT2000, FTDX5000, FTDX9000 (list below).

  • Low noise USB sound card
  • Quick and easy installation with the jumper
  • RX and TX setting from the front panel
  • Support ALL digital and digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8, FT4, JS8, ACARS, etc.
  • Complete RF isolation between computer and radio
  • Transmit Audio output and external speaker jack

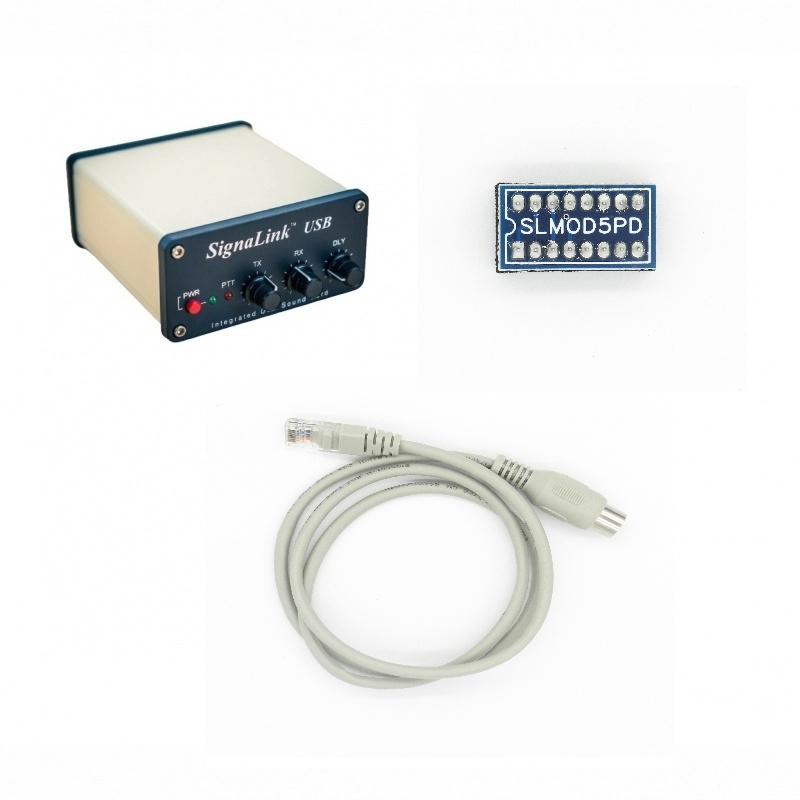

The pack includes: The Tigertronics Signalink USB interface, the SLCAB5PD cable to connect the radio to the interface and the SLMOD5PD jumper (jumper) to be installed inside the box, 1 USB cable 2.5m, 1 mono jack cable, 6 pre-cut and stripped 24 AWG wires, 1 Allen key - 3/32 "size, rubber feet, 1 English manual.

Note: This interface does not allow frequency control (CAT control) on the radio station used, it allows switching to PTT and sending a signal to the radio station and receiving it, thanks to the USB peripherals created.

More details

141,71 € tax excl.

149,17 €

Instead of 143,93 €

Out of stock, available within 1-2 months

Pack content

  • Tigertronics Signalink USB radio interface and sound card
    114,79 € 120,83 € tax excl. -5%tax excl. In stock

    -5%

    Reference: TIGER-SIGNALINK-BOITIER-1455

    1 x Signalink USB from Tigertronics Radio interface & sound card for digital modes

    The Signalink USB radio interface from Tigertronics is a USB sound card that allows you to receive and transmit from a computer to practice digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8,

    114,79 €

    120,83 €

    Reduced price!
  • Signalink SLUSB-5PD cable for Yaesu Ten-Tec Mini DIN Data 5-pin
    18,92 € 19,92 € tax excl. -5%tax excl. Out of stock, available within 1-2 months

    -5%

    Reference: SIGNALINK-CABLE-SLCAB5PD-1482

    1 x Signalink SLCAB-5PD cable for Yaesu Ten-Tec Mini DIN Data 5-pin

    The Signalink SLCAB5PD radio interface cable can be used with the Signalink USB sound card and with virtually all Yaesu and Ten-Tec radios that have a 5-pin mini-DIN data port (DATA socket). This

    18,92 €

    19,92 €

    Reduced price!
  • Jumper Signalink SLMOD-5PD for Yaesu Ten-Tec Mini DIN Data 5-pin
    10,21 € 10,75 € tax excl. -5%tax excl. In stock

    -5%

    Reference: SIGNALINK-JUMPER-SLMOD5PD-1483

    1 x Jumper Signalink SLMOD-5PD for Yaesu Ten-Tec Mini DIN Data 5-pin

    The Signalink SLMOD5PD Jumper module is compatible for use with the Signalink USB sound card and with Ten-Tec and Yaesu radios which have a 5 pin mini-DIN data port (DATA socket). The radio cable

    10,21 €

    10,75 €

    Reduced price!

Download

Manual Signalink USB (FR)

French manual and user guide Signalink USB 1.48M

Manual Signalink USB (EN)

English manual and user guide Signalink USB. 745.98k

Data sheet

  • Power supply: USB port compatible with USB 1.1 / 2.0 / 3.0, Male B connector
  • Consumption: ~ 140mA in transmission, ~ 80mA nominal
  • Operating temperature: -30 ° C to + 60 ° C
  • Audio frequency response: 200 Hz - 4000 Hz at 600 ohms
  • Sampling rate: 16 Bits, up to 48Khz
  • Operating System: Windows 98SE, ME, 2000, XP, Vista, Windows 7, 8.x and Windows 10
  • MAC OS 9.1, MAC OS X 10.00
  • Z radio input / output: 600 Ohm
  • Auto-PTT ™ delay: 30 ms to 3 seconds
  • PTT circuit: Relay, rated value - 1A @ 24VDC (max), 0.5A @ 120VAC (max)
  • Radio connection: Audio TX, Audio RX, PTT, GND and RJ-45 female
  • RX audio / speaker: 3.5mm mono jack mono
  • Housing: Extruded aluminum, powder coated
  • Dimensions: 40 x 81 x 91 mm
  • Weight: 187g

Compatible positions

This Signalink pack is compatible with the radios below and the European (E / DE), or American (R / DR) versions.

YAESU
FT-920
FT-1000MP
FT-1000MPMKV
FT-1000MPMKV Field
FT-2000
FTDX-5000 / D / MP
FTDX-9000 / D / MP

TEN-TEC
Argonaut V
Jupiter
Omni VII
Pegasus

Argonaut VI **
Eagle **
Orion **
Orion II **

These radios use our 8 pin DIN radio cable (p / n SLCAB8PD), but the necessary jumper settings are the same as those used by the 5 pin DIN cable.



The SignaLink USB supports virtually ALL digital modes that are available for sound card interfaces including but not limited to, PSK31, MT-63, WSJT/WSJT-X  modes (FT8, JT4, JT9, JT65, QRA64, ISCAT, MSK144, WSPR, JTMS, FSK441, FSK315, ISCAT, and JT6M.), SSTV, APRS ®, Packet (300 and 1200 baud), VARA HF, VARA Narrow, and VARA Wide.

The SignaLink USB also supports virtually ALL Voice modes (VOIP, RoIP, etc.), such as EchoLink®, and Zello.

About the only modes that you can't operate with the SignaLink USB, or any other sound card interface, are Pactor, G-TOR and Clover.
