New Signalink-RJ1 pack for TYT and Yaesu radio with RJ11 microphone socket View larger
Tigertronics

SIGNALINK-PACK-HTW-1520

New product

U.S.A

Signalink-RJ1 pack for TYT and Yaesu radio with RJ11 microphone socket

The Signalink-RJ1 interface pack is compatible with TYT and Yaesu radios equipped with an RJ11 microphone socket, such as: TYT TH-9800, TH-7800, Yaesu FT-2900R, FT-7900R, FT-8900R (list below below).

  • Low noise USB sound card
  • Quick and easy installation with the jumper
  • RX and TX setting from the front panel
  • Support ALL digital and digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8, FT4, JS8, ACARS, etc.
  • Complete RF isolation between computer and radio
  • Transmit Audio output and external speaker jack

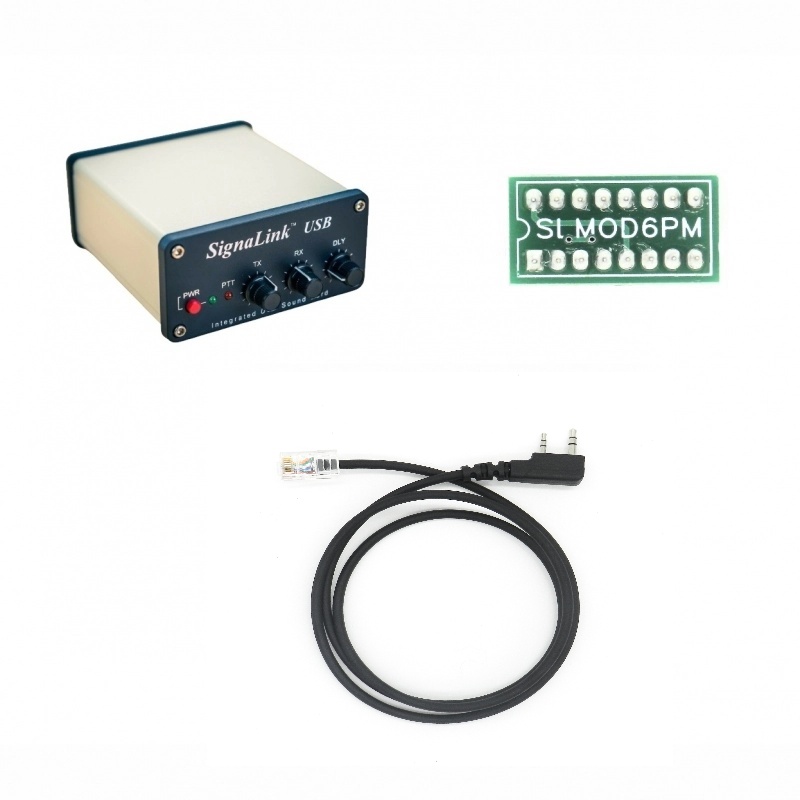

The pack includes: The Signalink interface, the SLUSBRJ1 cable to connect the radio to the interface and the SLMODR1Y jumper (jumper) to be installed inside the box, 1 USB cable 2.5m, 1 mono jack cable, 6 pre-cut wires and stripped 24 AWG, 1 Allen key - size 3/32 ", rubber feet, 1 English manual.

Note: This interface does not allow frequency control (CAT control) on the radio station used, it allows switching to PTT and sending a signal to the radio station and receiving it, thanks to the USB peripherals created.

More details

159,00 € tax incl.

Instead of 168,80 €

In stock

Pack content

Data sheet

  • Power supply: USB port (Male B connector)
  • Consumption: ~ 140mA in transmission, ~ 80mA nominal
  • Operating temperature: -30 ° C to + 60 ° C
  • Audio frequency response: 200 Hz - 4000 Hz at 600 ohms
  • Sampling rate: 16 Bits, up to 48Khz
  • Operating System: Windows 98SE, ME, 2000, XP, Vista, Windows 7, 8.x and Windows 10
  • MAC OS 9.1, MAC OS X 10.00
  • Z radio input / output: 600 Ohm
  • Auto-PTT ™ delay: 30 ms to 3 seconds
  • PTT circuit: Relay, rated value - 1A @ 24VDC (max), 0.5A @ 120VAC (max)
  • Radio connection: Audio TX, Audio RX, PTT, GND and RJ-45 female
  • RX audio / speaker: 3.5mm mono jack mono
  • Housing: Extruded aluminum, powder coated
  • Dimensions: 40 x 81 x 91 mm
  • Weight: 187g

Compatible positions

This pack is compatible with the radios below and the European (E / DE), or American (R / DR) versions.

TYTTH-9800
TH-7800
YaesuFT-90
FT-90R
FT-100 **
FT-100D
FT-1500M
FT-1802
FT-1900R
FT-2600
FT-2800M
FT-2900R
FT-2980R
FT-7800R
FT-7900R
FT-8800R
FT-8900R
FTM-351
FTM-350R
FTM-350AR
FTM-3100R
FTM-3200DR
FTM-7250DR


** NOTE: The Mic jack on the FT-100 has a special PTT requirement and cannot use this jumper module unless it is modified. The modification is fairly straightforward, but if possible we recommend using the 6 pin Data Port on this radio instead.

If your radio is not in the above list, check out our other listings or contact us. We have a number of SignaLink references to fit most radios on the market.
