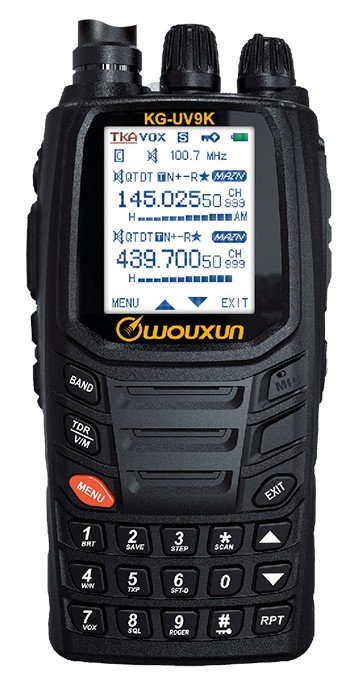

Wouxun KG-UV9K 144/430Mhz 7 Bands RX + Transponder + 8.33kHz

The Wouxun KG-UV9K dual band VHF-UHF walkie-talkie has the same functionality as the KG UV-9D with the new frequency step 8.33kHz for aviation band, the UV9K covers 144-146Mhz and UHF 430-440Mhz, with 5 watts in VHF and 4W in UHF and has a 7-band VHF-UHF scanner in RX only.

- Walkie-talkie usable with radio license
- FM analog mode
- 999 channels
- Step frequency: 2.5, 5, 6.25, 8.33, 10, 12.5, 25, 50 and 100KHz
- Cross-band relay function and transponder mode, dual simultaneous reception
- 88-108Mhz FM radio and voice control
- 2000 mAh battery
- Autonomy: 20-24h approximately
- Programmable by computer with USB cable (optional)
- Antenna connector: SMA female (antenna compatible with SMA Male)
- Range: 3-5 km and up to 10-15 km outdoors depending on clearance and in direct view

Supplied complete with: 1 Wouxun KG-UV9K, 1 Li-Ion Battery 2000mAh, 1 VHF / UHF dual-band antenna, 1 belt clip, 1 lanyard, 1 charger 220V EU plug, manual in English.

More details

Download

Drivers USB Wouxun Windows

Drivers CP210x Windows 10, WIN 7 & 8 and Windows XP for any Wouxun workstation. 11.26M

Manual KG-UV9D+ (EN)

Wouxun KG-UV9D Plus English Manual 14.9M

CPS software KG-UV9D PLUS

For Windows 1.66M

CE RED certification Wouxun

Declaration of conformity, test report and CE certification RED Wouxun KG 8.94M

Manual KG-UV9D UV-9K (FR)

Manual in french. 1.21M

Data sheet

Features Wouxun KG-UV9K

- 999 memories
- dual band amateur version: VHF 144-146Mhz (RX / TX) and UHF 430-440Mhz (RX / TX)
- Relay mode (repeater / cross-band transponder V / U)
- Transmitting power: 1 or 4W in UHF / 1 or 5W in VHF
- 2000 mAh Li-Ion battery
- In reception only the following 7 bands:
- 76-108MHZ (WFM)
- 108-136MHZ (Aviation AM VHF)
- 136-180MHZ (FM)
- 230-250MHZ (FM)
- 350-400MHZ (FM)
- 400-512MHZ (FM)
- 700-985MHZ (FM)
- Step frequency: 2.5, 5, 6.25, 8.33, 10, 12.5, 25, 50 and 100KHz
- LED flashlight
- SOS function, SCAN, Priority scan mode
- Dual standby and dual simultaneous reception
- Voice command
- Antenna connector: SMA female
- CTCSS / DCS, 1750hz tone, DTMF
- Large LCD backlit display (adjustable)
- Backlit Keyboard
- Low battery alert, energy saver
- VOX, voice prompts, Scrambler
- Programmable via Windows PC (requires USB cable (optional)
- Programmable side keys
- Weight: 495g
- Size (without antenna): 12.3cm × 5.8cm × 3.1cm
- 2 years warranty and CE certified
