Coaxial cable RG-58 C/U MIL C17 M&P 5mm en bobine View larger
Messi & Paoloni

New product

Italy

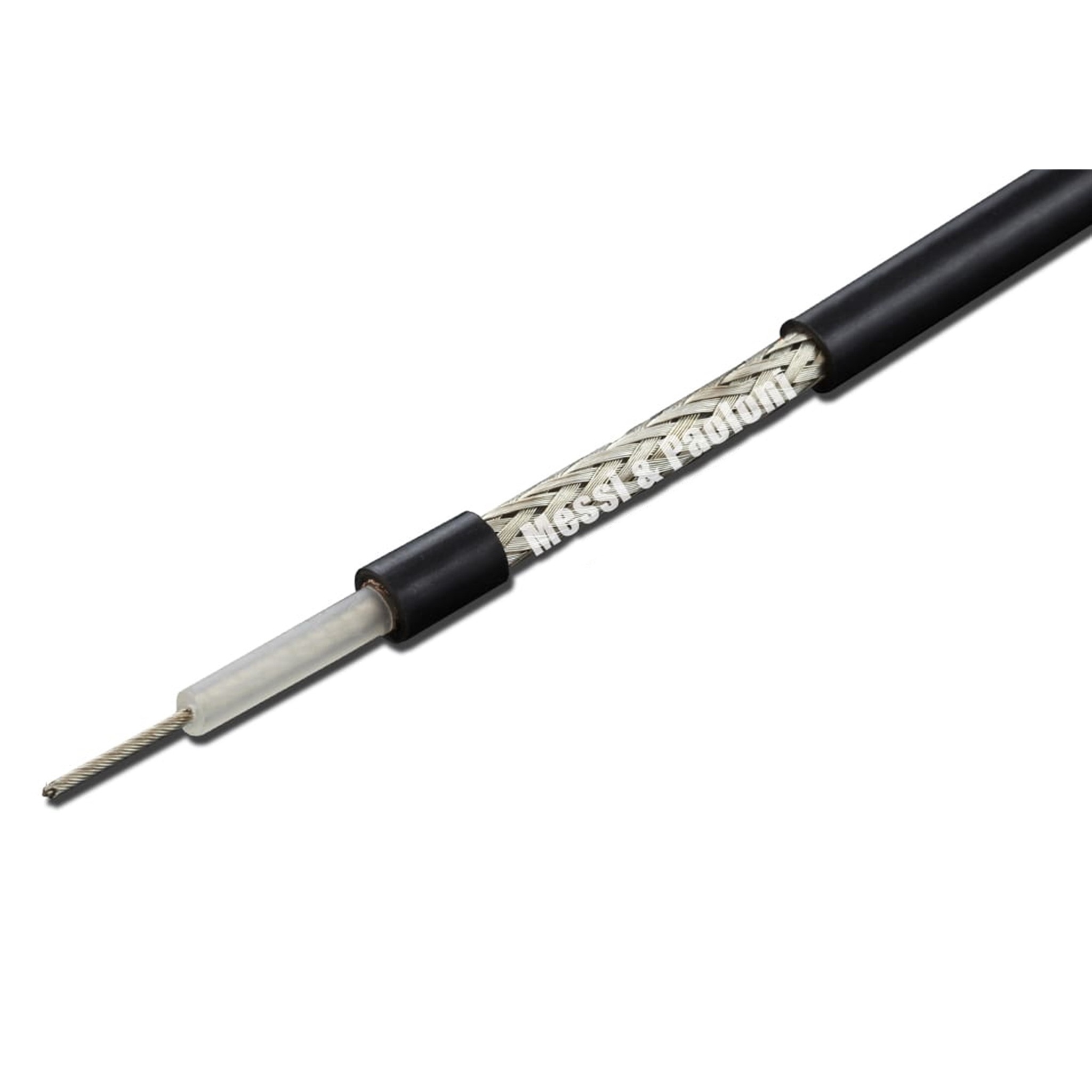

Coaxial cable RG-58 C/U MIL C17 M&P 5mm en bobine

rating Read the 3 reviews
Average rating: 5/5 Number of reviews: 3

Coaxial cable RG-58 C/U MIL17 Messi & Paoloni, RG58 with a diameter of 5 mm, for use in frequencies from 0 to 1000 Mhz (HF, VHF and UHF) or for the construction of wire antenna, dipole, bazooka, etc.

Available in different sizes: 10m, 20m, 30m, 50m, 100m and 200m (to choose below).

Impedance at 200Mhz: 50 Ohm
Minimum bending radius: 25 mm
Operating temperature: -40°C to +60°C
Capacitance: 101 pF/m ± 2
Velocity: 66%
Class: A++
Internal conductor resistance: 37 Ohm/Km
Resistance of outer conductor: 15 Ohm/Km
Voltage test (spark test): 4 kV
Maximum peak power: 2000 W
CE and Rohs standards.

Net weight over 100m: 3.7 Kg

PL-259 (UHF-Male) compatible connector, available as an option, below.

More details

27,08 € tax excl.

In stock

   More than 10 Items

  • 10m
  • 20m
  • 30m
  • 50m
  • 100m
  • 200m

Download

Data sheet

Attenuation at 20°C in dB/100m

1,8 MHz 2,1dB
3,5 MHz 2,9dB
7 MHz 3,9dB
10 MHz 4,7dB
14 MHz 5,6dB
21 MHz 6,7dB
28 MHz 7,9dB
50 MHz 10,8dB
100 MHz 15,8dB
144 MHz 19,3dB
200 MHz 22,1dB
400 MHz 33,3dB
430 MHz 34,9dB
800 MHz 51,1dB
1000 MHz 58,0dB
1296 MHz 63,0dB

Maximum power at 40°C depending on frequency

1,8 MHz 1321 W
3,5 MHz 1138 W
7 MHz 846 W
10 MHz 702 W
14 MHz 589 W
21 MHz 493 W
28 MHz 418 W
50 MHz 306 W
100 MHz 209 W
144 MHz 171 W
200 MHz 149 W
400 MHz 99 W
