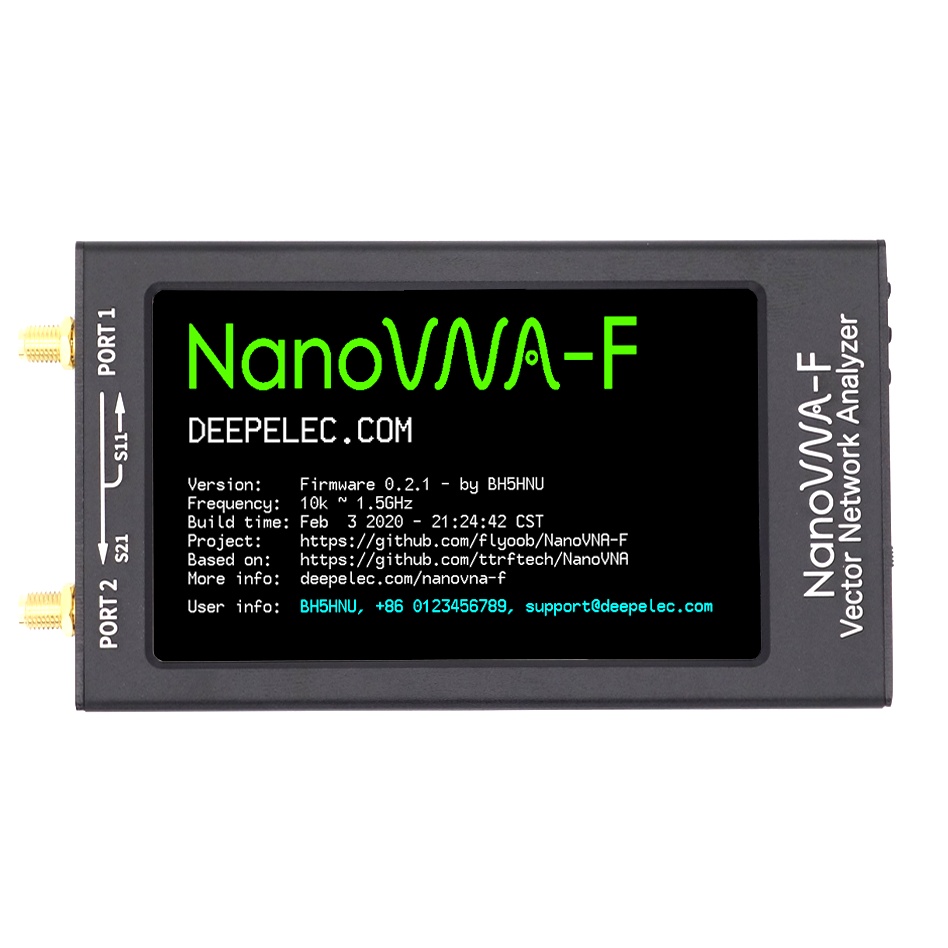

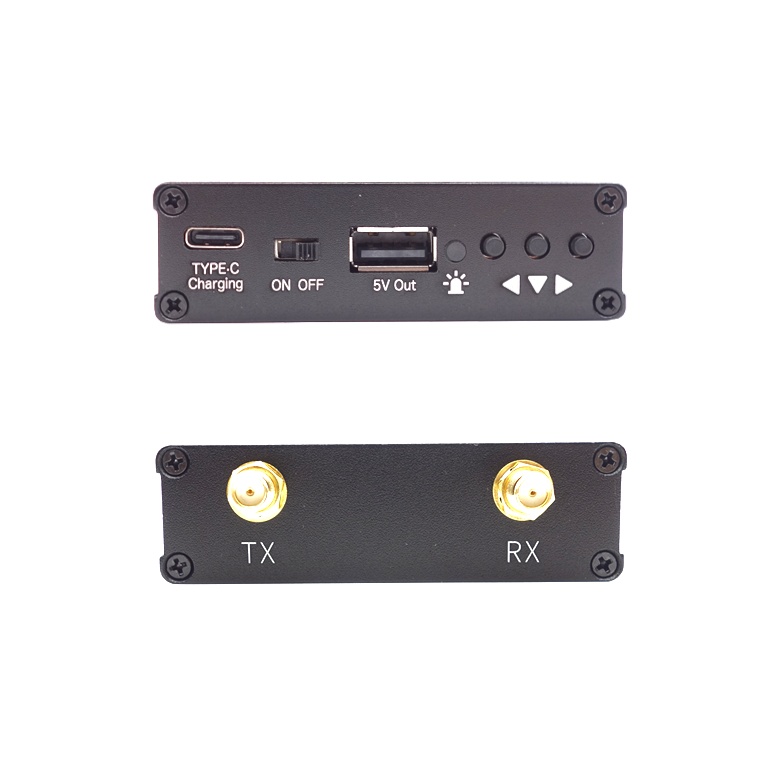

NanoVNA-F VNA antenna analyzer BH5HNU View larger
Previous Next

Deepelec

DEEPELEC-NANOVNA-F-945

New product

China

NanoVNA-F VNA antenna analyzer 50KHz-1500MHz metal case - Deepelec

rating Read the 17 reviews
Average rating: 5/5 Number of reviews: 17

The NanoVNA-F Deepelec version is the enhanced version of the open-source Antenna and Vector Network (VNA) analyzer that covers the HF, VHF and UHF bands from 50 KHz to 1500 MHz with metal case and large screen (11cm) of 800x480 in resolution.

This new official version of the NanoVNA F (Hardware V3.1 with button) is equipped with a 4.3 "(11cm) IPS TFT touch screen with a resolution of 800x480, with a 5000 mAh battery included, with metal case and SMA calibration kit and SMA cables.

Compatible with Windows, Linux and Mac OS. Comes with firmware v0.2.1 (August 2020).

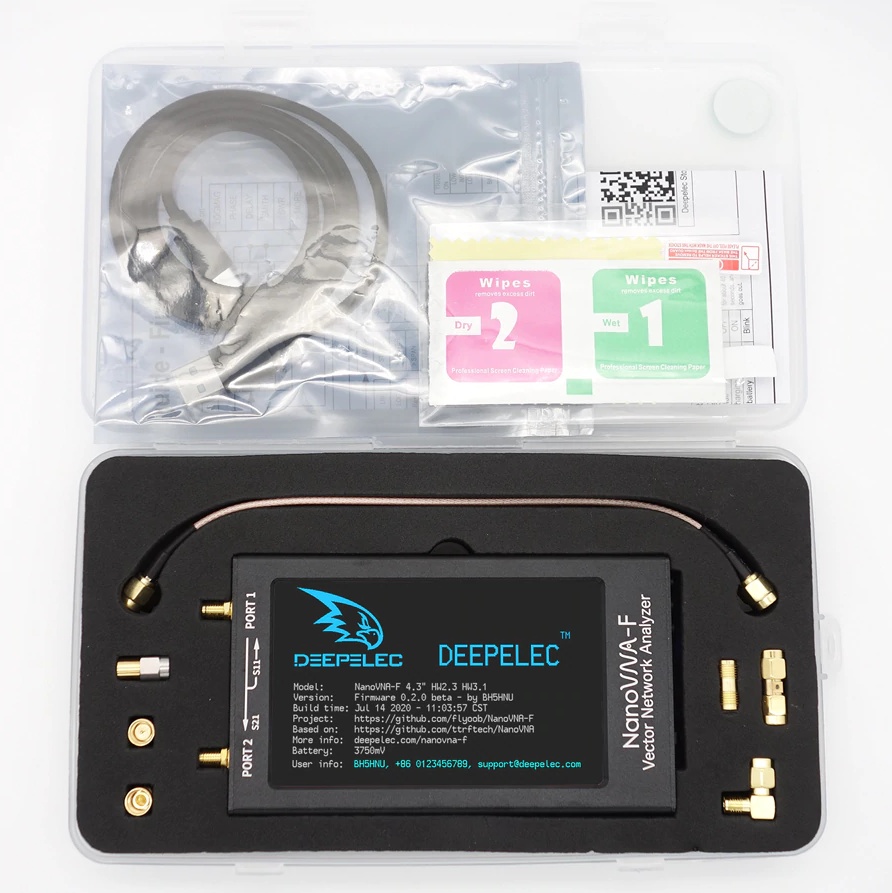

Comes with: 1 NanoVNA-F (official Deepelec version from BH5HNU guaranteed HW 3.1), with calibration kit (1 dummy load 50Ω, 1 open circuit, 1 short circuit), 1 USB Type-C cable, 2 SMA Male cables RG316 20cm, 1 SMA Male - SMA male adapter, 1 SMA female - SMA female adapter, 1 angled SMA Male - SMA female adapter and quick start guide in English. Software and firmware to download below.

 .

More details

104,28 € tax excl.

107,50 €

In stock

   9 Items

Download

Quick start guide NanoVNA-F

Quick Start NanoVNA-F Antenna Analyzer Guide, in English. 53.04k

NanoVNASharp v1.0.3 software

For Windows. 162.75k

nanoVNA_mod_v2

301.16k

nanoVNA_mod_v3

306.3k

Firmware NanoVNA-F v0.2.1

146.3k

Manual NanoVNA-F (EN)

Official english manual for the NanoVNA-F by BH5HNU from deepelec0com 2.07M

NanoVNA guide to start (EN)

Guide v1.6 to configuring and using a NanoVNA, in English by Martin Svaco, 9A2JK. 3.59M

Manual NanoVNA-F (FR)

NanoVNA F manual by BH5HNU from Deepelec.com, V1.0. 1.86M

Data sheet

NanoVNA-F HW 3.1 BH5HNU datasheet

Frequency range: 10KHz to 1500MHz
RF output power: 0dbm (+/- 2dbm)
Measurement range: 70dB (50KHz-300MHz), 60dB (300-900MHz), 40dB (900-1500MHz)
Frequency accuracy: <0.5ppm
Screen: 4.3 inch TFT ~ 11cm - 800x480
USB interface: USB type-C
SWR measurement: <1.1
Power supply: USB 5V 200mA or via the included battery (5000mAh / 3.7V)
Number of calibration points: 101
Number of measuring points: 101
Used to measure: Parameters S11 and S21, the standing wave ratio SWR of an antenna, the Smith and phase diagram
Version firmware installé : v0.2.1
Version hardware : v3.1
Conception radioamateur : BH5HNU - Deepelec
Dimensions: 14 x 7.5 x 2cm

Update via firmware to add new features or fix bugs, available on Github.

Software for Windows: NanoVNASharp, nanoVNA_mod to download below.

Software for Windows, Linux, Mac OS: Nano-Saver on Github.

Nanovna-F wiki and user guide: https://groups.io/g/nanovna-f/wiki
