RF Splitter 0 to 5000Mhz Attenuation 6dB with SMA

rating No review at the moment

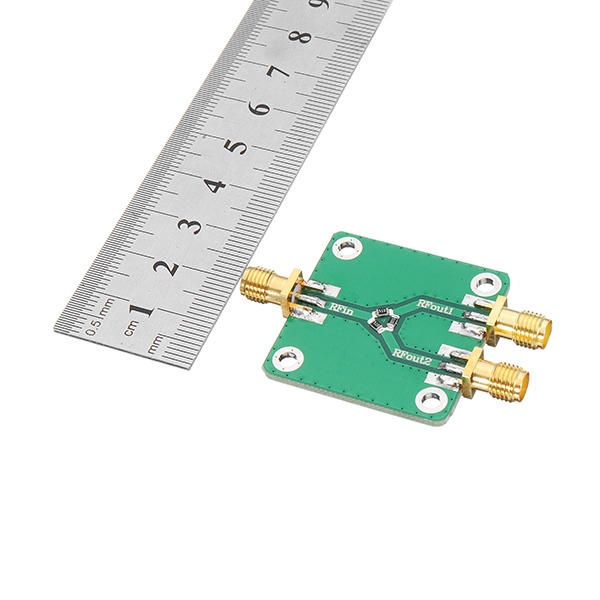

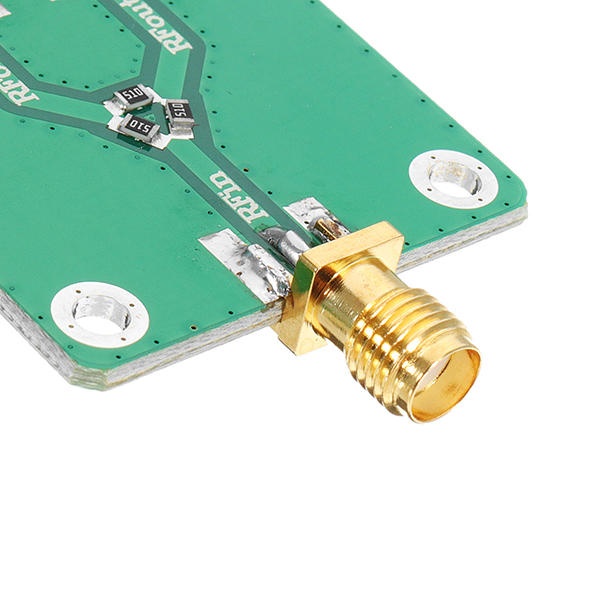

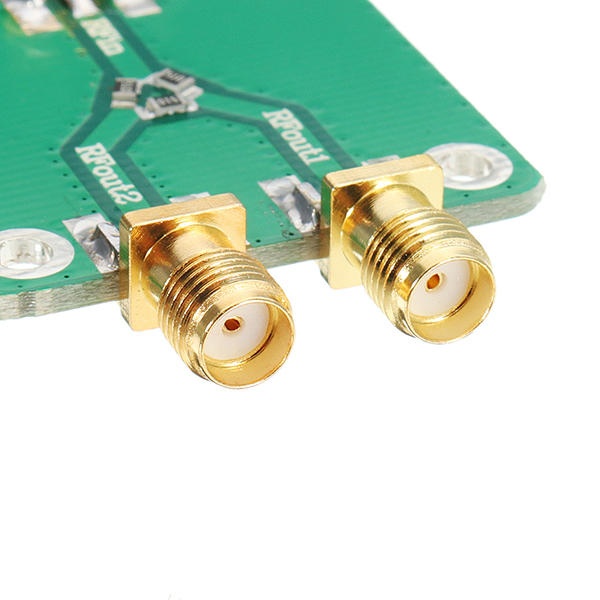

This RF module allows you to separate a signal on 2 SMA outputs, with an attenuation of -6dB between the 2 outputs, for use from 0 to 5000Mhz (5Ghz).

Supplied with: 1 2-channel RF RF Splitter module.

More details

This material is no longer available

Data sheet

RF splitter specifications

Frequency: 0 Mhz to 5000 Mhz
Connector: SMA female
Dimensions: 33 x 33 x 3 mm

2 years warranty*

* The warranty does not cover damage that may result from a mounting error, an incorrect antenna setting (ROS), a maximum input power not respected, a short circuit of the power supply or coaxial line and damage from electrostatic discharge.
