> Radio Antennas>SHF>Log Periodic Antenna 2-11Ghz 6dBi WA5JVB
Log Periodic Antenna 2-11Ghz 6dBi WA5JVB Kent Electronics SHF WA5-ANT-LOG-LP11-776 View larger

Kent Electronics

WA5-ANT-LOG-LP11-776

New product

USA

Log Periodic Antenna 2-11Ghz 6dBi WA5JVB

rating Read the review
Average rating: 5/5 Number of reviews: 1

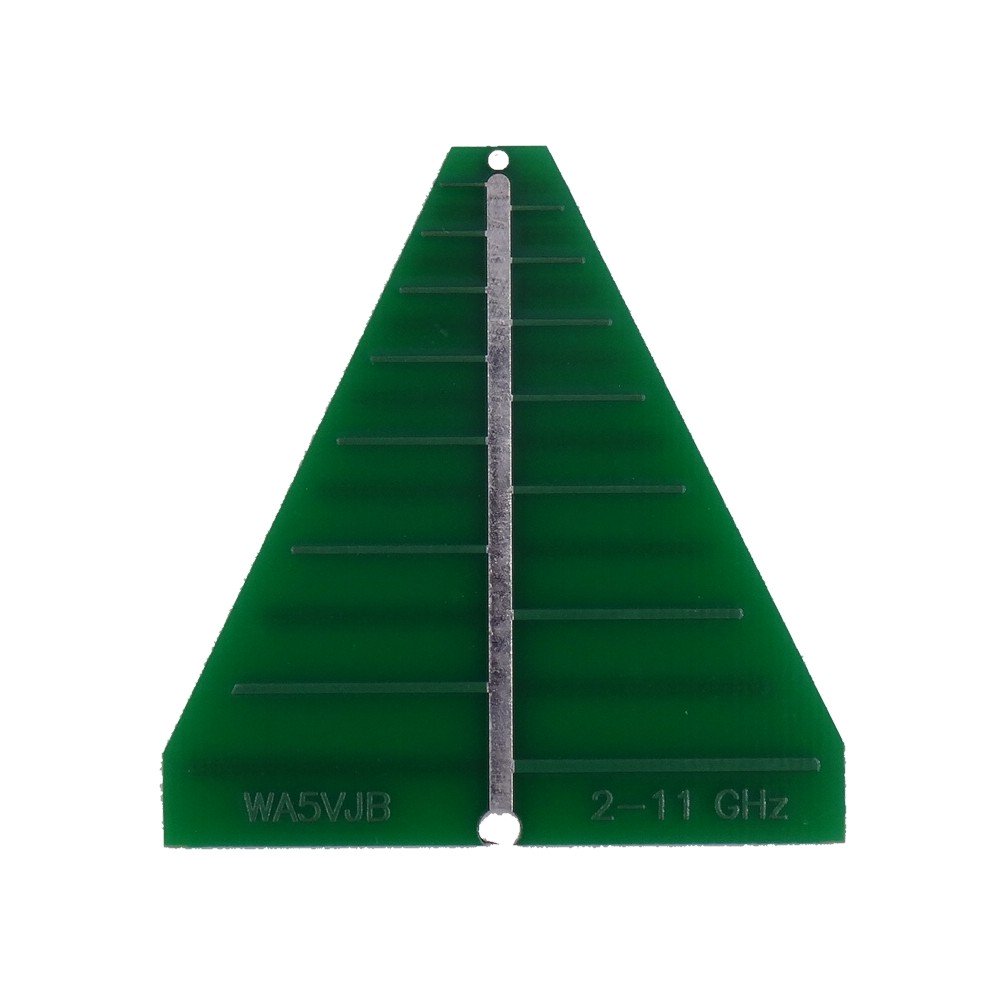

PCB Log periodic antenna, for frequency from 2000 to 11000MHz with a gain of 6 dBi.

Supplied without SMA connector (soldering) or via a coaxial cable soldered directly to the PCB.

Frequencies: 2000-11000 MHz (2-11Ghz)
Type: Periodic Log
Gain: 6dBi
Impedance: 50 ohms
Amateur radio design: WA5VJB
Dimensions: 53x55mm
Weight: 6 grams

24,17 € tax excl.

This material is no longer available

Download

WA5JVB Log 2-11Ghz

15.77k
