PST-LOOP1-17 single-band 17m delta loop antenna with rigid single element ProSisTel

Features :

• Rigid delta loop for 17m.

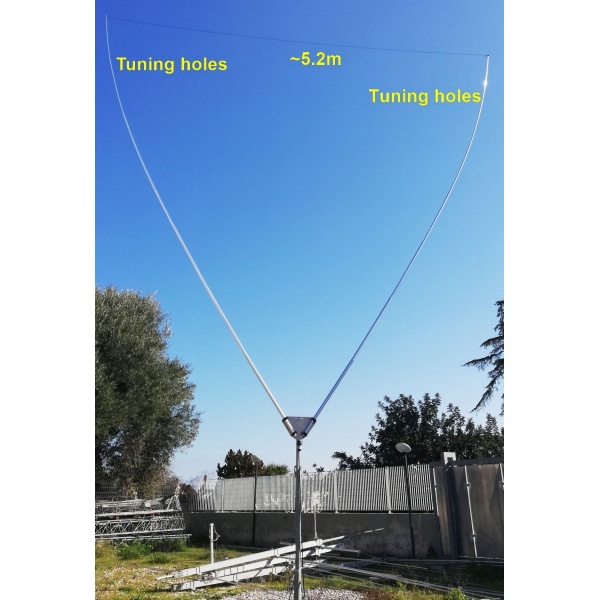

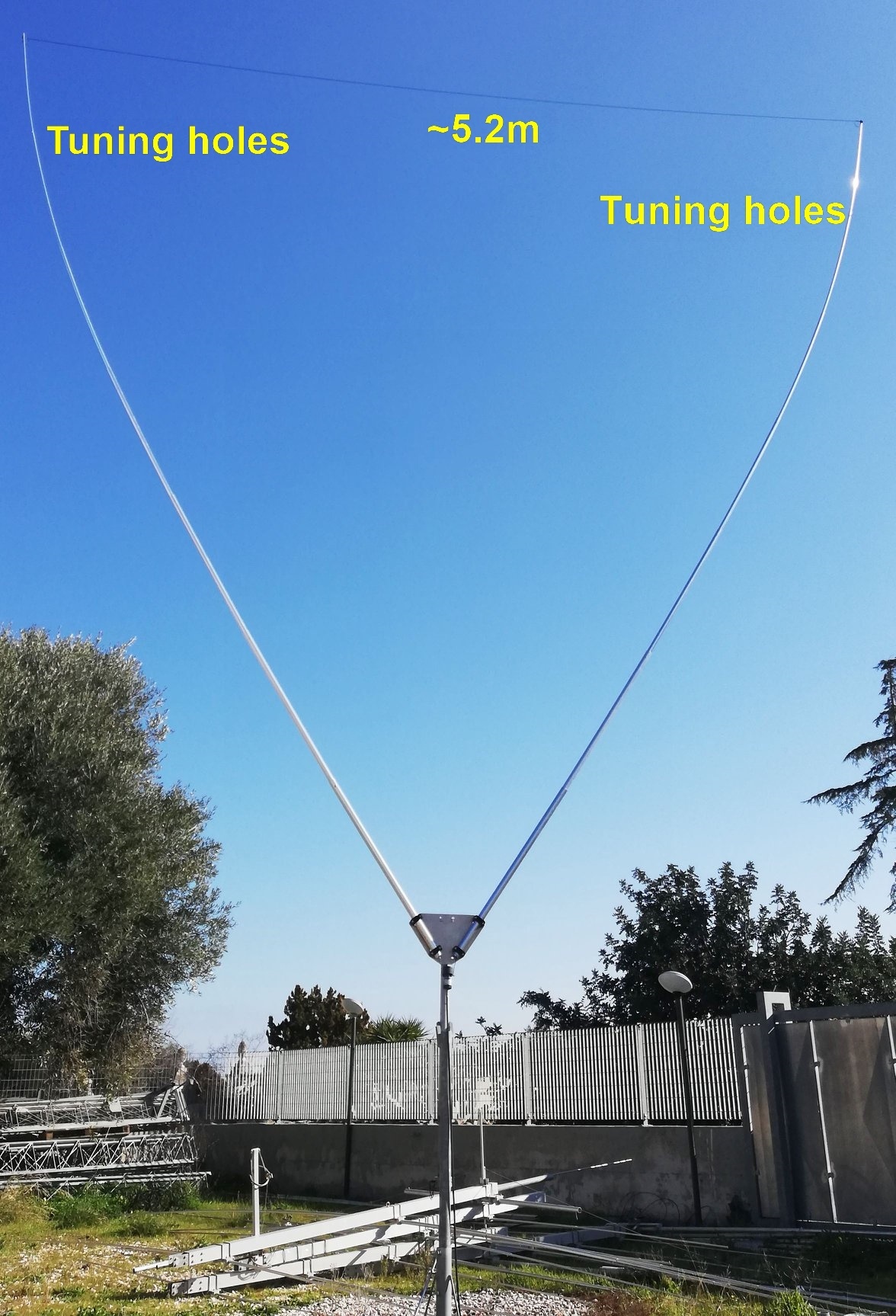

• Arm length approx. 5.8 m, ground projection approx. 3.5 m per arm.
• Mounts on 40-50mm poles, 60mm optional. Suggested height is at least 4 m, but works equally well at 2 m.
• The antenna does not need to be guyed.

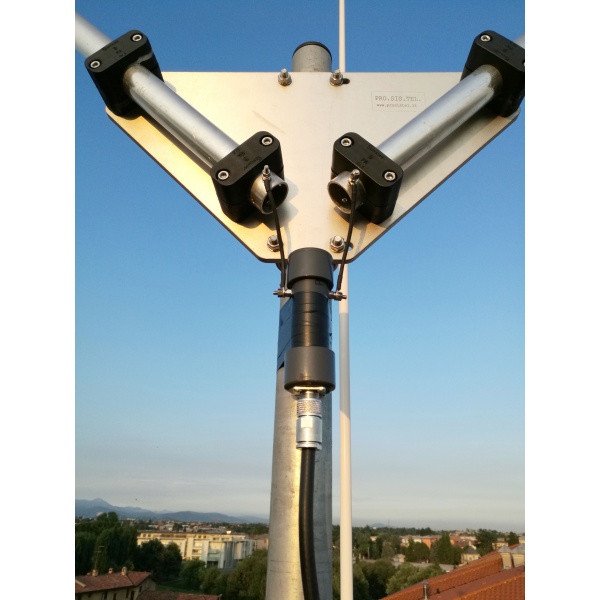

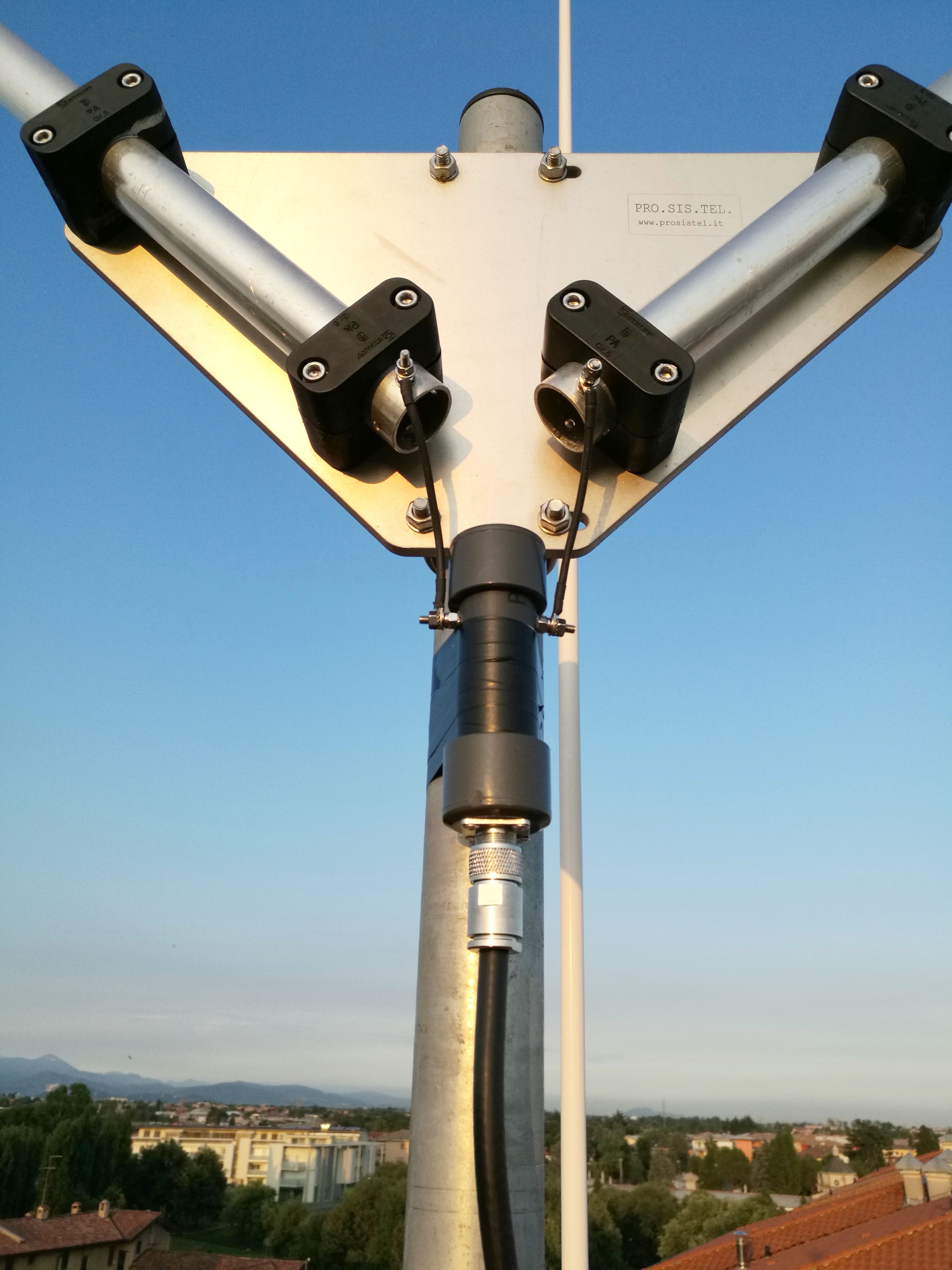

• Balun 2:1 included
• SO239, 50ohm, full band coverage
• 2KW pep
• Wind surface: 0.2m2 - max. wind 130Km
• Weight 7Kg
• Aluminium 6060T6 - stainless steel hardware.
