GUOHETEC PMR-171 Portable SDR Transceiver 20W HF VHF UHF and AM FM SSB tuner and RX 100 kHz to 2 GHz

rating Read the 2 reviews
Average rating: 5/5 Number of reviews: 2

The GUOHETEC PMR-171 (new V2 version) is an ultra-versatile portable SDR transceiver designed for amateur radio, wideband listening, field operations, and advanced technical applications.

It covers a reception range from 100 kHz to 2 GHz, and all amateur radio HF, VHF, and UHF transmission bands in FT8, USB, LSB, CW, AM, FM, and RTTY modes.

It features a fast automatic antenna tuner, an SWR analyzer and high SWR detector, as well as a real-time spectrum and waterfall display. Compact, self-contained, and fully featured, it is designed for portable and mobile use.

It can be controlled via Bluetooth by an Android smartphone or a PC.

  •     Ultra-wideband reception from 100 kHz to 2 GHz
  •     Transmission on HF, 6 m, 4 m, 2 m, and 70 cm amateur radio bands according to ITU region
  •     Compatible with FT8, USB, LSB, CW, AM, FM, RTTY, and WFM (receive only)
  •     Built-in high-speed automatic antenna tuner
  •     Fast detection and display of SWR on all bands

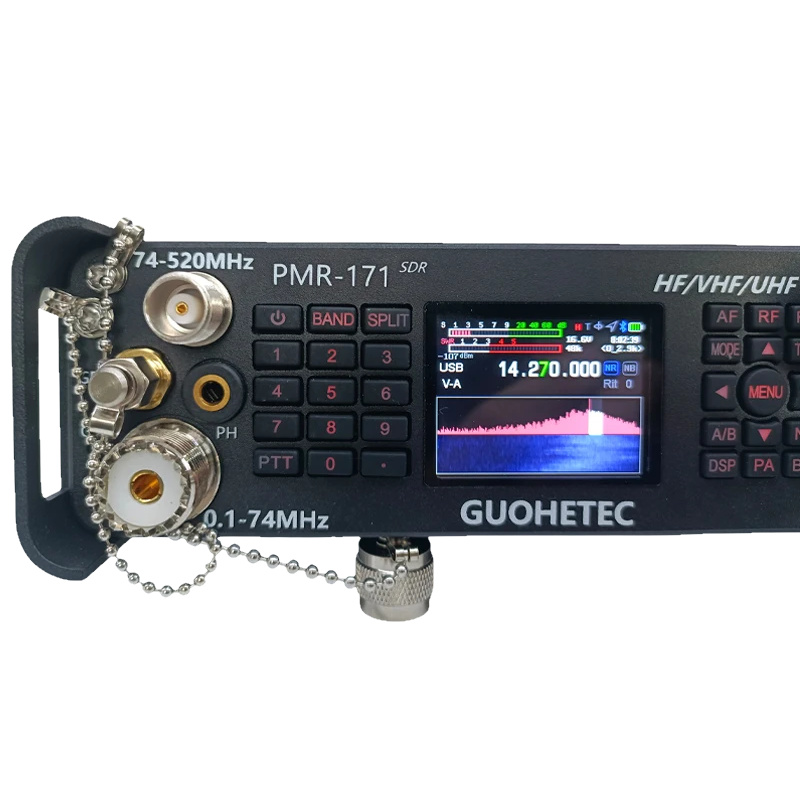

  •     Real-time spectrum and waterfall display
  •     Doppler tracking for quick satellite frequency correction
  •     Wireless control via smartphone using Bluetooth
  •     Open network function for remote control, screen read/write, and network features
  •     Ultra-portable, durable design suitable for mobile operations
  •     Stable and secure 14.2 V power supply with excellent battery life
  •     100-channel memory
  •     UHF female connector (SO-239): HF bands from 0.1 to 74 MHz
  •     Female TNC connector: VHF and UHF bands from 74 to 520 MHz

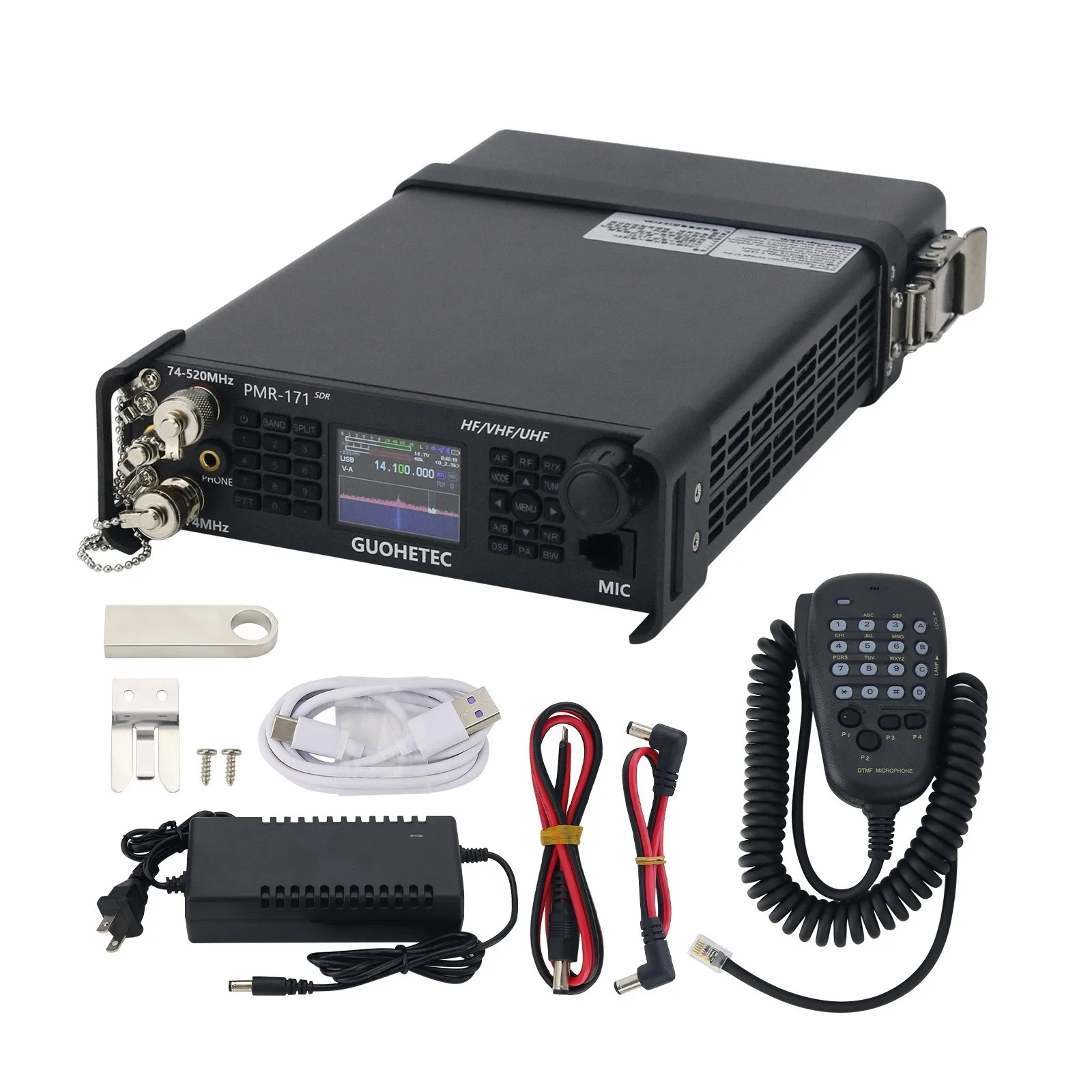

Includes: One PMR-171 unit, one handheld microphone, one battery, one 220V power supply, one 12V power cable, one USB flash drive, and one USB cable.

More details

768,43 € tax excl.

In stock

   7 Items

  • With GPS
  • Without GPS

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

  • Architecture: Software Defined Radio (SDR)
  • Available modes for transmission / reception: USB, LSB, FT8, CW, RTTY, AM, FM, DMR (optional)
  • Reception only mode: WFM (RX only)
  • Frequency accuracy: 1 Hz

Reception

  • Reception range: 100 kHz to 2 GHz
  • Wide reception bandwidth: wide coverage for listening, monitoring, scanning and spectrum surveillance
  • Intermediate frequency IF: 12 kHz
  • IF bandwidth: 20 kHz
  • IF rejection: ≥ 70 dB
  • IF suppression: ≥ 80 dB
  • Audio output power: 2 W (10% distortion, 8 Ω load, 3 kHz)

Reception sensitivity

  • SSB / CW (BW 2.4 kHz @ 10 dB S/N) :
    • 0.18 µV (1.8–54 MHz)
    • 0.25 µV (144–148 MHz)
    • 0.25 µV (430–450 MHz)
  • AM (BW 6 kHz @ 10 dB S/N) :
    • 15 µV (0.3–1.8 MHz)
    • 2 µV (1.8–54 MHz)
    • 2 µV (144–148 MHz)
    • 2 µV (430–450 MHz)
  • FM (BW 15 kHz @ 12 dB S/N) :
    • 0.5 µV (28.0–29.7 MHz)
    • 0.25 µV (50–54 MHz)
    • 0.3 µV (144–148 MHz)
    • 0.5 µV (430–450 MHz)

Transmission frequencies

  • 1.810–1.850 MHz / 3.500–3.800 MHz / 5.3515–5.3665 MHz / 7.000–7.200 MHz / 10.100–10.150 MHz / 14.000–14.350 MHz / 18.068–18.168 MHz / 21.000–21.450 MHz / 24.890–24.990 MHz / 28.000–29.700 MHz / 50–54 MHz / 144–146 MHz / 430–440 MHz

Transmission power

  • HF: SSB up to 10 W
  • CW: 0.1 to 20 W
  • FM: 0.1 to 20 W
  • AM: 1 to 20 W
  • VHF: SSB / CW / FM ≤ 10 W
  • UHF: SSB / CW / FM ≤ 10 W

Consumption

  • TX: 13.8 V / 5 A
  • RX nominal: 13.8 V / 0.25 A
  • RX high load: 0.35 A (maximum volume and maximum screen brightness)

Suppressions and RF performances

  • Carrier suppression: < 50 dB
  • Noise suppression:
    • 1.8–54 MHz: ≥ 50 dB
    • 144–146 MHz: ≥ 60 dB
    • 430–440 MHz: ≥ 60 dB
  • Channel memory: 100 channels

Integrated automatic antenna tuner

  • Tuner frequency range: 1.8 to 74 MHz
  • Impedance range: 16.7 Ω to 150 Ω unbalanced (VSWR better than 1:3)
  • Accuracy: VSWR 1:1.5 or less
  • Tuning speed: 2 to 5 s (full segment at 10 s)
  • Activation modes: full automatic / manual
  • Integrated function: quick tuning of standing waves and quick SWR visualization on all bands

Spectrum and display

  • RF spectrum display: FFT
  • Spectrum width: 48K
  • Waterfall function: real-time display of the spectrum and waterfall drop
  • Field advantage: immediate visual reading of the radio environment
  • Doppler function: quick tracking of target frequency
  • Mobile control: Bluetooth connection to mobile application

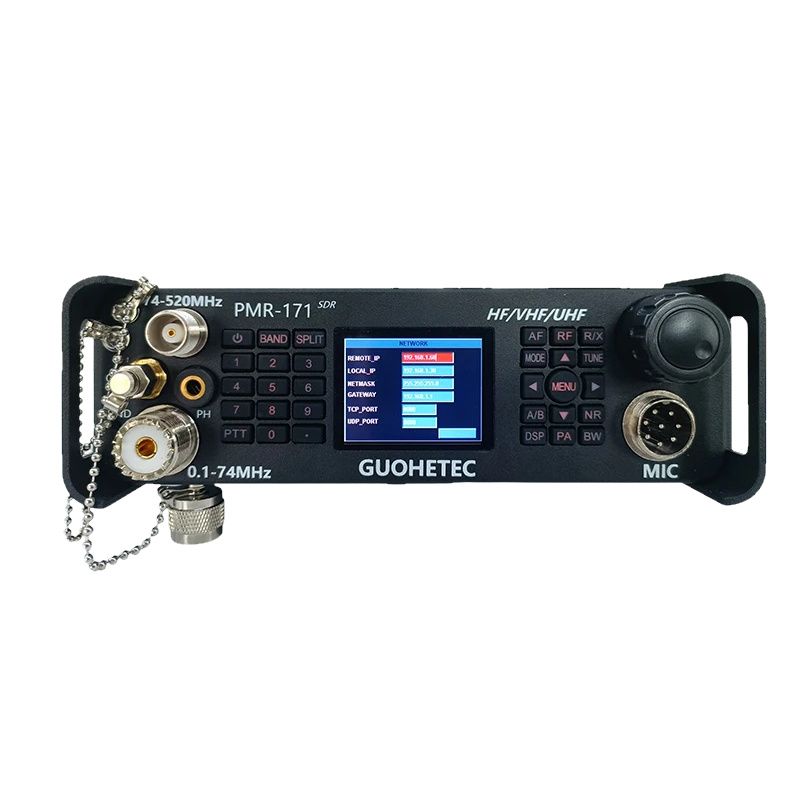

  • Network function: remote control, network port, screen reading / writing and other associated functions

Battery, power supply and autonomy

  • Battery capacity: 5Ah @ 14.2V
  • Stable power supply: 14.2 V stable and secure
  • Autonomy: long announced autonomy, designed for prolonged mobile use
  • Operating voltage range:
    • 9 to 18 V in reception
    • 9 to 12 V: limited transmission power
    • 13.8 to 15 V: full power
    • 15 to 18 V: limited transmission power

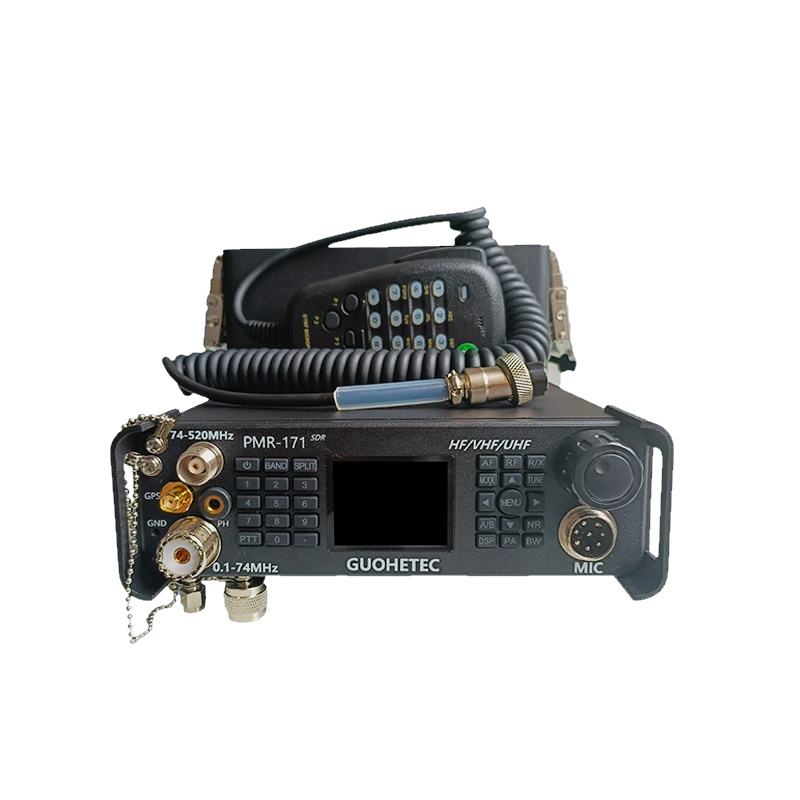

Connectors and interfaces

  • UHF female antenna connector (SO-239): 100 kHz to 74 MHz
  • TNC female antenna connector: 74 MHz to 520 MHz
  • GPS antenna socket: SMA female
  • Microphone socket: GX16 micro connector
  • Headphone / audio socket: PH on the front
  • Highlighted evolutions:
    • GX16 microphone socket
    • More stable design with HF replacement to M head
    • Opening of network port functions

Dimensions and weight

  • Dimensions with battery: 270 × 166 × 50 mm
  • Dimensions without battery: 220 × 166 × 50 mm
  • Weight with battery and accessories: < 2.4 kg
  • Weight without battery or accessories: < 1.7 kg

Operating conditions

  • Operating temperature: -10 °C to +60 °C
  • Relative humidity: 10% to 90%

Positioning and uses

  • Versatile amateur radio use: HF / VHF / UHF traffic, listening, experimentation and mobile / portable activities
  • Typical applications: emergency communications, spectrum surveillance, Mobile radiocommunication, direction finding, SOTA, POTA
  • Design: simple, durable, portable, field-oriented Major strengths: full band, full mode, built-in tuner, color screen, real-time spectrum, Doppler, Bluetooth, high autonomy

  • Customers also bought

  • We also recommend

    • Passion Radio UHF Male UHF Female Angled Adapter (PL) ADAPT-UHF-M-UHF-F-450
      7,90 €

      Reference: ADAPT-UHF-M-COUDE-UHF-F-450

      UHF Male to UHF Female angled adapter

      Angled RF adapter with UHF Male (PL-259) to UHF Female (SO-239) connector. Impedance 50 ohms.

      7,90 €
    • Wide Band Portable Mobile Antenna 7-50Mhz Diamond RHM8 Diamond Antenna Wide-band DIAMOND-RHM8B-694
      149,40 € 166,00 € tax excl. -10%tax excl. In stock

      -10%

      Reference: DIAMOND-RHM8B-694

      Wide Band Portable Mobile Antenna 7-50Mhz Diamond RHM8

      Telescopic and multi-band antenna 7 to 50 MHz Diamond Antenna RHM8 for mobile and handheld in BNC. Bands: 7 to 50MHzMax Power Rating: 120w (SSB)Height: 50cm (retracted) 1.78m (full)Weight:

      149,40 €

      166,00 €

      Reduced price!
    • Portable antenna 3.5Mhz 7-30Mhz 50Mhz and 145Mhz HF-PRO-2 PlusT Komunica
      149,00 €

      Reference: KOM-HFPRO2-PLUST-1078

      HF-PRO2 Plus-T antenna for SOTA and QRP multiband HF and VHF Komunica

      Komunica HF-PRO-2 Plus T portable multiband antenna for 3.5Mhz (80m), 7 to 30Mhz, 6m (50Mhz) and 2m (145Mhz) frequencies and for use in portable, QRP or SOTA. Also compatible with 40Mhz and 70Mhz

      149,00 €
    • UHF Male to SMA Female Adapter
      4,90 €

      Reference: ADAPT-UHF-M-SMA-F-2293

      UHF Male to SMA Female Adapter

      RF adapter with UHF Male to SMA Female connector. Impedance 50 ohms.

      4,90 €

Reviews

Click here to leave a review

rating 5
Belle fabrication
Belle fabrication, fonctionne bien suivant mes attentes.
Mise à jour Firmware 3_7_6 OK, solutionne principalement les rebonds des boutons et surtout de l\'encodeur rotatif qui maintenant fonctionne parfaitement de façon fluide comme attendus.
Batterie tient bien la charge, avec 16 heures de fonctionnement (RX 15h30 et 4 QSO d\'environ 5 mn à pleine puissance ), recharge en 1h25 environ après décharge totale.
Belle sensibilité et bonne modulation, contrairement à des avis plus anciens (le Firmware y est pour beaucoup dans ce genre de transceiver !)
rating 5
A good portable 'shack-in-a-box.
I spent a lot of time looking at online reviews of this radio before making a purchase decision. Overall, I am pleased with the radio; it is well built and easy to operate and is ideal for the portable operations that I have in mind. Since receiving it I have updated the firmware,which was incredibly simple, I have programmed repeater channels using software and direct input and tested HF and VHF operation. A manual is included but it is for the V1 radio, an updated manual can be found on the included USB key or downloaded from the manufacturer\'s website. The PMR - 171 is not my first Chinese radio and in terms of quality and function, I think that it compares well with other products on the market.
