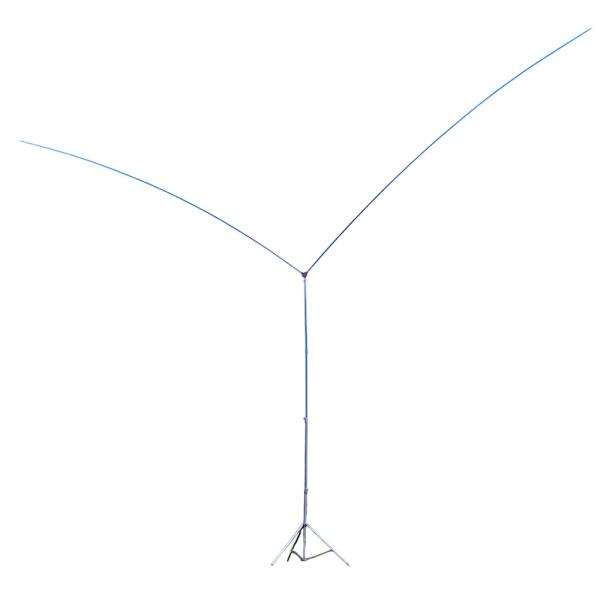

GUO GH-V5 HF VHF UHF 7MHz-430MHz 500W Portable Dipole Antenna View larger
GUO GH-V5 HF VHF UHF 7MHz-430MHz 500W Portable Dipole Antenna
  • GUO GH-V5 HF VHF UHF 7MHz-430MHz 500W Portable Dipole Antenna
  • GUO GH-V5 HF VHF UHF 7MHz-430MHz 500W Portable Dipole Antenna

Guohetec

GUOHETEC-GH-V5-3163

New product

Chine

Safety Information +

GUO GH-V5 HF VHF UHF 7MHz-430MHz 500W Portable Dipole Antenna

rating No review at the moment

The GUOHETEC GH-V5 is a wideband dipole antenna designed to offer maximum versatility in portable or mobile use. It allows coverage of an extended frequency range from the HF band (7 MHz) to the VHF and UHF bands (430 MHz), thus meeting the needs of amateur radio operators.

  • Broad frequency coverage: from 7 MHz to 430 MHz
  • High power capacity: up to 500W PEP (200W in FT8)
  • Compact and lightweight format ideal for SOTA and POTA activations
  • Dipole design optimized for effective shortwave radiation
  • Robust structure suitable for difficult field conditions

Comes with: 1 antenna body, telescopic radiating elements, carrying bag, technical manual.

Tripod not included, available as an option.

More details

178,22 € tax excl.

In stock

   5 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Data sheet

The GUOHETEC GH-V5 is an all-terrain antenna solution for radio operators seeking consistent performance across the entire amateur radio spectrum. Designed for quick deployment, it caters to both users of modern portable stations and field operators requiring a robust backup antenna. Its ability to handle 500W makes it a unique choice in its weight and size category.

Key Features

  • Exceptional multi-band coverage from 40m to 70cm without changing antenna system
  • 500W PEP power allowing the use of power amplifiers in portable mode
  • Modular design facilitating transport and quick outdoor installation
  • Corrosion-resistant materials for increased longevity during outdoor use
  • Careful impedance matching to minimize signal loss
  • Native compatibility with backpack type portable transceivers

Technical Specifications

  • Covered frequencies: 7 MHz to 430 MHz (HF / VHF / UHF)
  • Antenna type: Portable Dipole
  • Maximum power: 500W PEP
  • Nominal impedance: 50 Ohms
  • Connector: UHF-Female (SO-239)
  • Material: High-quality aluminum and high-voltage insulating components
  • Weight: Approximately 1.2 kg (depending on configuration)
  • Deployed length: Variable depending on the frequency band

Compatibility

  • GUOHETEC Transceivers: PMR-171, TBR-119, Q900
  • Portable devices: Yaesu FT-817/818/FTX-1F, Icom IC-705, Xiegu G90/X6100
  • Amplifiers: Compatible with most intermediate power HF amplifiers
  • Installation: Mounts on light mast or universal portable support (not included)

FAQ

Does the antenna require an antenna tuner?

Although the antenna is adjustable, the use of an antenna tuner (ATU) is recommended to optimize the SWR across all HF bands, especially depending on the installation environment.

Can it be used permanently outdoors?

It is primarily designed for portable use. Although it is robust, a permanent fixed installation would require additional protection against water infiltration at the connectors.

Is it compatible with digital modes like FT8?

Yes, its thermal management and power capacity allow the use of digital modes, although it is advised to reduce the power by about half, i.e., 200W max. in FT8 with this antenna.

How is the band change made?

The band change is made by adjusting the length of the telescopic elements or using loading coils depending on the specific model configuration.

Can I install it on a balcony?

Yes, its dipole or inverted V configuration allows installation in confined spaces, provided it is sufficiently distanced from metal structures and counterweights are planned, especially for the lower bands.
