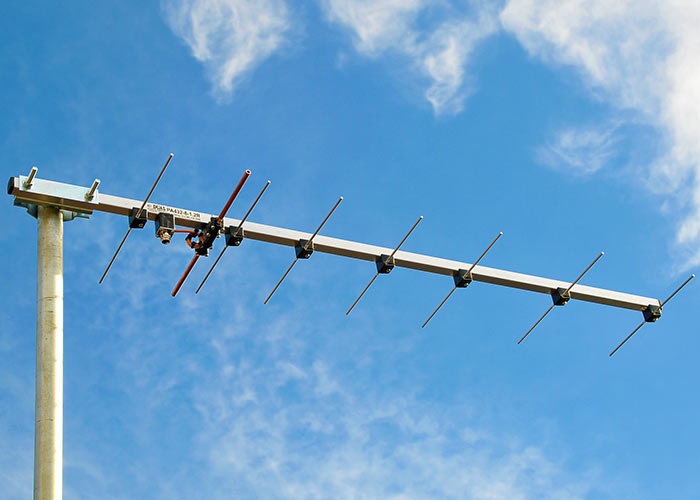

70cm 430-440MHz 8 elements 12.8 dBi Rear Mount 70cm8WR (AA) View larger
Antennas Amplifiers

AA-1500-70cm8WR-2360

New product

Serbia

70cm 430-440MHz 8 elements 12.8 dBi Rear Mount 70cm8WR (AA)

rating Read the review
Average rating: 5/5 Number of reviews: 1

Small portable or balcony 70cm WideBand Antenna Rear Mount 70cm8WB1R 430-440MHz.

Suitable for DXing in stacks of four or eight antennas, or in vertical polarization for repeaters. Weight less than 1kg.

70cm WideBand Antenna Rear Mount 70cm8WR 430-440MHz.

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

120,96 € tax excl.

In stock

   2 Items

Data sheet

70cm WideBand Antenna Rear Mount 70cm8WB1R

What does 70cm8WR mean?

  • 70cm – 70cm band
  • 88 elements
  • WWideBand version. Covers 430-440 MHz with low SWR
  • RRear mount antenna

Electrical Specifications of 70cm WideBand Antenna Rear Mount 70cm8WR

  • Frequency Range: 430 – 440 MHz
  • Free Space Forward Gain: 12.8 dBi
  • Front-to-Back Ratio: 25 dB
  • -3 dB Horizontal Beamwidth: 40.5°
    Polarization: Horizontal or vertical
  • Nominal Input Impedance: 50 Ohms
  • SWR Across Entire Band: < 1.2
  • Maximum Power Input: 850W
  • Matching Method: Direct feed through common mode choke (current balun)
  • Connector: “N”

Mechanical Specifications of Rear Mount 70cm8WR antenna

  • Number of elements: 8
  • Element Diameter: 4 mm Aluminum rod
  • Dipole Diameter: 8 mm Hard Copper tube plastic coated
  • Longest element: 340 mm
  • Element Mounting Position: Below the Boom
  • Balun and Connector: Included
  • Boom Length: 1.18 m
  • Boom Size: 20 x 20 mm
  • The number of Boom Pieces: 1
  • Guy rope support: Not necessary. Strong boom
  • Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
    Survival Wind Speed: 150 km/h
  • Net Weight: 0.9 kg
    Gross Weight: 1.7 kg
    Transportation Length: 120 cm

Antennas-Amplifiers Product Benefits:

  • F/B and G/T superiority.

All antennas have been calculated using state-of-the-art full 3D Electromagnetic Simulation Software including the influence of the boom, bracket, baluns, and connectors. The performance of antennas designed using these techniques is exceptional, far better than antennas designed using “wire” programs

  • No tuning antennas

Before dispatch, we assemble each antenna and test antenna characteristics. That means you may expect exceptionally good electrical and mechanical attributes including low SWR across the designed range immediately after assembling.
No need to tune the dipole, or any other element to get perfect SWR on the intended frequency range. Everything is pre-tuned.

  • Easy to set up

Everything is labeled, just put number to number. The antenna can be assembled with hand tools in a couple of minutes.
Everything is included in the antenna box: Antenna, balun with connector, and bracket. Yours is to assemble and have fun!

The old name of the antenna was PA432-8-1.2R.

Reviews

Click here to leave a review

rating 5
70cm 430-440MHz 8 éléments 12.8 dBi Montage arriè
foctione tres bien très bonne qualité
