Yaesu FTDX10 HF SDR transceiver 160m - 6m 100W

The Yaesu FTDX10 HF SDR transceiver base station is the latest FTDX / Yaesu SDR to uses the hybrid SDR receiver (narrowband and direct sampling) of the high-end FTDX101 transceiver.

The FTDX-10 covers all HF amateur radio bands from 160m to 6m with a power of 100W max, it has a large 5 inch (12.6cm) color touch screen with a 3D display of the spectrum, 15 pass-band filters, IF SHIFT / WIDTH, IF NOTCH DNF, DNR, COUNTOUR functions to eliminate QRMs and a built-in high speed automatic antenna tuner with 100 memories.

Supplied with: 1 Yaesu FT-DX10, 1 SSM-75E handheld microphone, 1 12V power cable with fuse, 1 6.3mm connector, user manual in English.

More details

Download

Leaflet FT-DX10

6.4M

Manual FTdx10 (EN)

Manual and complete instructions in English for the Yaesu FTdx10. 7.49M

More info

FT-DX10 Yaesu SDR datasheet

Hybrid SDR configuration: Narrow-bandwidth and direct-sampling
SD card memory slot
Remote control via the Internet with the optional LAN module (SCU-LAN10)
HRDDS (High Resolution Direct Digital Synthesizer) 250 MHz Ultra Low Noise Local Oscillator System
15 separate band pass filters (BPF)
Efficient QRM rejection with IF DSP (IF SHIFT / WIDTH, IF NOTCH / DNF, CONTOUR, DNR, APF)
High quality and very stable final amplifier using the new RD70HUP2 push-pull MOSFET
5 inch (12.7cm) color touchscreen and 3D SS (3-dimensional spectrum flow) display

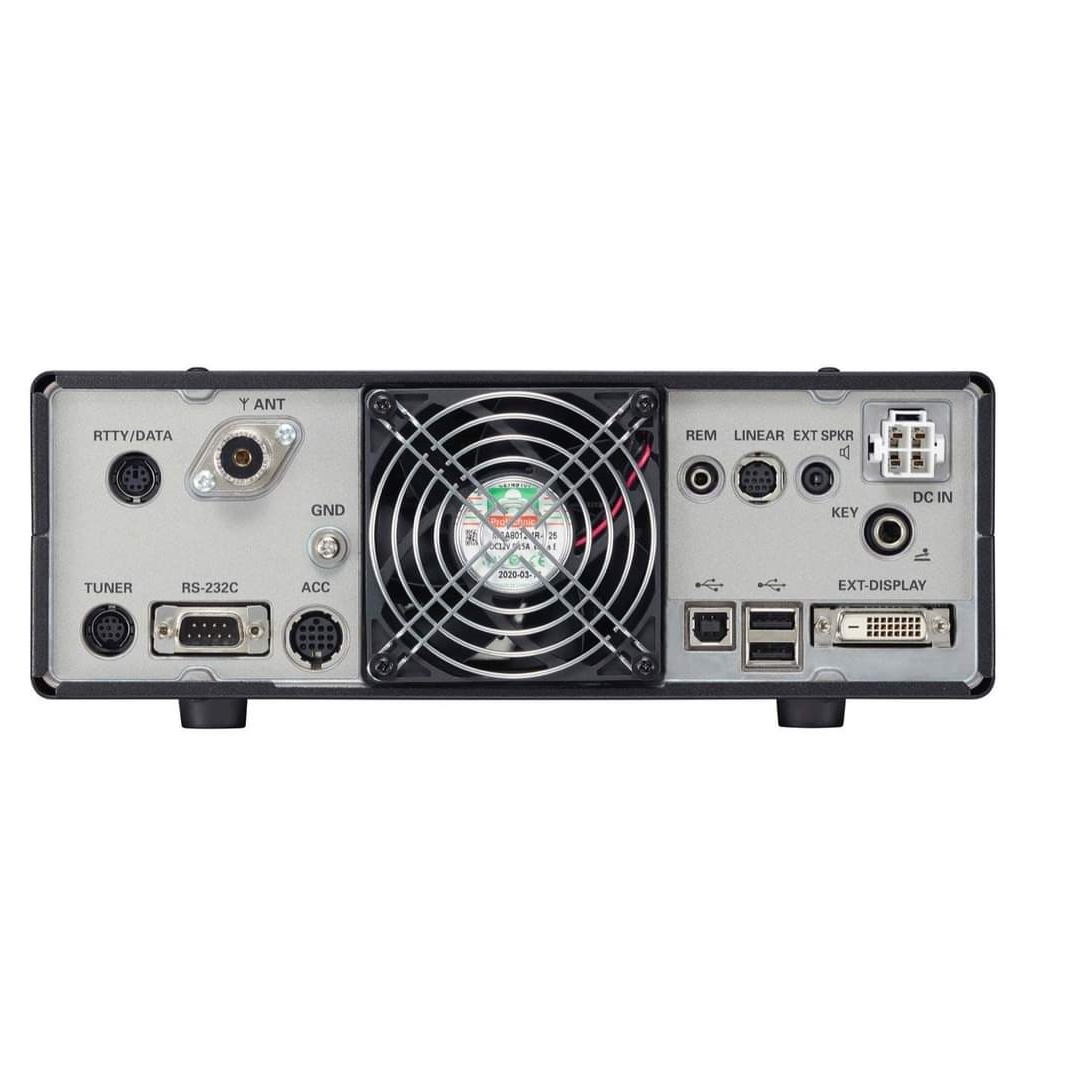

External display video output: DVI connector
Integrated CAT control with a single USB cable
Quick memory bank function (QMB)
CW mode support
RTTY (FSK) / PSK encoding / decoding function
RF gain selection by IPO
Automatic gain control
Quick Split function

Frequency ranges

RX reception:
30kHz - 75MHz *
1.8 MHz to 29.699999 MHz
50 MHz - 53.999999 MHz

TX emission:
1.8 to 54 MHz (amateur radio bands only) + 5.351500 to 5.366500 MHz band
Modulation type: A1A (CW), A3E (AM), J3E (LSB, USB), F3E (FM), F1B (RTTY), G1B (PSK)
Frequency stability: ± 0.5ppm
Supply voltage: DC 13.8V ± 15%
Circuit type: Double conversion superheterodyne
Intermediate frequencies: 1st IF 9.005 MHz - 2nd IF 24 kHz
RF output power: 5W to 100W (CW, LSB, USB, FM, RTTY, Packet) - 5W to 25W (AM)
Dimensions: 266 x 91 x 263 (mm)
Weight: 5.9 kg
CE standards and 2 year warranty

* Only UK version has 70Mhz band, EU version covers up to 54Mhz only.
