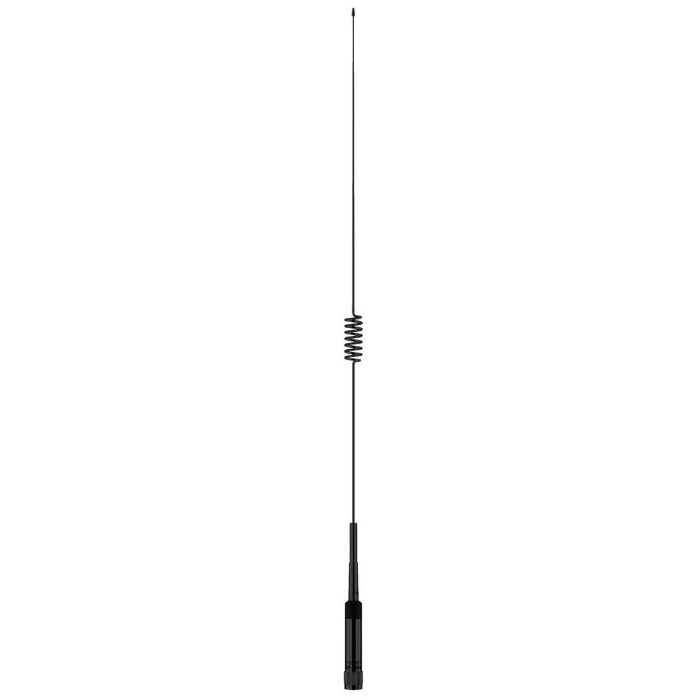

DIAMOND NR760HB mobile 144/430MHz radialless and tiltable antenna
No review at the momentThe Diamond NR-760HB mobile antenna is designed for the VHF (2m) and UHF (70cm) bands and to operate without the need for a ground plane (radialless), it has a PL259 plug for screwing onto an SO-239 base.
Capable of handling transmitting power of up to 150 watts, the NR-760HB has a tilting arm and is black in colour.
It weighs just 200g and has a maximum SWR of 1.5:1.
Supplied with: 1 Diamond NR760HB antenna, guaranteed 100% original.
Data sheet
- Frequency: 144/430MHz (2m/70cm)
- Gain: 2.15dBi (144MHz), 5.2dBi (430MHz)
- Max power rating: 150W FM
- Impedance: 50Ω
- SWR: less than 1.5
- Connector: UHF male (PL259)
- Length: 80cm
- Weight: 200g
- Type: 1/2 wave (144MHz), 2x 5/8 wave (430MHz)
- Strand colour: black
