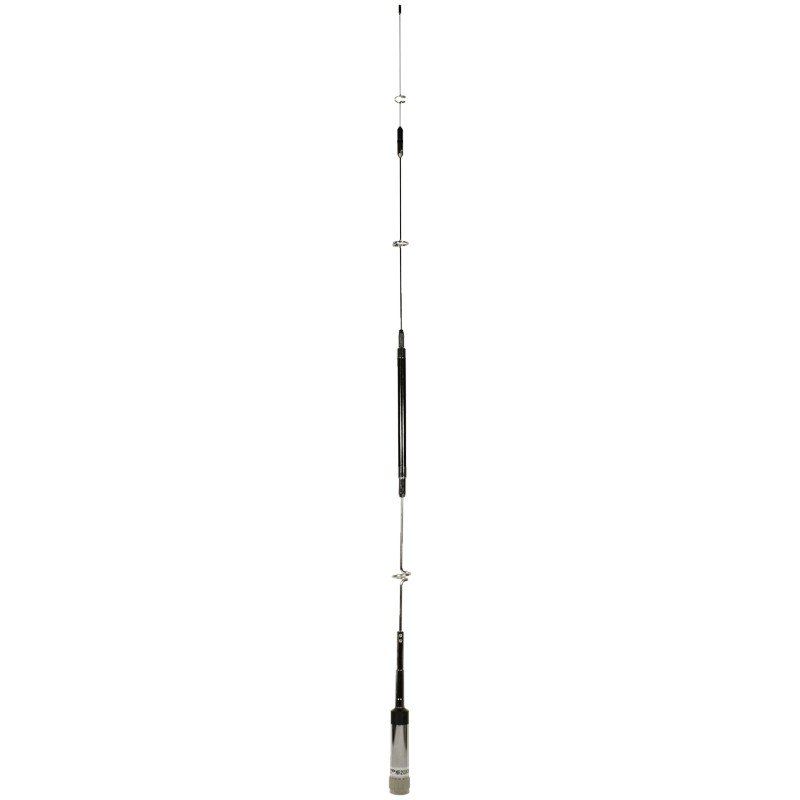

144/430/1200MHz Triband Mobile Antenna DIAMOND NR-2000N

Read the review

Average rating: 5/5 Number of reviews: 1

Tri-band mobile antenna 144/430MHz/1200Mhz (2m, 70cm and 23cm) Diamond NR-2000N, original warranty Diamond Antenna Japan.

Antenna type: C-Load - Works without radians or ground plane
Strand type: 1/2 wave (144MHz), 2x 5/8 wave (432MHz), 5x 5/8 wave (1200MHz)
Gain: 3.15dBi (144MHz), 6.3dBi (430MHz), 9.7dBi (1200MHz)
Max Power : 100W (144/430Mhz) and 50W (1200Mhz)
Length: 0.99m
Weight: 300g
Impedance: 50 ohms
ROS: Less than 1.5: 1
Connector: N male

Delivery info: This antenna is considered a large package and the carriers apply an extra charge for shipping.

Download

Manual NR-2000N Diamond (EN)

User manual and datasheet in english Diamond Antenna NR2000N 297.32k
