Contest DX Yagi 144 MHz low noise antenna 11 elements 14.8dBi 2m11DXAL (AA)

rating No review at the moment

2m11DXAL low noise 11 element portable VHF antenna for DX, contests and EME from Antennas Amplifiers.

144 to 145 MHz antenna. Excellent for portable VHF contests or EME. Low noise design.

Yagi 11 element high gain antenna 14.8 dBi

Boom length 1460 mm.

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

299,00 € tax excl.

In stock

   1 Item

Data sheet

2-meter-Low-Noise-Contest-Antenna-PA144-11-6B Portable

Electrical Specifications 2 meter
Frequency Range:
144 – 145 MHz
Free Space Forward Gain:14.8 dBi
Front to Back Ratio:
27 dB
3 dB Horizontal Beam-width:35°
3 dB Vertical Beam-width:38°
G/Ttbd.
PolarizationHorizontal or Vertical
Nominal Input Impedance:50 Ohms
SWR Across Entire Band:< 1.2
Maximum Power Input:More than 500 W, 1500 W available
Matching Method:Direct feed through common mode balun
Connector:“N”
Mechanical Specifications 2 meter
Number of elements:11
Element Diameter:8 mm Aluminum tube
Dipole Diameter:8 mm Hard Copper tube
Longest element:1040 mm
Element Mounting Position:Below the Boom
Balun and Connector:Included
Boom Length:5.72 m
Boom Size:40 x 40 mm + 30 x 30 mm
Number of Boom Pieces:4
Guy rope support:No
Mounting Mast Diameter:43 – 70 mm 1-11/16″ – 2-3/4″ OD
Survival Wind Speed:180 km/h
Transportation Length:1.49 m
Antenna Weight:6.95 kg
Gross Weight: 9.2 kg

Portable 2meter Low-Noise-Antenna-PA144-11-6B

144 MHz Yagi Antenna with Boom length about 6 meter.

11 element Yagi Vertical Stacking Distances for F/S -12.5 dB:

2 Antennas3.1 m for Gain 17.72 dBi (+2.92 dB)
4 Antennas3.3 m for Gain 20.8 dBi (+6 dB)

2 meter 11 element Yagi Antenna Horizontal Stacking Distances for F/S -12.5 dB:

2 Antennas3.3 m for Gain 17.7 dBi (+2.9 dB)
4 Antennas3.6 m for Gain 20.8 dBi (+6 dB)

2m11DXAL 2 meter 11 element Yagi Antenna in “H” frame. Two configurations. Max gain and low side lobes for high noise urban area.

4 Antennas Max GainH=3.25 m V=3.1 m for Gain 20.62 dBi (+5.82 dB) for F/S -12.5 dB
4 Antennas Low Side Lobes (Urban)H=2.88 m V=2.75 m for Gain 20.15 dBi (+5.35 dB) for F/S -17 dB

Low Noise antenna for portable VHF Contest on 144 MHz and EME. 2 meter 144.1

MHz Azimuth Radiation Pattern.

Great suppression of all side lobes.

144MHz Contest Portable Low Noise Yagi Antenna AZ Radiation Pattern

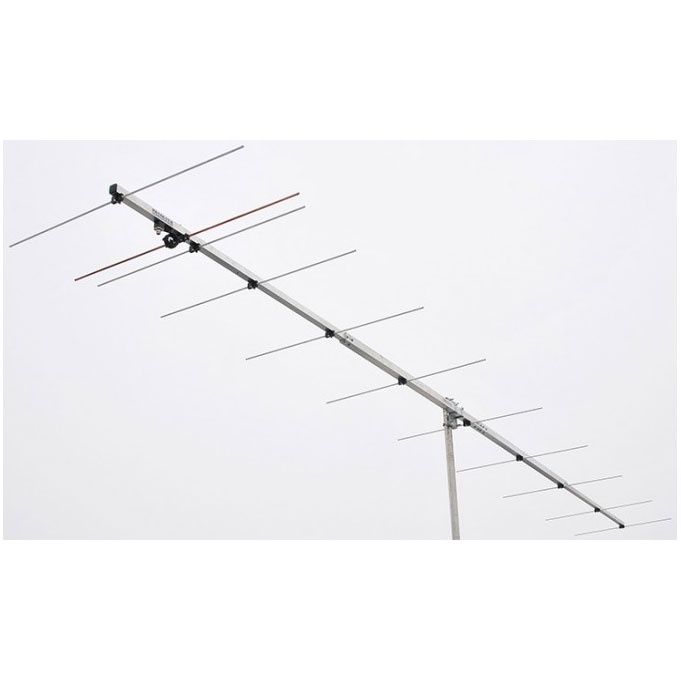

2 meter 144 MHz contest portable Low Noise Yagi Antenna 2m11DXAL.

2m Low-Noise-EME-Antenna-PA144-11-6B portable

Low noise pickup. Dipole, balun and “N” connector detail.

Portable 2m Low-Noise-EME-antenna-PA144-11-6-dipole-view
