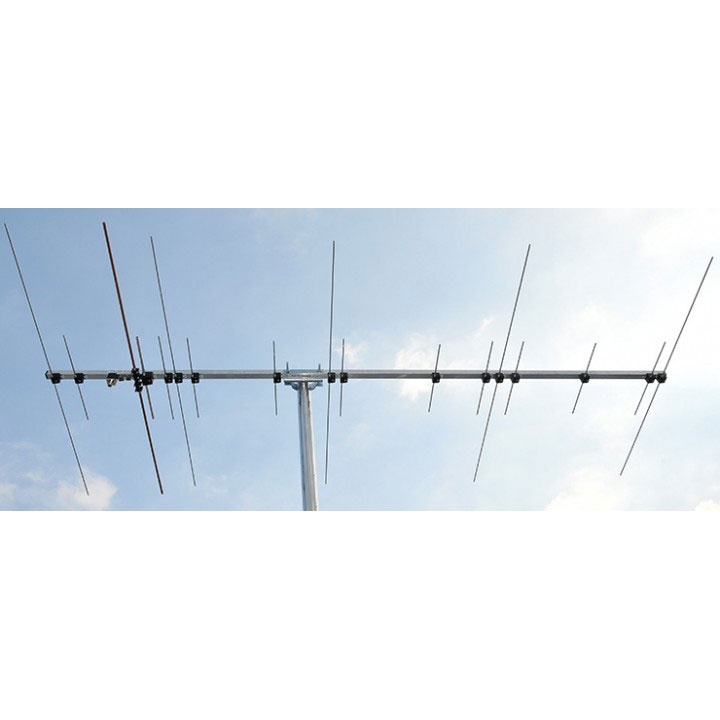

144 & 432 MHz Dualband Yagi 6 & 12 element 11,2 dBi/13,6dBi antenna 2m70cm17WA (AA)

rating No review at the moment

Extra High Gain 144MHz and 432 MHz Dual Band Yagi antenna 17 elements 2m70cm17WA.

Excellent gain 2m 144-146 MHz and 430 – 440 MHz 70cm antenna : 11,2 dBi/13,6dBi.

Wide-band dual band antenna.

Low SWR on all frequencies.

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

154,00 € tax excl.

Available on backorder only, within 10 to 15 days

Data sheet

Dual-Band-Antenna-PA144-432-17-2-2m-70cm-On-The-Air

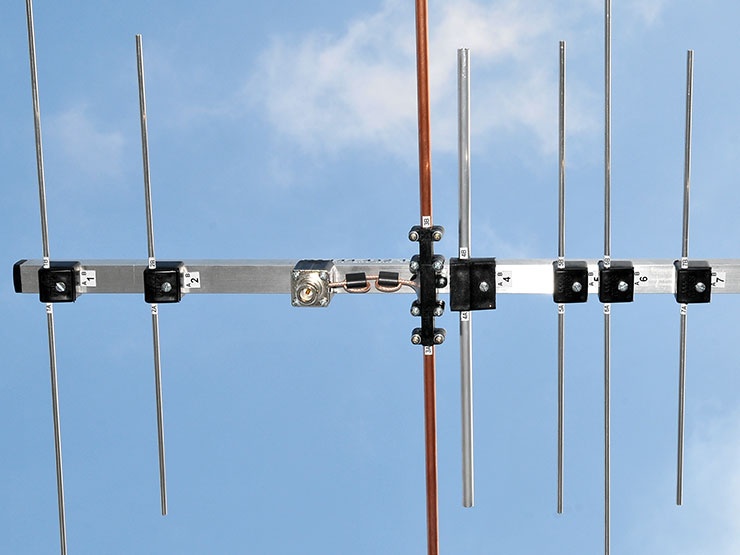

Dipole, balun and connector view:

Dual-Band-Antenna-PA144-432-17-2-Dipole-holder-Connector

 Goliath Bracket View:

2m-70cm-Dual-Band-Antenna-PA144-432-17-2-Marking-Bracket

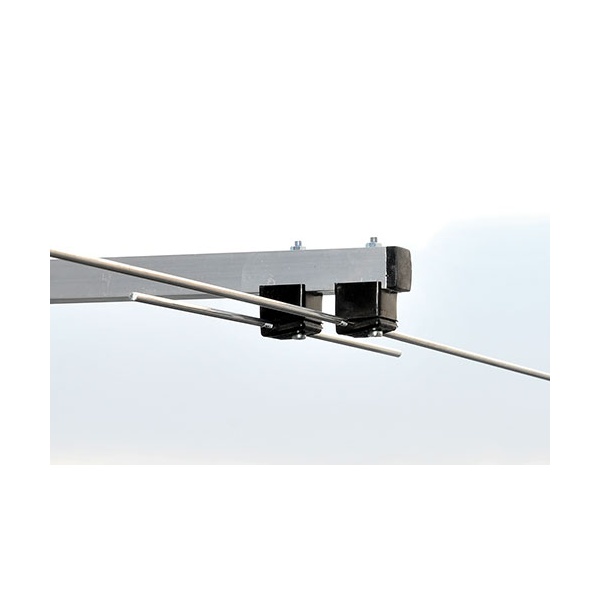

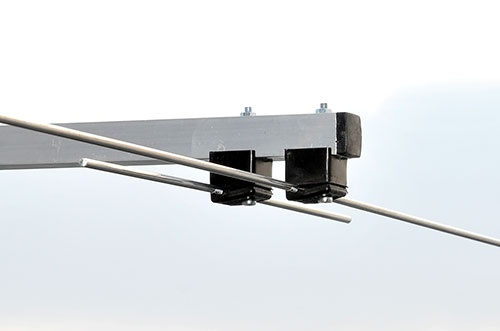

Boom end:

2m-70cm-Dual-Band-Antenna-PA144-432-17-2-End-plastics

 All elements marked:

144-432MHz-Dual-Band-Antenna-PA144-432-17-2-Marking

Electrical Specifications 2 meter
Frequency Range:144 – 146 MHz
Free Space Forward Gain:11.2 dBi
Front to Back Ratio:26 dB
Polarization:Horizontal
Nominal Input Impedance:50 Ohms
SWR Across Entire Band:< 1.2
Maximum Power Input:100 W
Matching Method:Direct feed through RG316 teflon common mode choke (current balun)
Connector:“N” (Common connector for both bands)
Mechanical Specifications 2 meter
Boom Length:2 m
Boom Size:20 x 20 mm
Number of Boom Pieces:2
Element Diameter:4 mm Aluminum rod
Dipole Diameter:8 mm hard Copper tube
Number of elements:6
Longest element:1.03 m
Element Mounting Position:Below the Boom.
Mounting Mast Diameter:43 – 70 mm 1-11/16″ – 2-3/4″ OD
Survival Wind Speed:150 km/h
Transportation Length:1.2 m
Antenna Weight:1.7 kg
Electrical Specifications 70 cm
Frequency Range:430 – 440 MHz
Free Space Forward Gain:13.7 dBi
Front to Back Ratio:27 dB
Polarization:Horizontal
Nominal Input Impedance:50 Ohms
SWR Across Entire Band:< 1.2
Maximum Power Input:50 W
Matching Method:Direct feed through RG316 teflon common mode choke (current balun)
Connector:“N” (Common connector for both bands)
Mechanical Specifications 70 cm
Element Diameter:4 mm Aluminum rod
Number of elements:12
Longest element:0.35 m
Element Mounting Position:Below the Boom

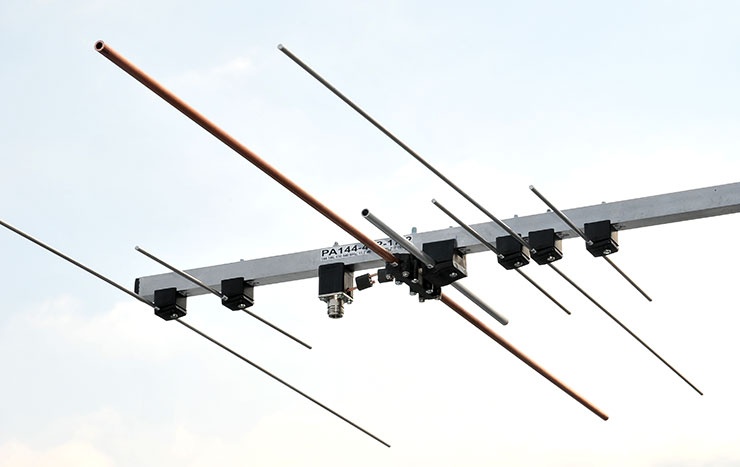

144-432MHz-Dual-Band-Antenna-PA144-432-17-2

 Dipole, balun, connector and marking view:

Dual-Band-Antenna-PA144-432-17-2-Dipole-balun-Connector

 2m70cm17WA label:

144-432MHz-Dual-Band-Antenna-PA144-432-17-2-Label



Old reference was PA144-432-17-2.
