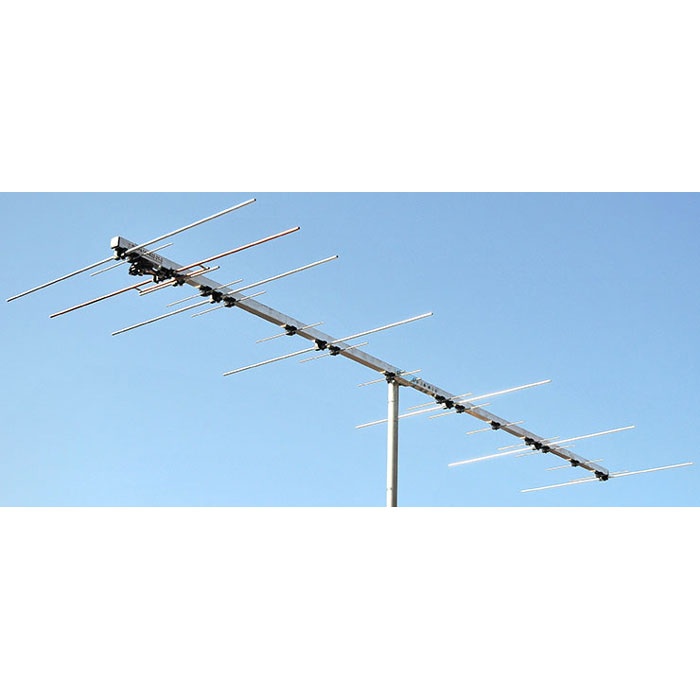

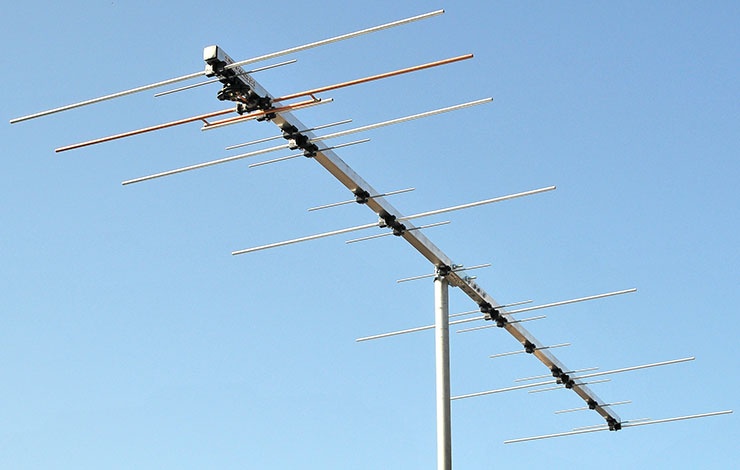

2m 1kW & 70cm 750W DualBand 7 & 14 element Antenna 2m70cm21WAP (AA)

rating No review at the moment

1 kW – 2 m 750 W – 70 cm Common Connector Dual-Band Yagi Antenna 2m70cm21WAP.

Excellent gain 7+14 elements 2m 144-146 MHz and 430 – 440 MHz 70 cm antenna

2m 70cm Dual Band Antenna was former reference PA144-432-21-3AP.

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

219,00 € tax excl.

Available on backorder only, within 10 to 15 days

Data sheet

2m 70cm Dual Band Antenna PA144-432-21-3BP Common-Connector

Dipole, balun and connector view

1kW-2m-750W-70cm-Common-Connector-DualBand-Antenna-PA144-432-21-3-Balun-Connector-Detail

 Easy to mount and dismount 43 – 70 mm bracket:

DualBand-Antenna-PA144-432-21-3-Boom-Join-Bracket

Electrical Specifications 2 meter
Frequency Range:144 – 146 MHz
Free Space Forward Gain:12.8 dBi
Front to Back Ratio:29 dB
3 dB Horizontal Beam-width:40°
Polarization:Horizontal
Nominal Input Impedance:50 Ohms
SWR Across Entire Band:< 1.25
Maximum Power Input:1000 W
Matching Method:Voltage Balun
Connector:“N” (Common connector for both bands)
Mechanical Specifications 2 m
Boom Length:2.92 m
Boom Size:30 x 30 mm
Number of Boom Pieces:2
Element Diameter:8 mm Aluminum tube
Dipole Diameter:8 mm Hard Copper tube
Number of elements:7
Longest element:1.03 m
Element Mounting Position:Below the Boom
Mounting Mast Diameter:43 – 70 mm 1-11/16″ – 2-3/4″ OD
Survival Wind Speed:150 km/h
Transportation Length:1.5 m
Antenna Weight:3.5 kg
Electrical Specifications 70 cm
Frequency Range:430 – 440 MHz
Free Space Forward Gain:15.4 dBi
Front to Back Ratio:23 dB
3 dB Horizontal Beam-width:22°
Polarization:Horizontal
Nominal Input Impedance:50 Ohms
SWR Across Entire Band:< 1.3
Maximum Power Input:750 W
Connector:“N” (Common connector for both bands)
Mechanical Specifications 70 cm
Element Diameter:4 mm Aluminum rod, 8 mm Aluminum tube
Number of elements:14
Longest element:350 mm
Element Mounting Position:Below the Boom

Azimuth Radiation Pattern 144 MHz



1kW-2m-750W-70cm-DualBand-Antenna-PA144-432-21-3-Azimuth-Radiation-Pattern-144MHz

Azimuth Radiation Pattern 432 MHz

Common-Connector-Dual-Band-Antenna-PA144-432-21-3-Azimuth-Radiation-Pattern-432MHz

 Common Connector 2m 70cm

Common-Connector-2m-70cm-Dual-Band-Antenna-PA144-432-21-3

 144 MHz 432 MHz Dual Band Antenna
