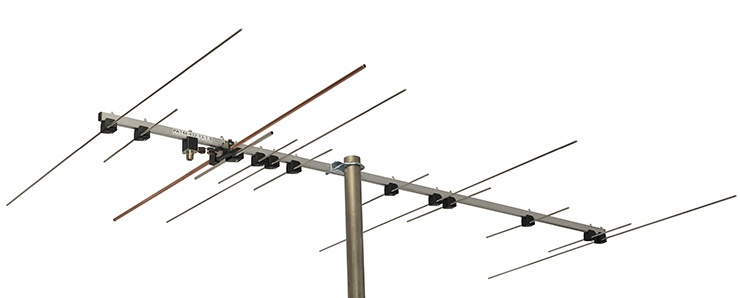

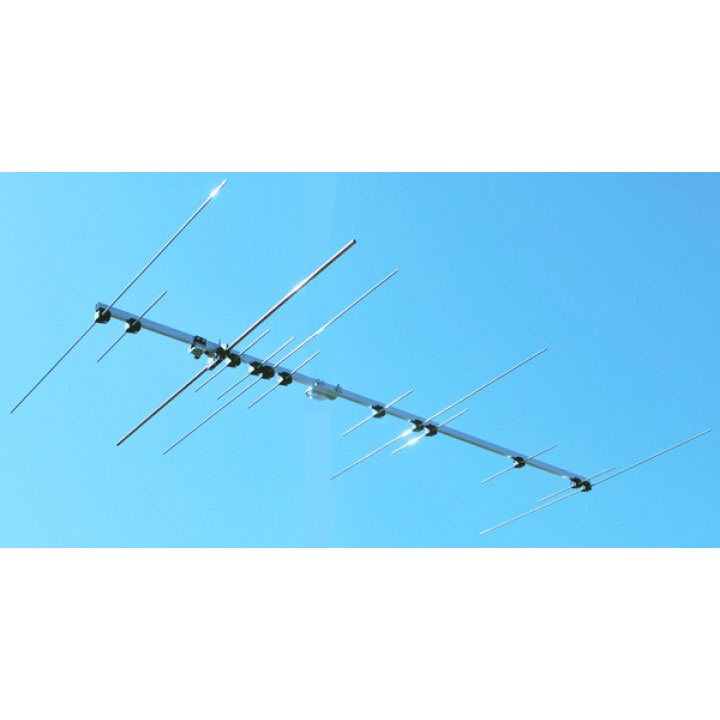

144 & 432 MHz DualBand 13 elements 10,3 dBi Yagi antenna 2m70cm13WA (AA)

No review at the moment

144 MHz and 432 MHz Dual band Yagi antenna 13 elements 2m70cm13WA with common connector, high gain Yagi antenna 144-146MHz 2m and 430-440 MHz 70cm antenna. Dual-band and wide band operation.

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

Data sheet

Dual-Band-2m-70cm-AntennaPA144-432-13-1.5-144-432MHz

Electrical Specifications 2 meter

Frequency Range:	144 – 146 MHz
Free Space Forward Gain:	10.3 dBi
Front to Back Ratio:	27 dB
Polarization:	Horizontal
Nominal Input Impedance:	50 Ohms
SWR Across Entire Band:	< 1.2
Maximum Power Input:	100 W
Matching Method:	Direct feed through RG316 teflon common mode choke (current balun)
Connector:	“N” (Common connector for both bands)

Mechanical Specifications 2 meter

Boom Length:	1.5 m
Boom Size:	12 x 18 mm
Number of Boom Pieces:	1
Element Diameter:	4 mm Aluminum rod
Dipole Diameter:	8 mm hard Copper tube
Number of elements:	5
Longest element:	1.03 m
Element Mounting Position:	Below the Boom.
Mounting Mast Diameter:	30 – 50 mm 1-1/4 – 2″ OD
Survival Wind Speed:	120 km/h
Transportation Length:	1.5 m
Antenna Weight:	1 kg

Electrical Specifications 70 cm

Frequency Range:	430 – 440 MHz
Free Space Forward Gain:	12.5 dBi
Front to Back Ratio:	25 dB
Polarization:	Horizontal
Nominal Input Impedance:	50 Ohms
SWR Across Entire Band:	< 1.2
Maximum Power Input:	50 W
Matching Method:	Direct feed through RG316 teflon common mode choke (current balun)
Connector:	“N” (Common connector for both bands)

Mechanical Specifications 70 cm

Element Diameter:	4 mm Aluminum rod
Number of elements:	9
Longest element:	350 mm
Element Mounting Position:	Below the Boom.
