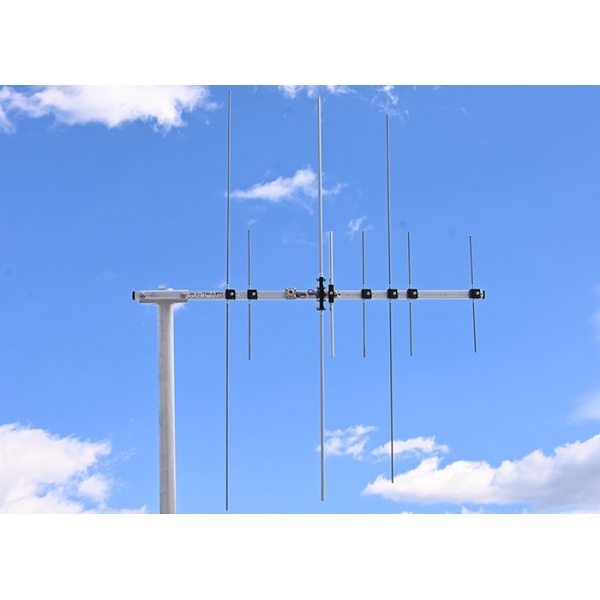

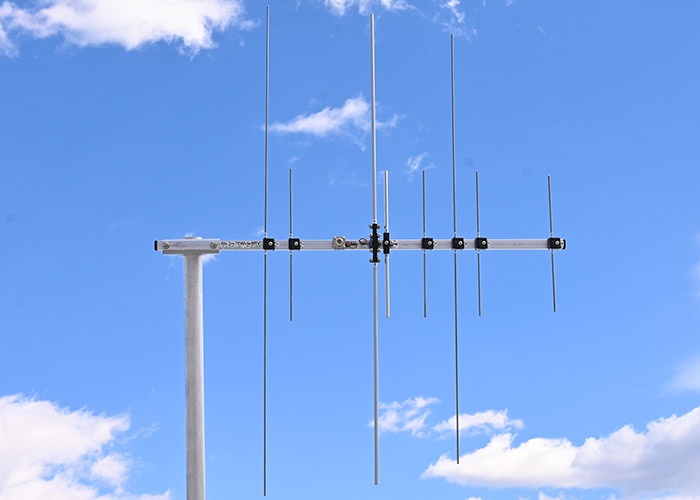

Dual-band beam antenna 144-148 MHz & 430-450 MHz broadband 2m70cm8WRV (AA) View larger
Antennas Amplifiers

AA-1110-2m70cm8WRV-2350

New product

Serbia

Dual-band beam antenna 144-148 MHz & 430-450 MHz broadband 2m70cm8WRV (AA)

rating No review at the moment

Common Connector DualBand 2m 70cm WideBand Antenna 2m70Wide8RV for the IARU Region 1, 2 and 3, cover and tunable 144-148 and 430-450 MHz.

Excellent small portable rear mount common connector dualband 2m 70cm wideband antenna 2m70Wide8RV.

Working FM simplex, repeaters, satellites, or even DX ES is easy with this antenna.

Perfect to put in the car without disassembling.

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

132,72 € tax excl.

In stock

   5 Items

Data sheet

DualBand 2m 70cm WideBand Antenna 2m70cm8WRV

DualBand 2m 70cm WideBand Antenna 2m70Wide8RV

2m Electrical Specifications:

  • Frequency Range: 144-148 MHz (144-146MHz)
  • Free Space Forward Gain: 6.8dBi
  • Front-to-Back Ratio: 17dB
  • Polarization: Vertical
  • Nominal Input Impedance: 50 Ohms
  • SWR Across Entire Band: <1.2
  • Maximum Power Input: 100W
  • Matching Method: Current balun
  • Connector: “N” (Common connector for both bands)

70cm Electrical Specifications:

  • Frequency Range: 430-450 MHz (430-440MHz)
  • Free Space Forward Gain: 11.3dBi
  • Front-to-Back Ratio: 20 dB
  • Polarization: Vertical
  • Nominal Input Impedance: 50 Ohms
  • SWR Across Entire Band: <1.2
  • Maximum Power Input: 50W
  • Matching Method: Current balun
  • Connector: “N” (Common connector for both bands)

Label and Bracket View

DualBand 2m 70cm WideBand Antenna 2m70Wide8RV Label and Bracket View

Mechanical Specifications:

  • 2m Number of Elements: 3
  • 70cm Number of Elements: 5+1
  • Element Diameter: 4 mm Aluminum rod
  • Dipole Diameter: 8 mm Hard Copper tube plastic coated
  • Longest Element: 1030 mm
  • Element Mounting Position: On the side
  • Balun and Connector: Included
  • Boom Length: 0.9m
  • Boom Size: 20x20mm
  • Number of Boom Pieces: 1
  • Guy rope support: Not necessary. Strong boom
  • Mounting Mast Diameter: 43 – 70 mm 1-11/16″ – 2-3/4″ OD
  • Clamp: M8 Stainless Steel
  • Survival Wind Speed: 160km/h
  • Net Weight: 1.1kg
  • Gross Weight: 2kg
  • Transportation Length: 1m

Antennas-Amplifiers Product Benefits:

  • F/B and G/T superiority.

All antennas have been calculated using state-of-the-art full 3D Electromagnetic Simulation Software including the influence of the boom, bracket, baluns, and connectors.

The performance of antennas designed using these techniques is exceptional, far better than antennas designed using “wire” programs.

  • No tuning antennas

Before dispatch, we assemble each antenna and test antenna characteristics. That means you may expect exceptionally good electrical and mechanical performance including low SWR across the designed range immediately after assembling.
No need to tune the dipole, or any other element to get perfect SWR on the intended frequency range. Everything is pre-tuned.

  • Easy to set up

Everything is labeled, just put number to number. The antenna can be assembled with hand tools in a couple of minutes.
Everything is included in the antenna box: Antenna, balun with connector, and bracket.

The old name of the antenna was PA144-432-8-09RAV.
