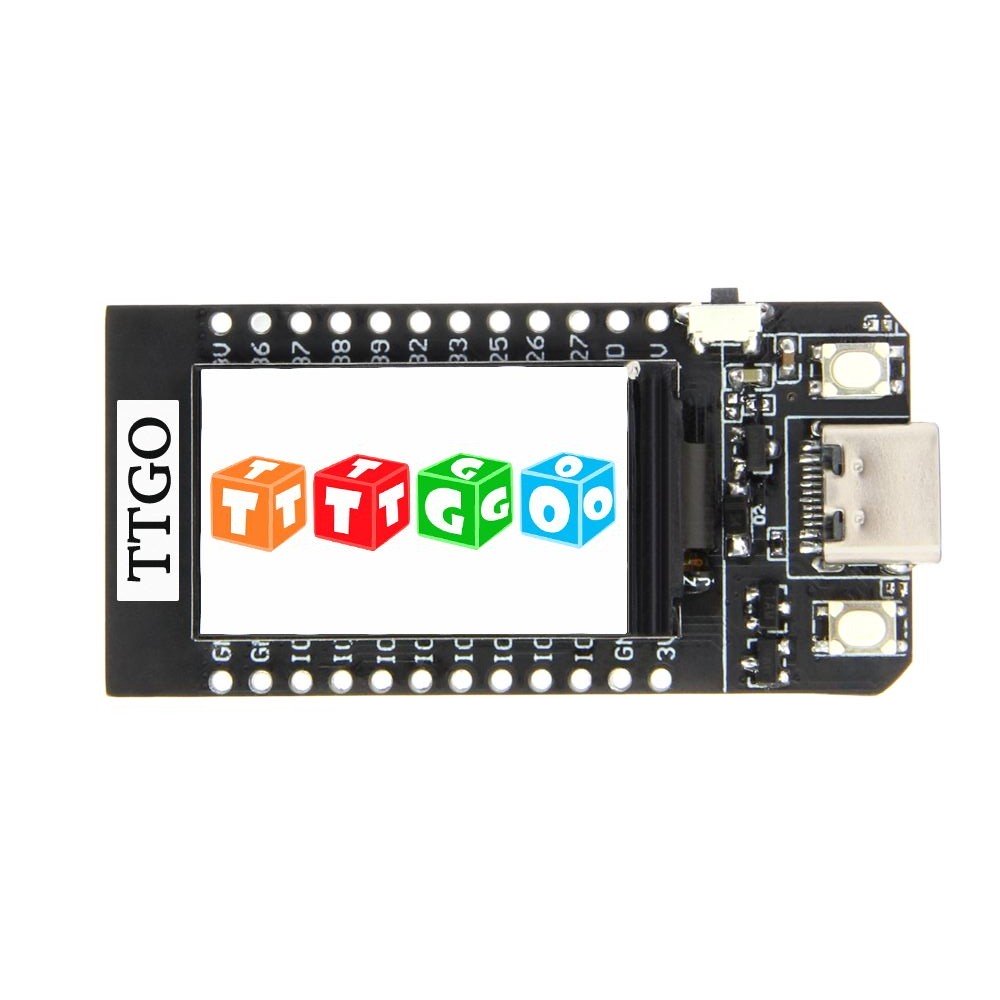

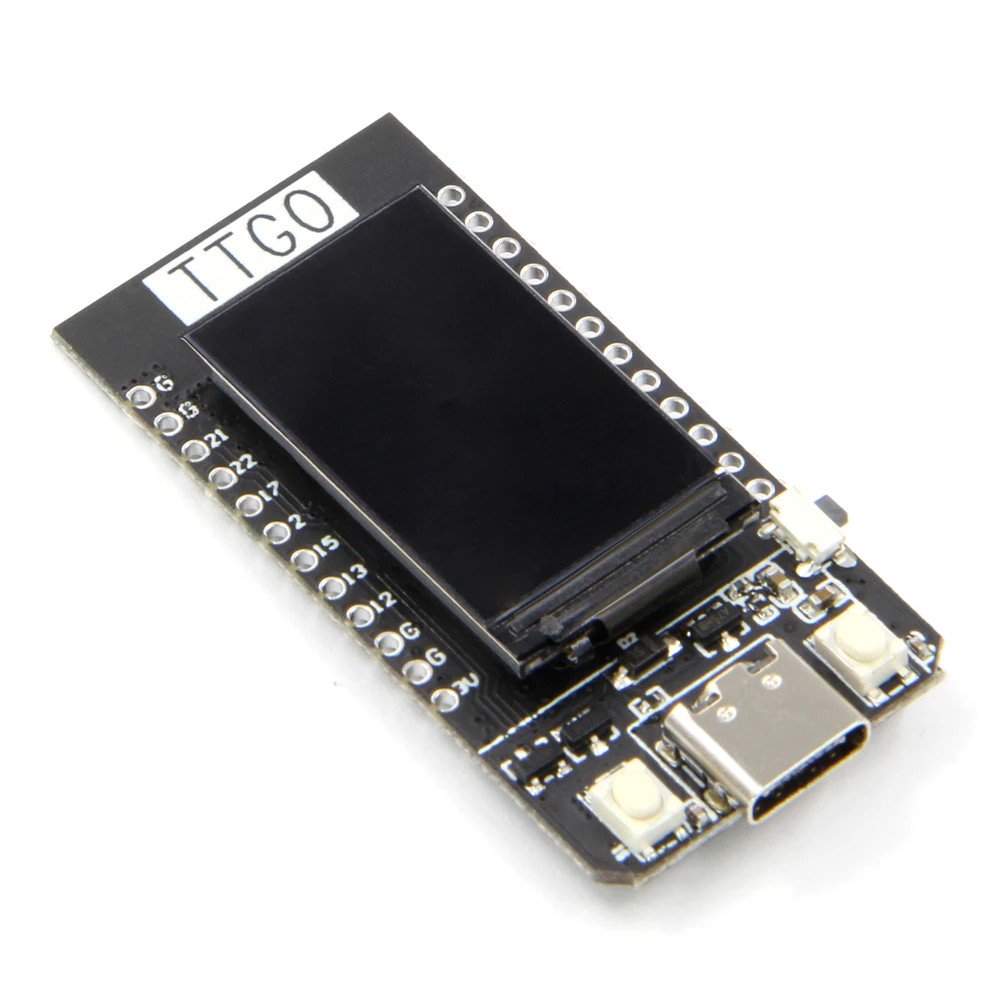

TTGO ESP32 DEV Board for Arduino BLE WIFI LCD
TTGO ESP32 T-Display development board for Arduino, based on the ESP32 microprocessor (32-bit dual-core) and integrates a WIFI connection 802.11 b/g/n, Bluetooth and with a 2.4cm LCD screen.
Compatible with the Arduino development environment.

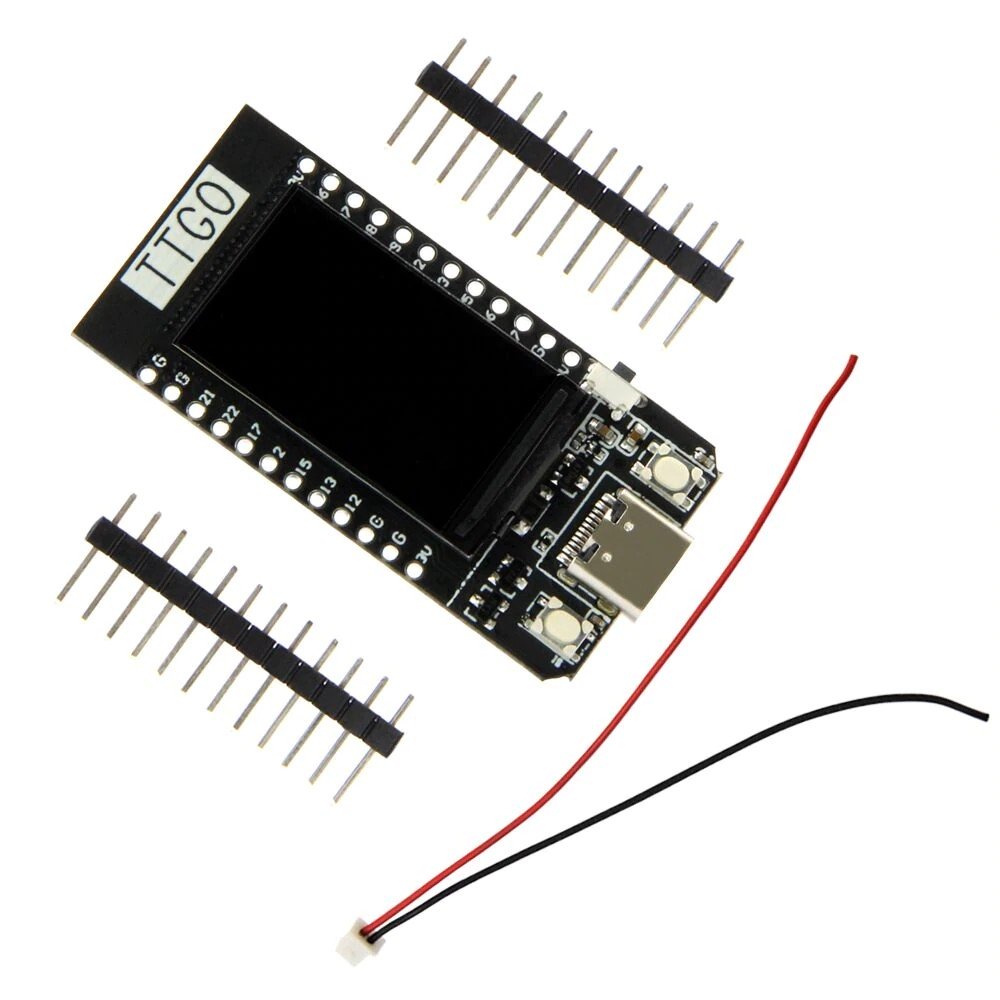

Delivered with: 1 LilyGO ESP32 T-Display v1.1 TTGO development board, 2 headers (soldering), power cable. Battery and USB-C cable not included.
Data sheet
| Chipset | ESPRESSIF-ESP32 240MHz |
| FLASH | QSPI flash 4MB |
| SRAM | 520 kB SRAM |
| USB to TTL | CP2104 |
| Interface | UART, SP, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, ADC |
| Display | IPS ST7789V 1.14 Inch |
| Working voltage | 2.7V-4.2V |
| Working current | About 67MA |
| Sleep current | About 350uA |
| Working temperature range | -40℃ ~ +85℃ |
| Size&Weight | 51.52*25.04*8.54mm(7.81g) |
| Power Supply | USB 5V/1A |
| Charging current | 500mA |
| Battery | 3.7V lithium battery (not included) |
| JST Connector | 2Pin 1.25mm |
| USB | Type-C |
| Standard WI-FI | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC（esp32 chip） |
| Protocol WI-FI | 802.11 b/g/n |
| Frequency range | 2.4GHz~2.5GHz (2400~2483.5Mhz) |
| Transmit Power | 20-22dBm - 100-158mW |
| Communication distance | 300m in open space |
| Protocol Bluetooth | Meet bluetooth v4.2BR/EDR and BLE standard |
| Sensitivity | With -97dBm |
| Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Security | WPA/WPA2/WPA2-Enterprise/WPS |
| WIFI Encryption | AES/RSA/ECC/SHA |
| Firmware upgrade | UART download/OTA |
| Software Development | Support cloud server development / SDK |
| Network protocol | IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT |
| OS | FreeRTOS |
Schema diagram TTGO ESP32 Arduino
