Big Wheel antenna 2425 MHz 2dBi

rating No review at the moment

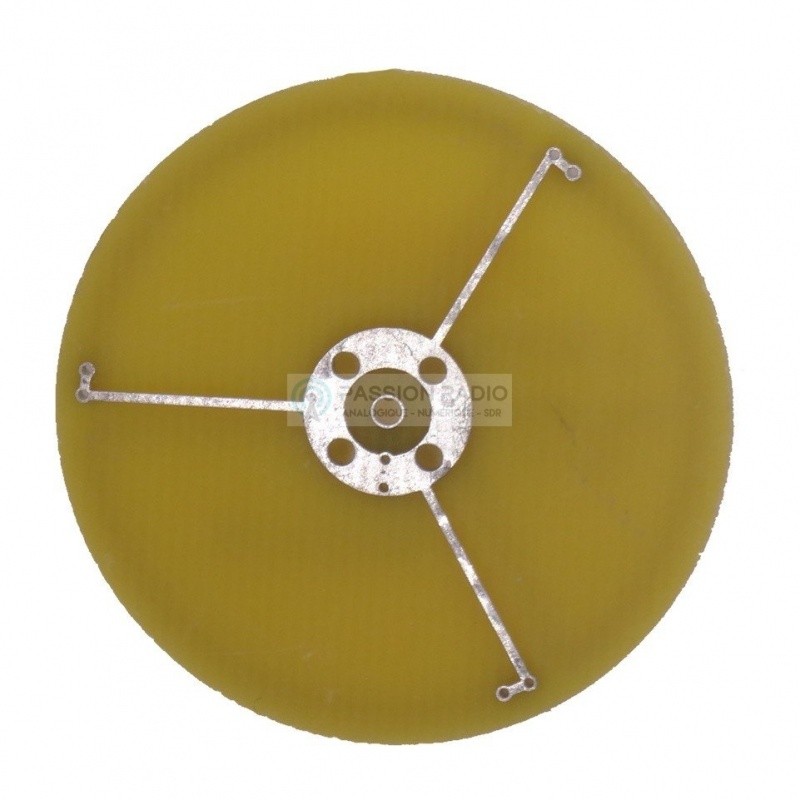

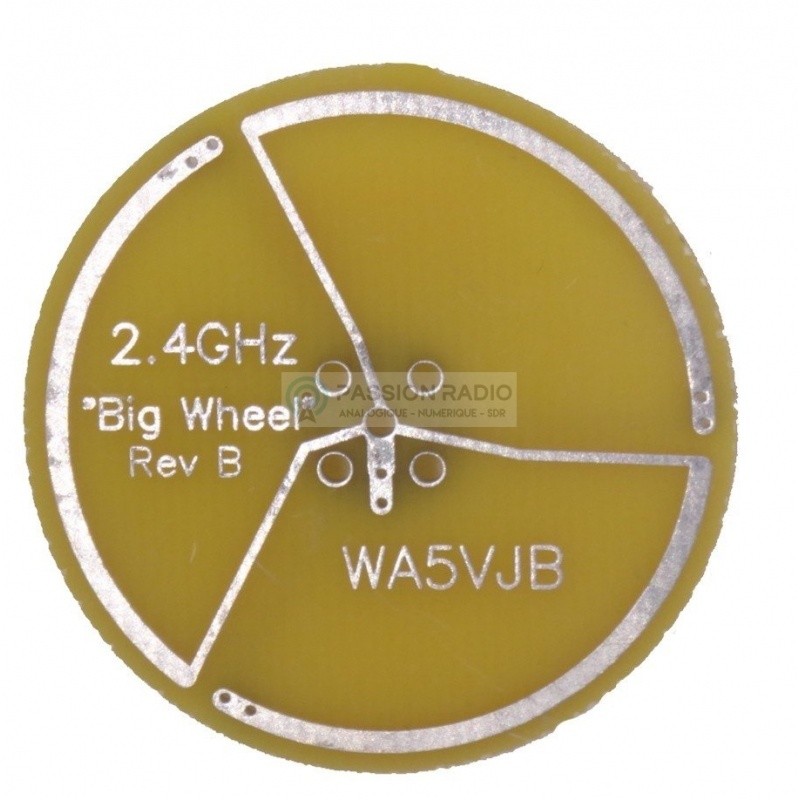

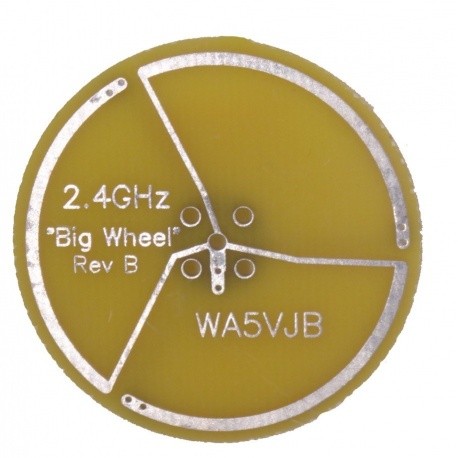

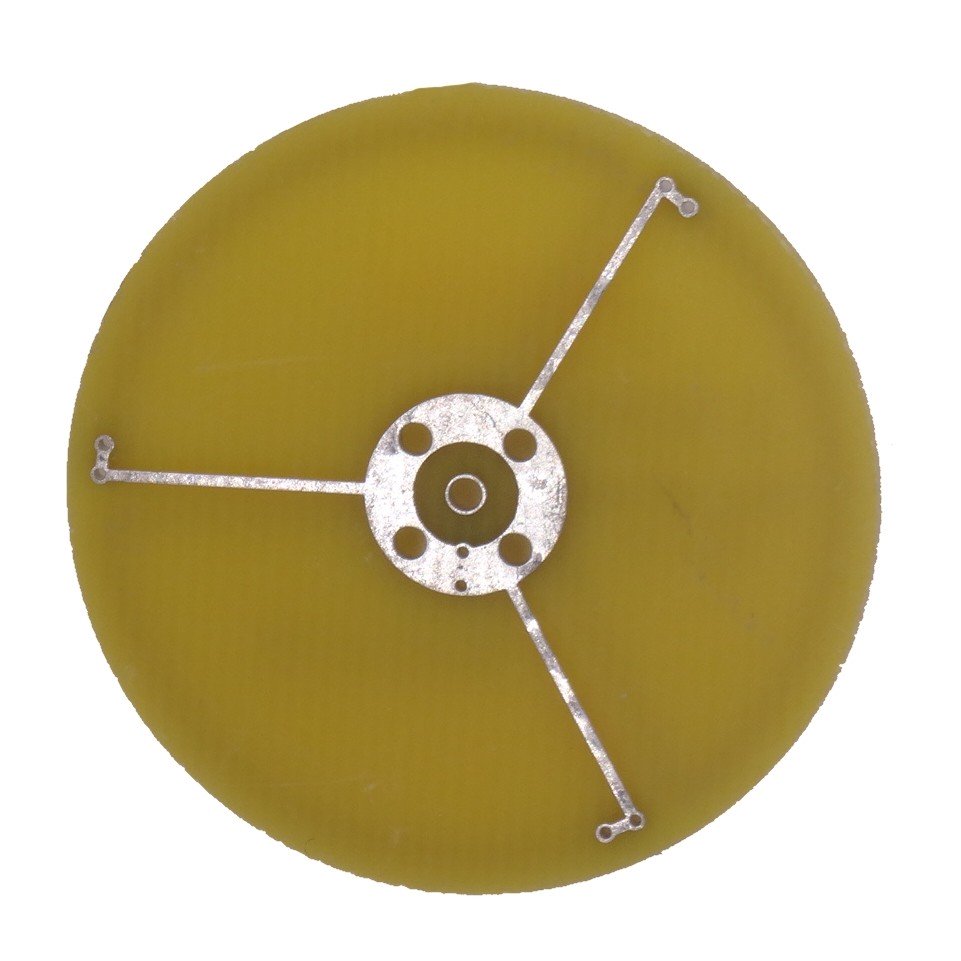

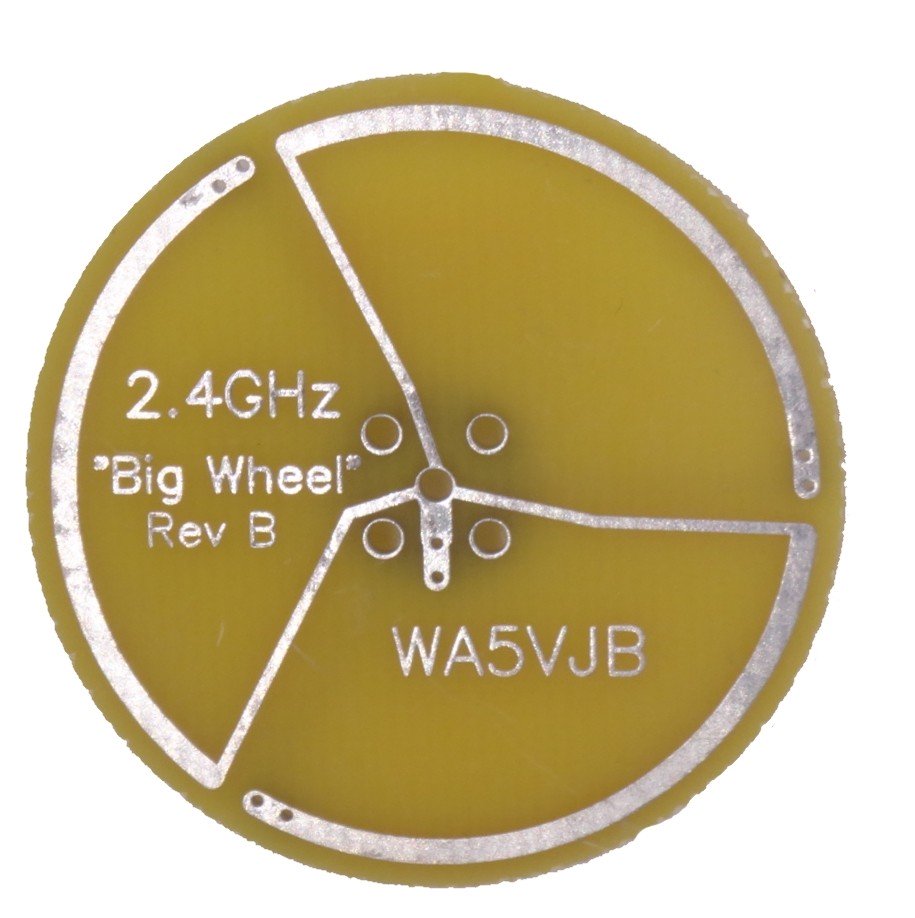

Big Wheel WA5 PCB antenna for 2425MHz with a gain of 2dBi. The antenna is delivered without connector (coaxial cable or SMA to weld on the PCB).

Frequencies: 2425 MHz
Type: Big Wheel
Gain: 2dBi
Impedance: 50 ohms
Amateur radio design: WA5VJB
Dimensions: 40mm diameter
Weight: 3.6 grams

12,90 € tax excl.

This material is no longer available

Download

WA5 Big Wheel 2400Mhz
