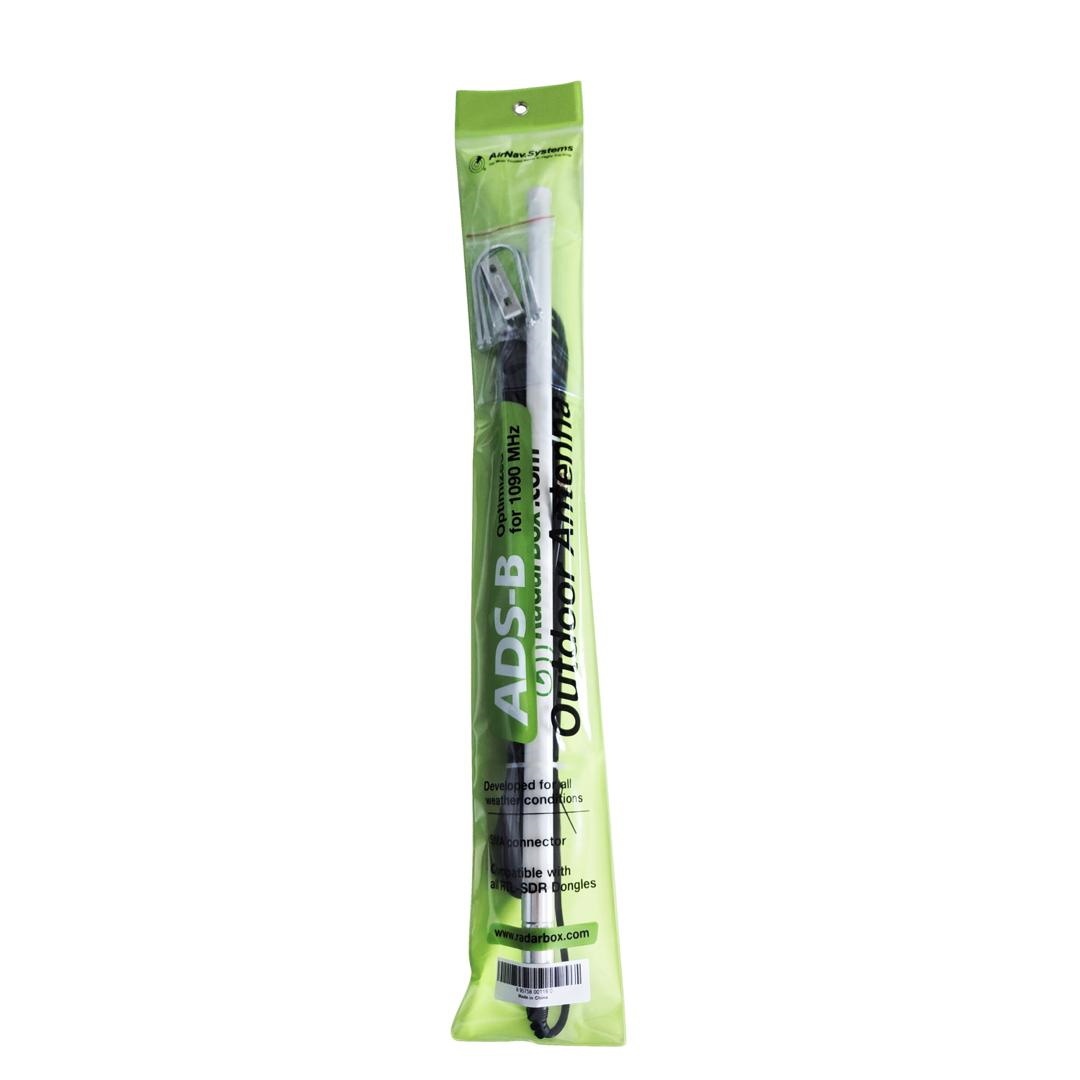

1090 MHz ADS-B outdoor antenna AirNav with SMA

Fixed outdoor fiberglass antenna for ADS-B reception on 1090 Mhz, with SMA connector.

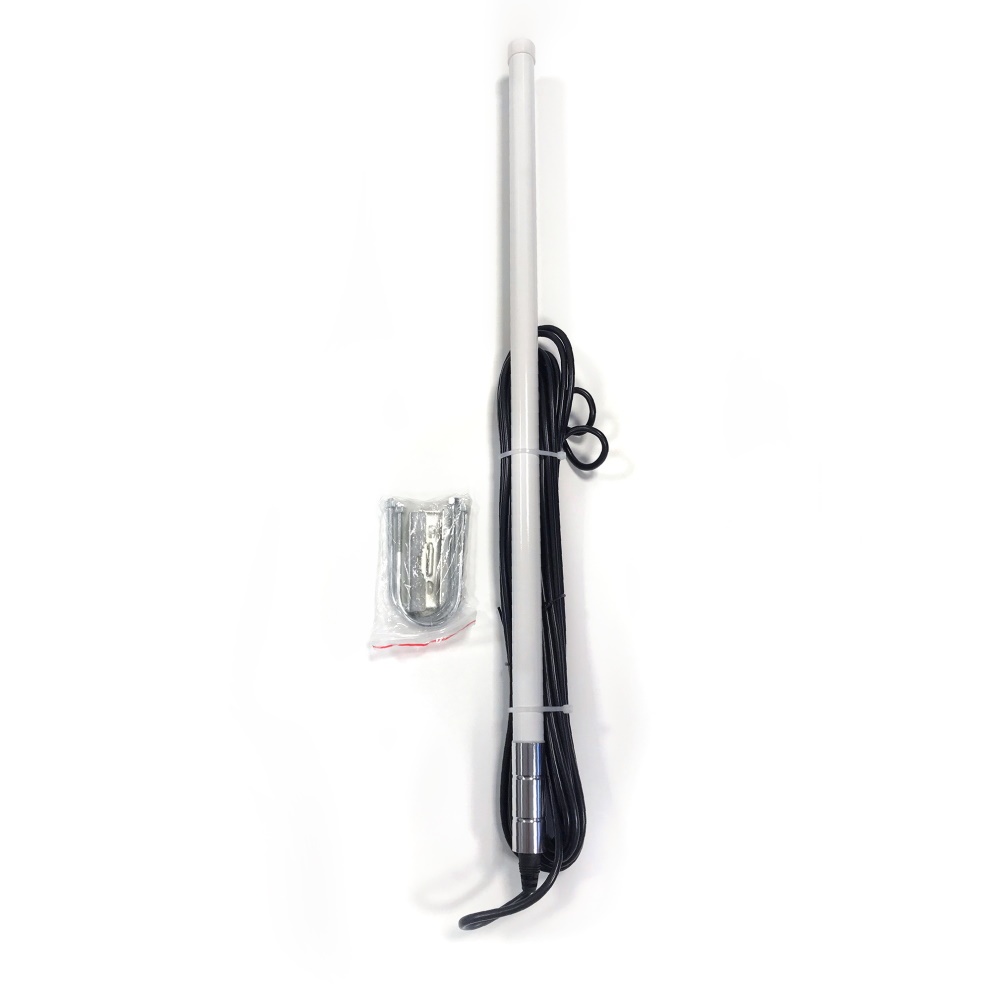

Omnidirectional antenna optimized for long and short range ADS-B reception. It includes a 10 meter coaxial cable, with a female SMA connector and fixing brackets to mount on a 35-70mm diameter mast.

Compatible with AirNav RadarBox Flightsitck ADS-B receiver and any SDR or RTL-SDR receiver with SMA connector.

Supplied with: 1 outdoor ADS-B 1090Mhz AirNav antenna.

More details

Data sheet

AirNav 1090Mhz antenna specifications

Frequency: 1090 MHz
Antenna type: 1/2 wave dipole
UV resistant white fiberglass radome

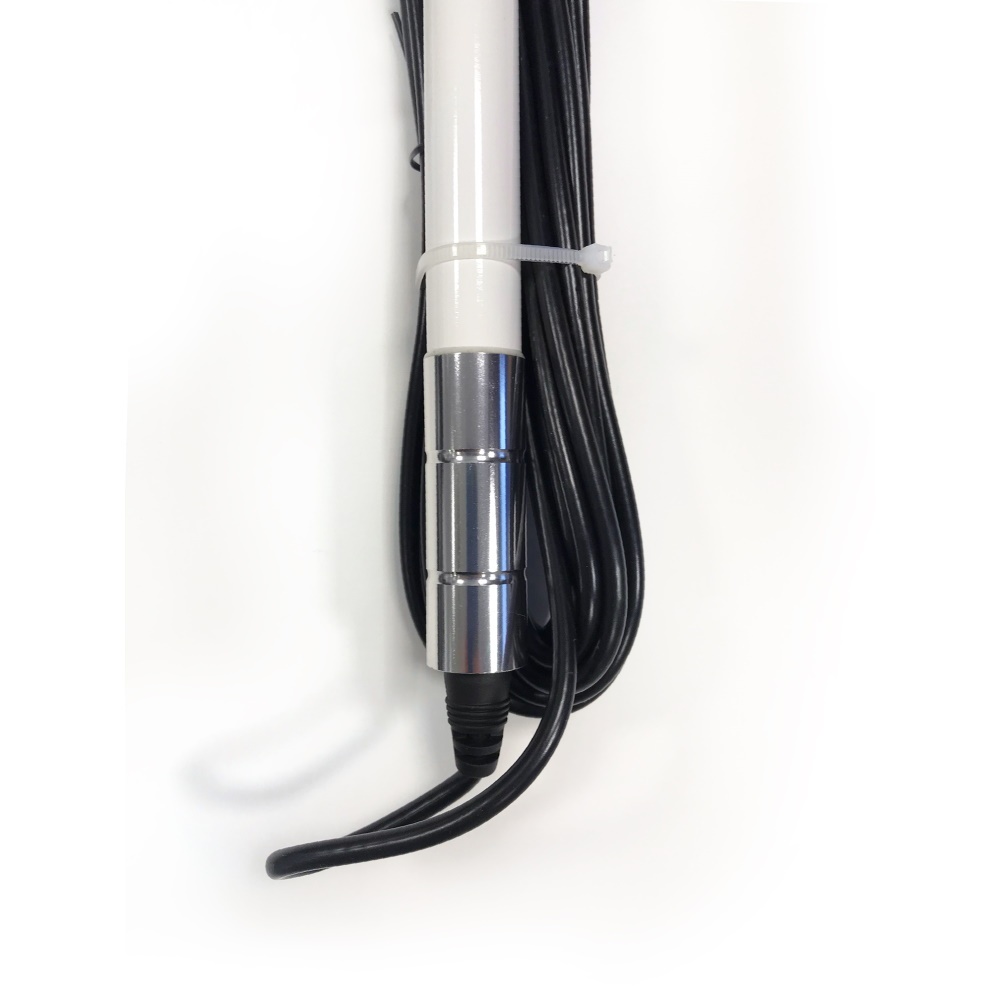

Connector antenna: SMA female
Installation type: Mast Diam 35-70 mm
Polarization Type: Vertical
Impedance: 50 Ohms
CE and FCC certified
2 years warranty
