1090 Mhz SAW Bandpass ADS-B filter F1OPA OPA Design Aviation ADS-B FILTRE-SAW1-ADSB-OPA-804 View larger
OPA Design

FILTRE-SAW1-ADSB-OPA-804

New product

France

Online only

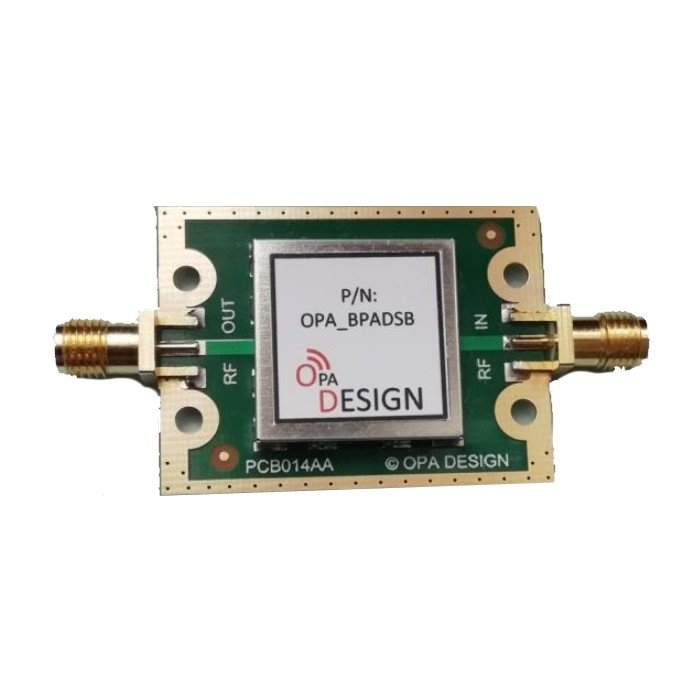

1090 Mhz SAW Bandpass ADS-B filter F1OPA

rating Read the review
Average rating: 5/5 Number of reviews: 1

This ADS-B bandpass/cut filter for 1090Mhz allows to improve the performance and the selectivity of the signal in ADS-B reception and to suppress the signals outside the 1090Mhz band.

Delivered with : 1 SAW bandpass filter 1090Mhz F1OPA.

More details

23,25 € tax excl.

In stock

   6 Items

Download

Datasheet SAW ADSB filter

Data sheet of the filter SAW 1090 Mhz ADSB OPA DESIGN 436.75k

Data sheet

Frequency: 1090 MHz - 1075-1105Mhz
Bandwidth: 30Mhz
Insertion loss: 1.9dB
Out of band attenuation: -40/50dB
Dimensions: 40 x 30 mm

3D printing case compatible by bubux on : https://www.thingiverse.com/thing:5235270
