> Radio Antennas>Air-band>1090 Mhz ADS-B 5dBi Fixed antenna OPA Design
Fixed antenna 1090 Mhz ads-b adsb 1090mhz View larger
Previous Next

OPA Design

OPA-ANT-FIXE2-ADSB-1042

New product

France

1090 Mhz ADS-B 5dBi Fixed antenna OPA Design

rating Read the 2 reviews
Average rating: 5/5 Number of reviews: 2

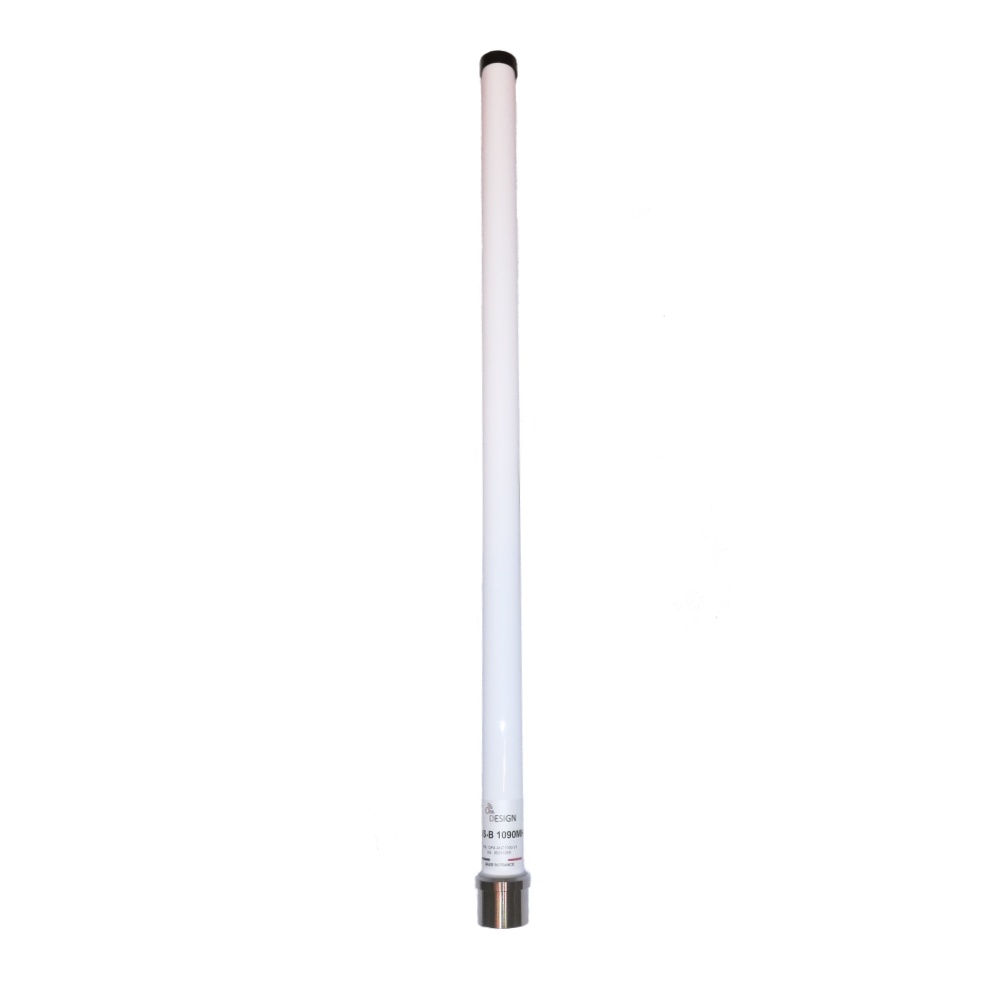

Fixed vertical fiberglass antenna for ADS-B 1090 Mhz reception, for use as an outdoor pole, with mounting bracket included and female N antenna connector.

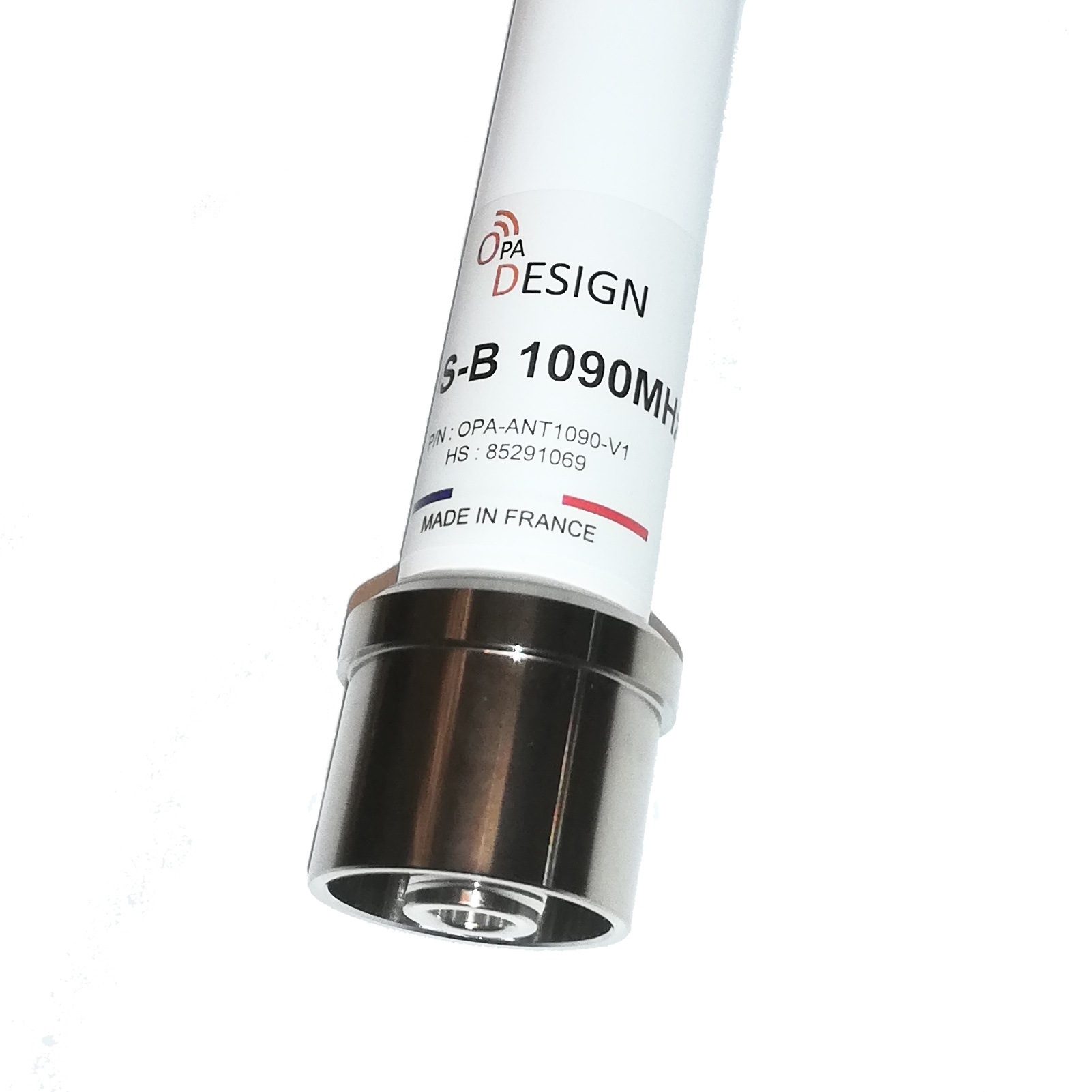

This ADS-B antenna consists of a half-wave dipole with 5dBi gain, encapsulated inside a fiberglass radome with an aluminum mounting base.

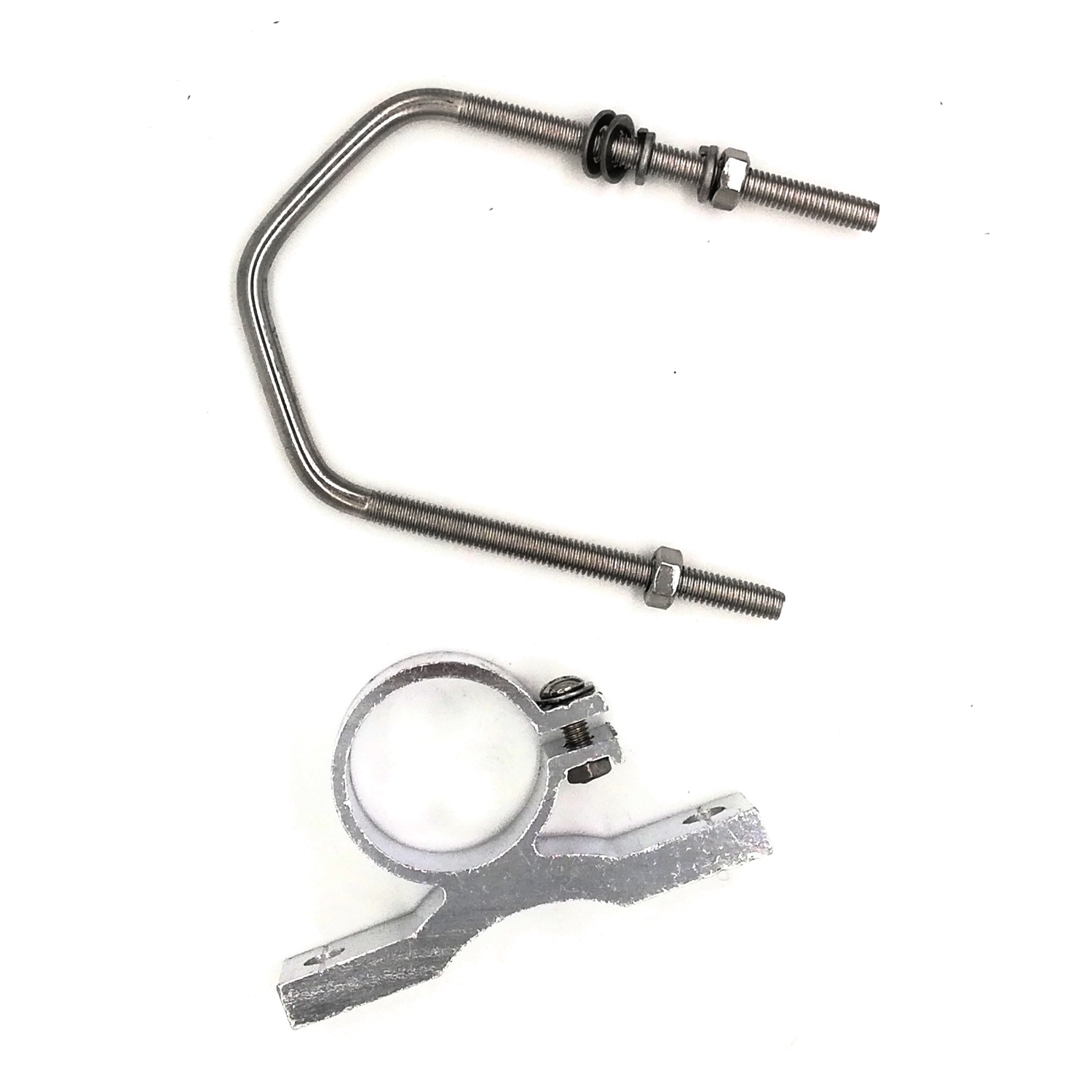

A mast bracket is included for installation on a 35 to 60mm diameter mast.

Supplied with: 1 ADSB 1090 Mhz fixed antenna from OPA Design with fixing bracket included.

More details

63,32 € tax excl.

In stock

   More than 10 Items

Download

Datasheet 1090 Mhz OPA Design

Documentation and technical data of the ADS-B 1090 Mhz OPA Design antenna. 944.58k

Data sheet

ADSB 1090 Mhz antenna specifications

Frequency: 1090 MHz
Antenna type: Dipole 1/2 wave
UV-resistant white fiberglass radome

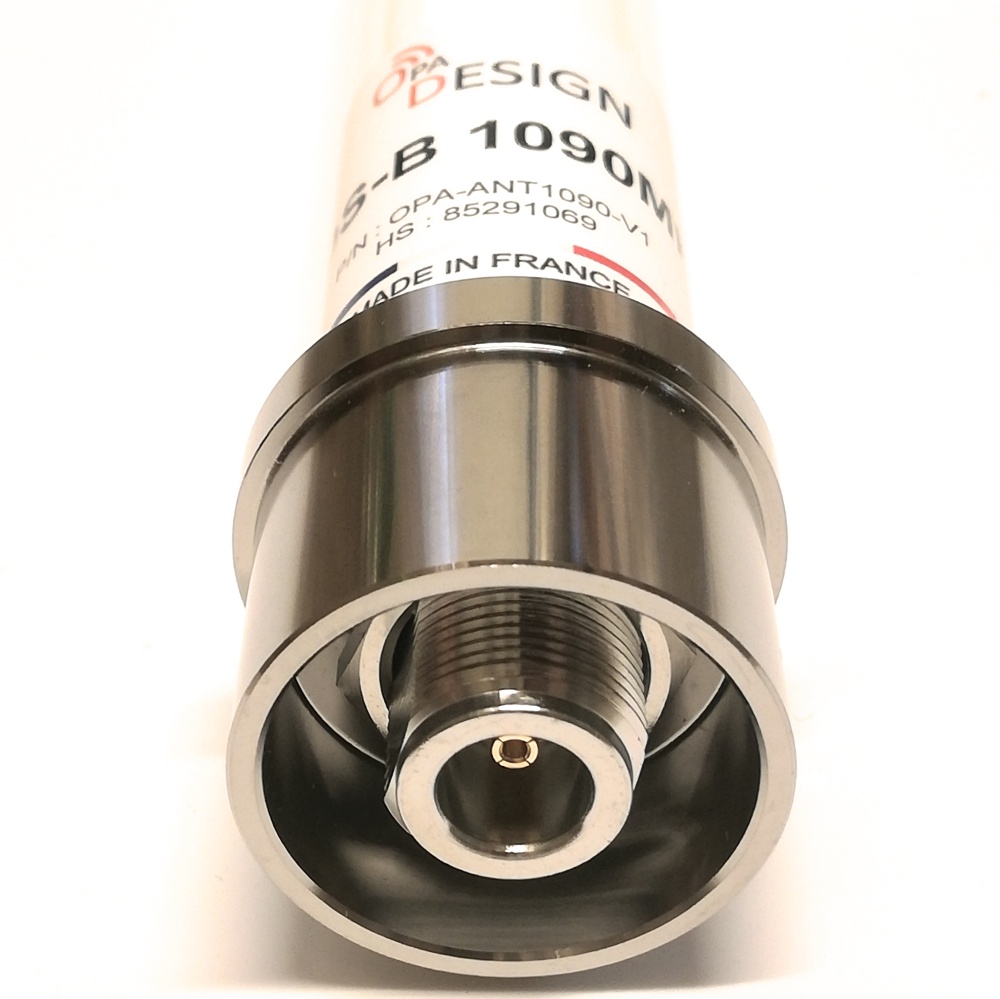

Connector: N female
Installation type: Mast Diam 35-60 mm, with mounting bracket include
Gain: 5dBi

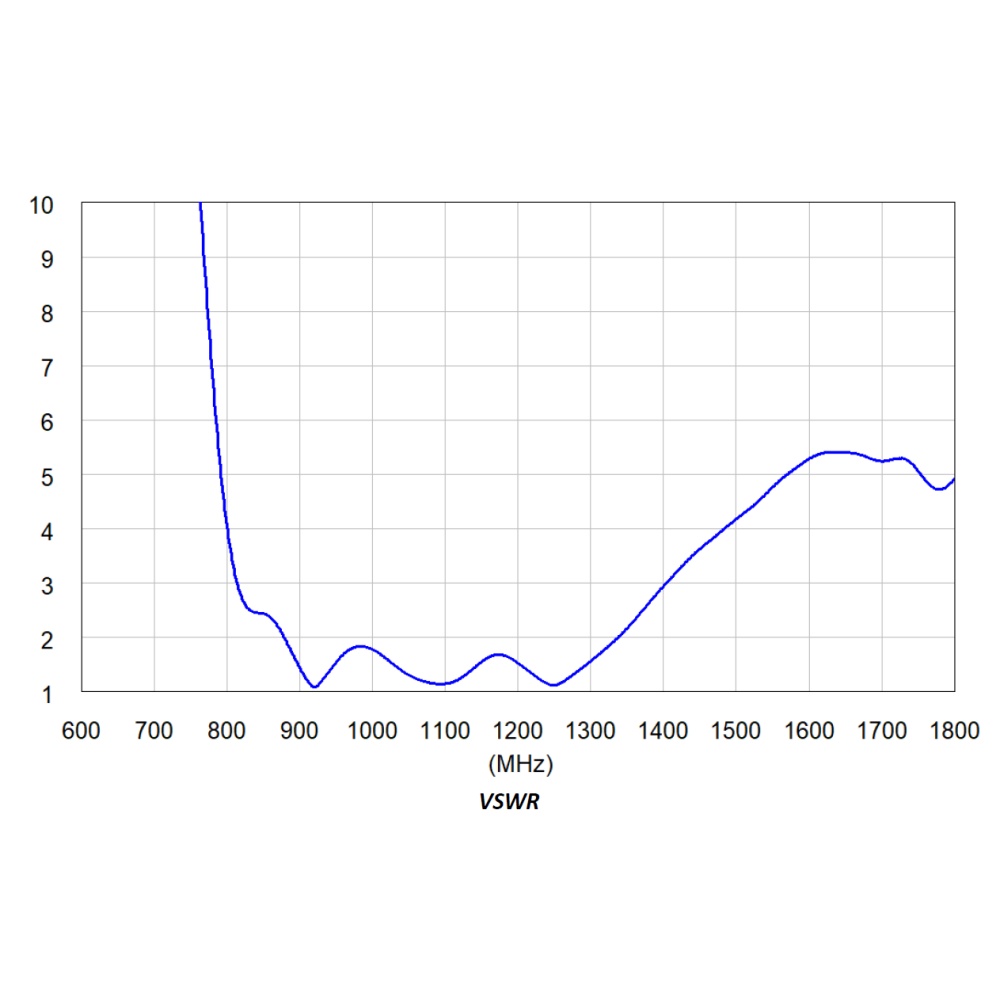

SWR: ≤1.5
Type of Polarization: Vertical
Maximum power: 10W
Impedance: 50 Ohms
Dimensions: 62,5cm
Tube diameter: 26mm
Base antenna: 32mm
Operating temperature: -30°C to +60°C
Made in France
2 years warranty
