> Radio Antennas>Air-band>ADS-B 1090 Mhz>Advanced ADS-B SDR Receiver AirNav RadarBox FlightStick
ADS-B SDR 1090 Mhz Receiver AirNav RadarBox FlightStick View larger
Previous Next

RadarBox by AirNav

AIRNAV-1090-FLIGHTSTICK-1050

New product

USA

Advanced ADS-B SDR Receiver AirNav RadarBox FlightStick

rating Read the review
Average rating: 5/5 Number of reviews: 1

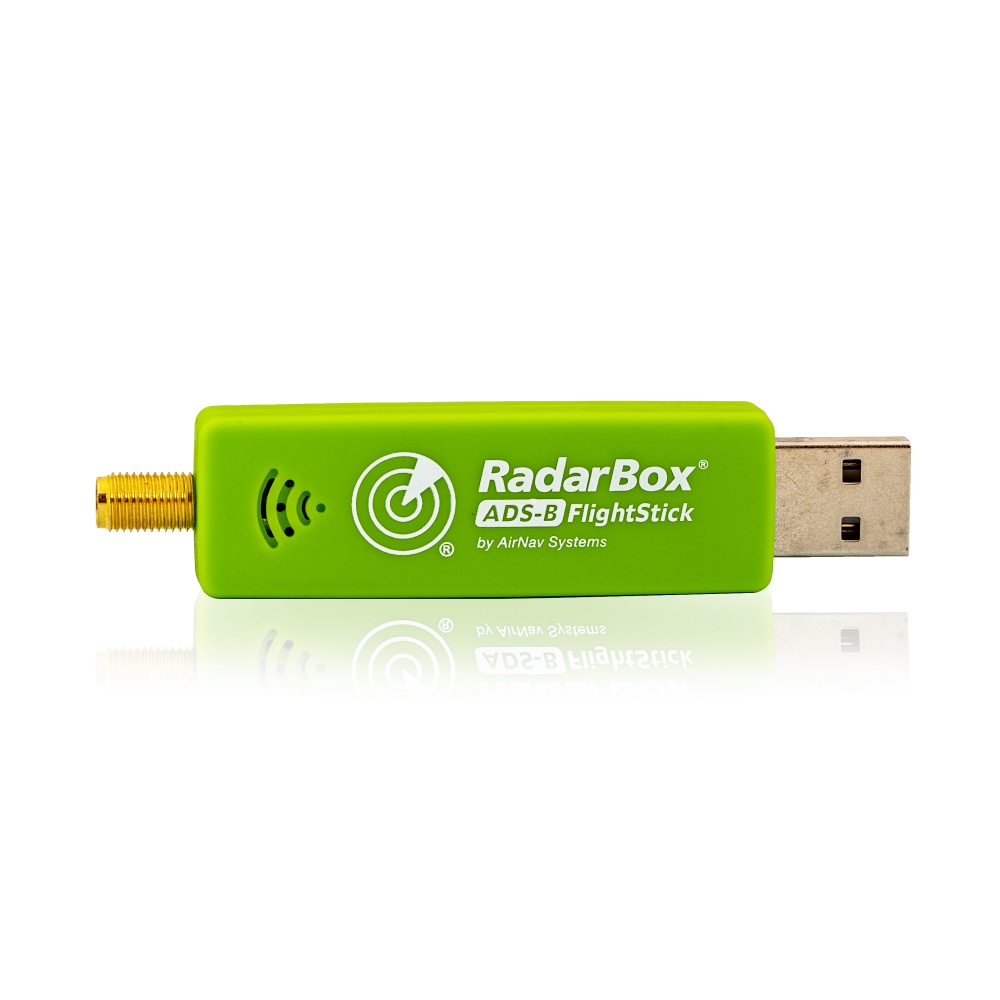

AirNav RadarBox FlightStick is a precision-tuned ADS-B receiver RTL-SDR dongle for peak performance on 1090 MHz, with SMA connector.

With integrated amplifier, 1090Mhz filter and static protection, for optimum ADSB reception coverage.

Supplied with: 1 FlightStick AirNav RadarBox dongle.

More details

This material is no longer available

Download

Drivers FlightStick (WIN)

Installation of Zadig drivers for the FlightStick RadarBox key, for Windows. 12.1M

Data sheet

RadarBox FlightStick Features

Decode and display Mode-S / ADS-B transmissions (with software to download from here https://www.radarbox.com/legacy-software)
With integrated filter and integrated amplifier
Static protection
With R820T2 tuner
Antenna connector: SMA female
RadarBox Raspberry Pi client support
Real-time sharing and reception on RadarBox.com for Windows or RadarBox for iOS and Android applications
Compatible with software: RTL1090 for Windows, planeplotter or Dump1090 for Linux
Up to 2x more decoding and coverage compared to a conventional R820T2 dongle
CE and FCC certified
2 years warranty

FlightStick driver installation

This USB stick is configured and used in the same way as a traditional RTL-SDR dongle.

The manufacturer provides Zadig drivers to install after connecting the USB key to a free port.

If you have a problem installing the FlightStick drivers, use the Zadig software and install the drivers as follows:

1 - Download the latest version of Zadig, you will need to use 7zip, winrar or winzip to decompress the archive

2 - Run the Zadig.exe file in administrator mode (right-click then "run as administrator")

3 - In Zadig, Click on the “Options” menu, then check “List all devices”

4 - Select from the drop-down menu: "Bulk-In, Interface (Interface 0)" or "RTL2832U" or "RTLxxxx"

5 - Start the update of the WinUSB driver by clicking on "Replace drivers"

You will have to run Zadig for each USB port that you use with the dongle, in case of changing the USB port, you will have to restart the driver update process with Zadig.

  • Customers also bought

    No products available

  • We also recommend

Reviews

Click here to leave a review

rating 5
Récepteur SDR ADS-B avancé AirNav RadarBox FlightS

fonctionne parfaitement et bonne réception, compliqué a configurer sur windows 10 pour ma part.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
