> Radio Antennas>27 MHz antennas>Antenna CB 27 Mhz Sirio Omega 27 MAG 95cm with 125mm magnetic base
CB 27 Mhz Sirio Omega 27 MAG antenna 95cm View larger
Sirio

SIRIO-OMEGA-27-PM125-1242

New product

Italy

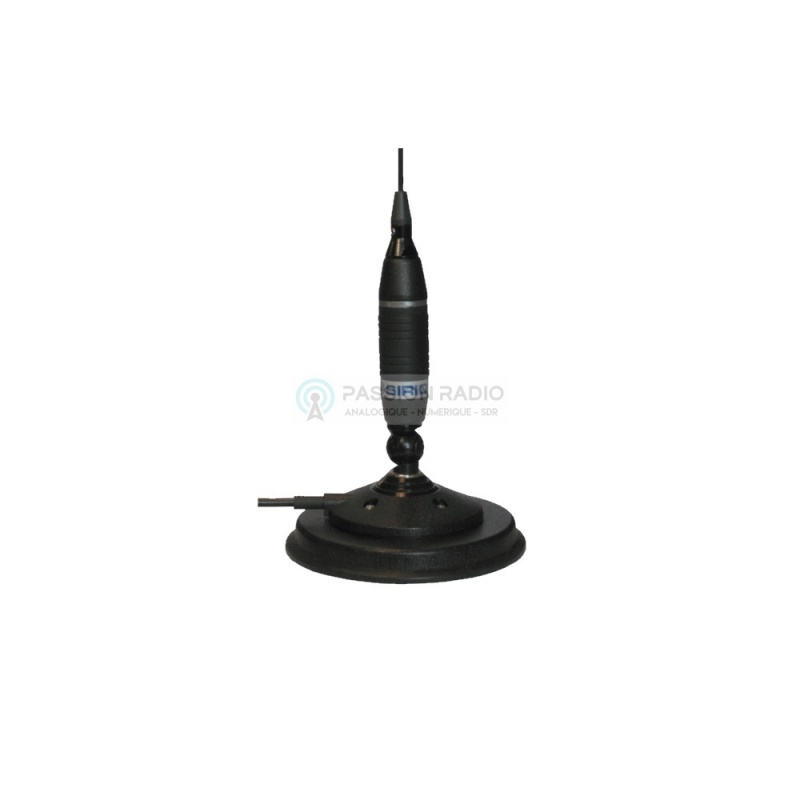

Antenna CB 27 Mhz Sirio Omega 27 MAG 95cm with 125mm magnetic base

rating No review at the moment

CB Mobile Sirio Omega 27 MAG antenna, with 125mm magnetic base, stainless steel whip and 4m RG58 cable with PL-259 connector (UHF Male).

The length of the Omega 27 MAG antenna is 95 cm for a maximum power of 15 watts continuously; 150 watts in short duration, and a bandwidth of 1440 KHz (130 channels).

Comes with: 1 Sirio Omega 27 MAG CB antenna, 1 125mm magnetic base, 1 security kit, 1 user manual in English

Delivery info: This antenna is considered a large package and the carriers apply an extra charge for shipping.

More details

55,00 € tax excl.

In stock

   1 Item

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Manuel d'usage Omega 27 MAG

2.73M

Data sheet

Electrical data:

Type: Charged base
Radiation: Omnidirectional
Polarization: Vertical linear
Frequency range: 27 ... 28.5 MHz tunable
Systems: CB 27MHz, 10m-HAM
Bandwidth: ≥ 1.44MHz @ TOS ≤ 2
Maximum power :
- 15 Watts (CW) continuous
- 150 Watts (CW) short duration
Cable length / type: 3.6 m (11.81 ft) / RG58
Connector: UHF-male (PL-259)

Mechanical data:

- Materials: Copper, Brass, 17/7 PH stainless steel, Nylon
- Height (approx.): 945 mm (3.1 ft)
- Weight (approx.): 390 grams (0.86 lb)
- Mounting type: Magnetic support
