LibreCal - Electronic Calibration Module for LibreVNA

View larger

Display all pictures

Manufacturer: RF KONNECT

Reference: LIBRECAL-3021

Condition: New product

Country of origin:

China

LibreCal - Electronic Calibration Module for LibreVNA

No review at the moment

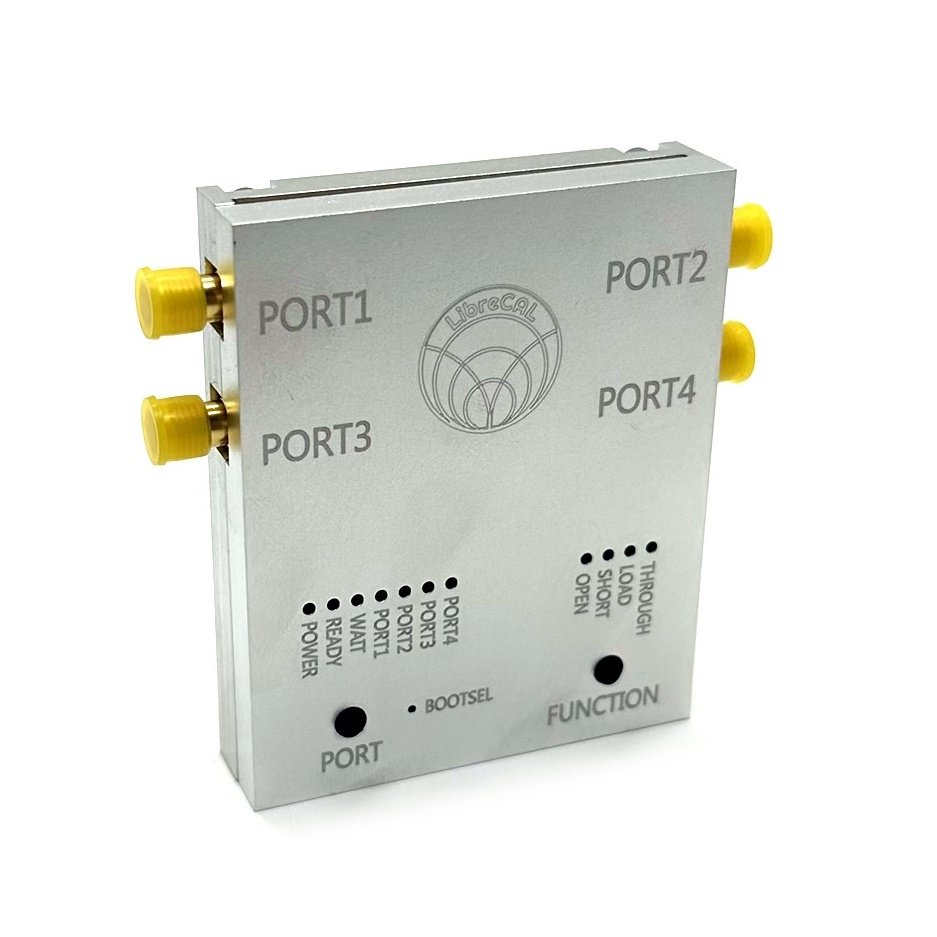

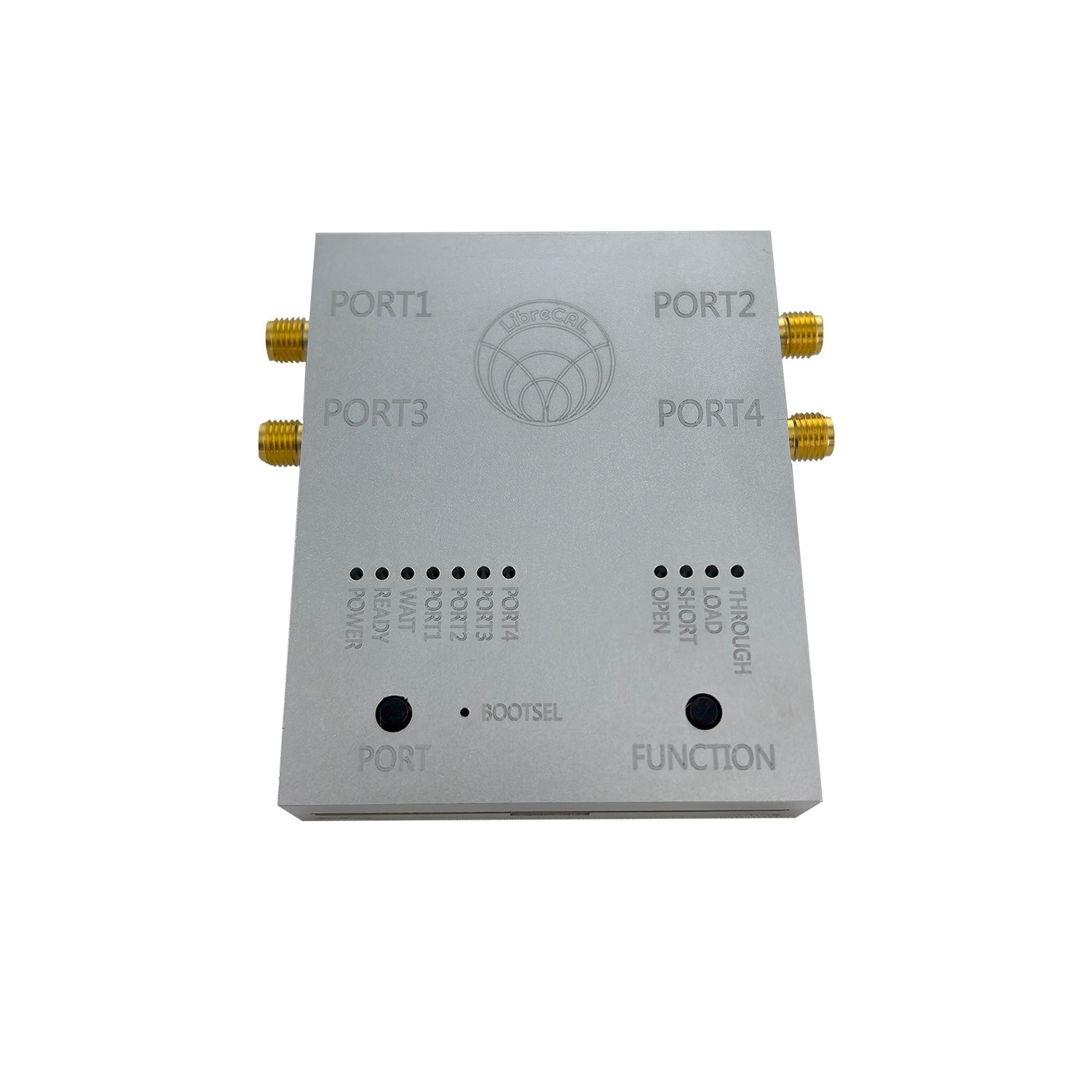

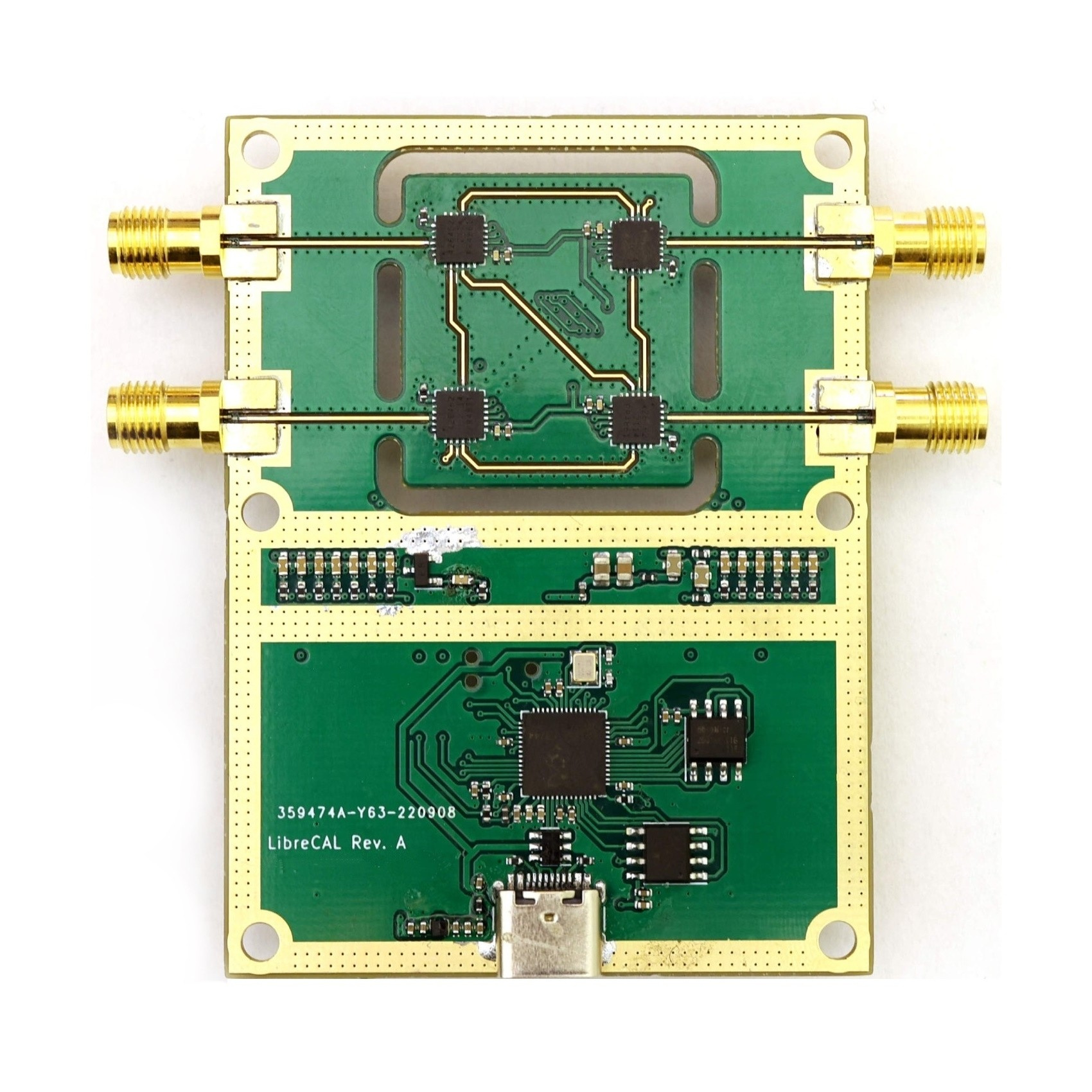

The LibreCal is a 4-port electronic calibration module designed for the LibreVNA vector network analyser, operating in a frequency range from 9kHz to 6GHz.

It enables automatic and accurate calibration, replacing traditional calibration kits (Open, Short, Load 50 ohms).

Connectors: SMA Female
Interface: USB-C for power and communication
Compatibility: Compatible with various VNAs, including NanoVNA, NanoVNA V2, and other models with electronic calibration support
Compact size: Easy to transport and integrate into a test environment

This module is specially designed to facilitate RF measurements and improve analysis accuracy by limiting handling errors and simplifying the calibration process.

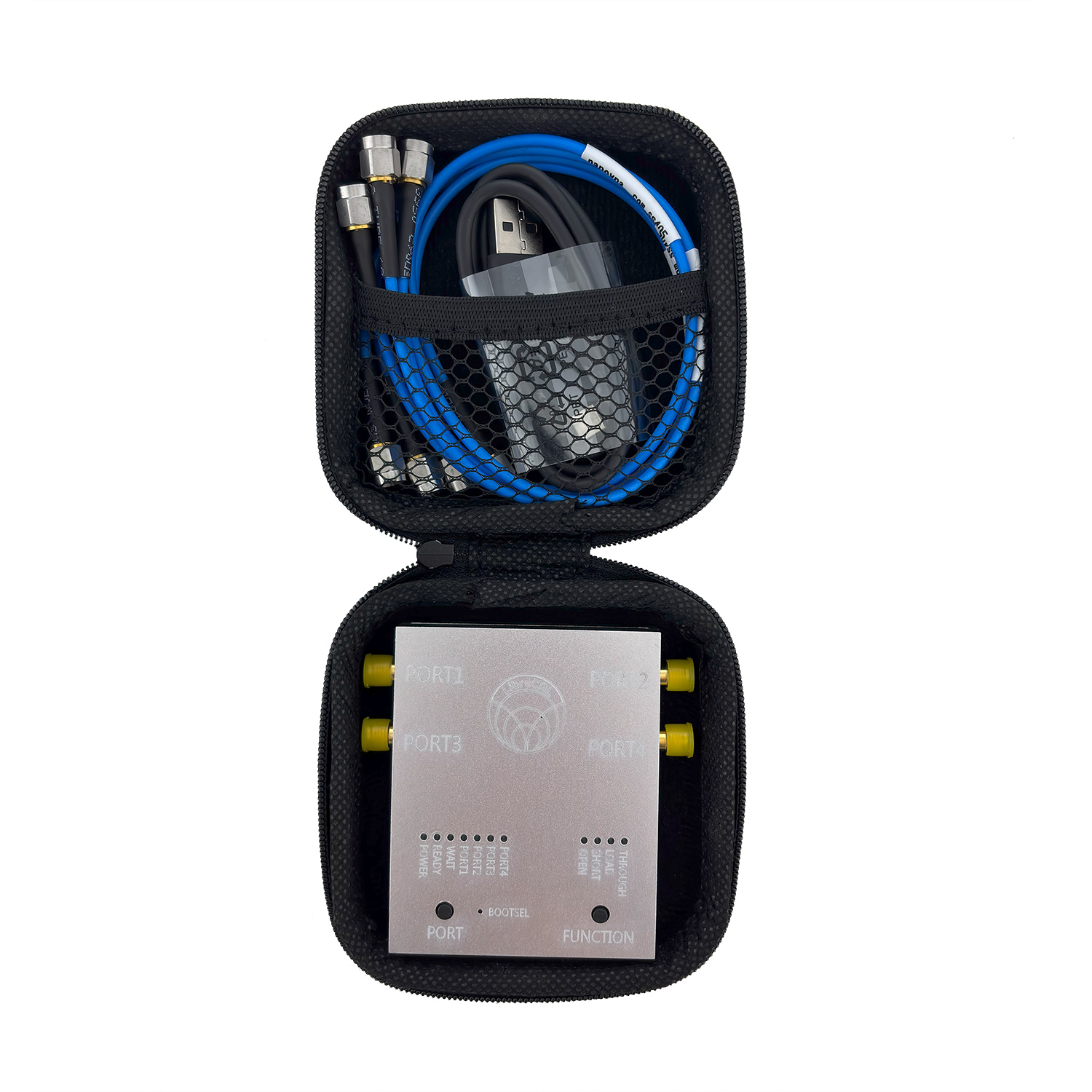

Scope of delivery: 1 4-port LibreCAL.

More details

Data sheet

Automatic electronic calibration - replaces mechanical calibration kits.
Extensive compatibility - works with many VNAs, including NanoVNA, NanoVNA V2 and other compatible models.
Female SMA connectors
Wide frequency range - from 9kHz to 6GHz.
Compact and robust design - ideal for use in the field or laboratory.
Power supply via USB-C

Technical specifications

Connectors: SMA Female
Interface: USB-C for power and communication
Compatibility: Compatible with various VNAs, including NanoVNA, NanoVNA V2, and other models with electronic calibration support
Compact size: Easy to transport and integrate into a test environment

As LibreCAL is specifically designed for LibreVNA, internally stored calibration parameters can currently only be recalled by LibreVNA, and LibreCAL cannot currently be used for other VNA calibrations.

LibreCal on Github.
