Portable antenna 12 bands HF VHF + HF aviation band EXPLORER MINI Komunica View larger
Previous Next

Komunica

KOM-HF-EXPLORER-MINI-1079

New product

Spain

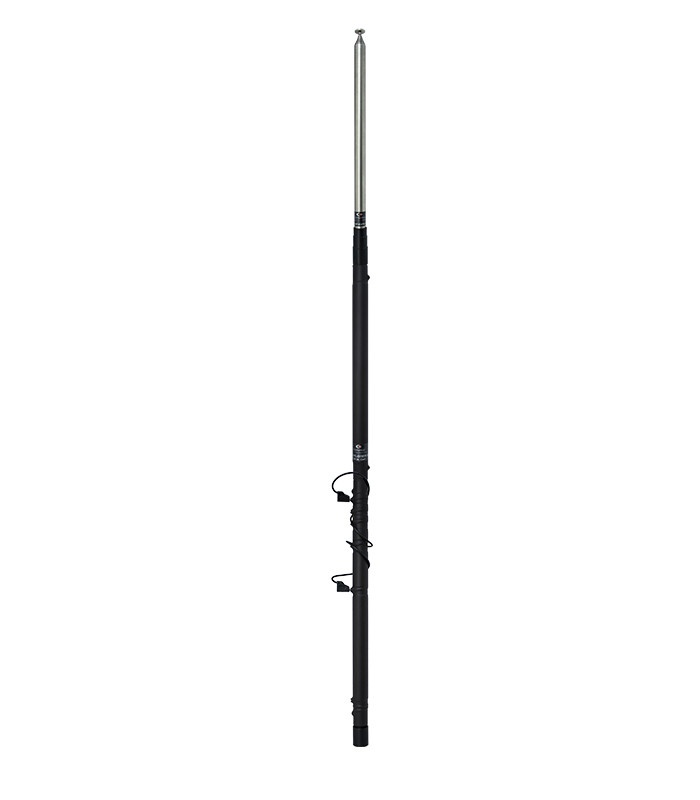

Portable antenna 12 bands HF VHF + HF aviation band EXPLORER MINI Komunica

rating No review at the moment

Komunica HF-EXPLORER-MINI portable multiband antenna, 12 bands including: HF 6/10/12/15/17/20/30/40/80 / 160m, VHF 2m (145Mhz) and the aviation band 118-136Mhz (RX only ) for portable use.

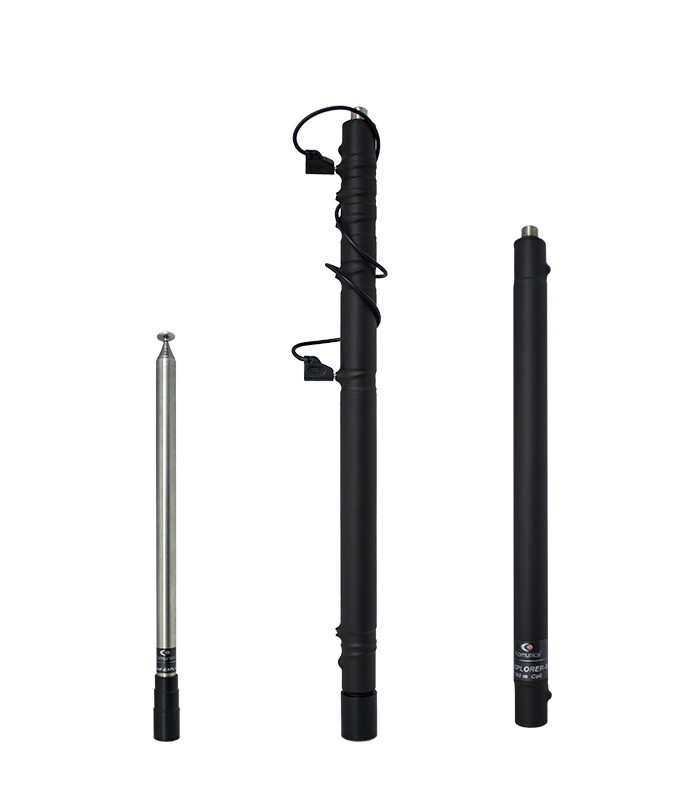

Adjustable by banana plug at the base and by telescopic rod at the top, for each band. Maximum antenna length: 2.7m for a total weight of 330g.

The use of a tuner antenna and a counterweight (ground plane) is essential with this antenna.

This antenna is not designed for mobile use, nor permanent fixed use.

Supplied with: Komunica HF-EXPLORER-MINI antenna, with coil for the 1.8 Mhz band (160m).

More details

105,00 € tax excl.

In stock

   2 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Manuel HFEXPLORER MINI (EN)

259.55k

Manuel HF Explorer Mini (FR)

261.28k

Data sheet

EXPLORER MINI HF antenna datasheet

RX and TX frequencies: 1.8 Mhz (with coil) 3.5 to 30Mhz + 50 MHz + 145 MHz VHF + Aviation Band VHF (RX only)
Antenna type: Omnidirectional ¼ wave (HF band), ¼ wave (50 MHz) and 5/8 wave (145 MHz VHF)
Max power : 120 W (SSB)
Impedance: 50 Ω
Maximum length 270 cm (unfolded)
Weight: 330g

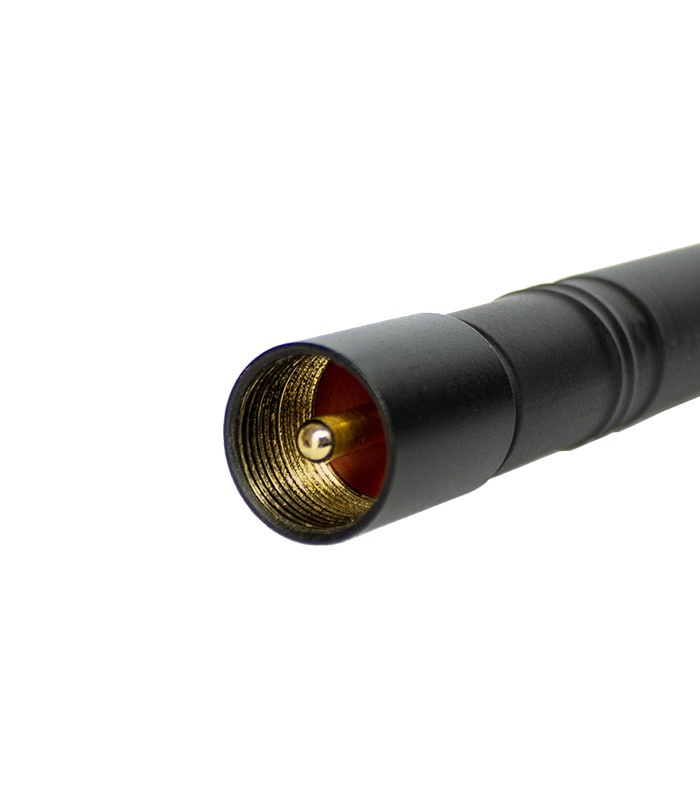

Connector: PL-259 (UHF Male)
Complementary coil for the 160m (1.8Mhz) band
