> Radio Antennas>VHF-UHF>Handheld Antenna>Diamond SRJ775 144-430Mhz SMA Female Telescopic Antenna

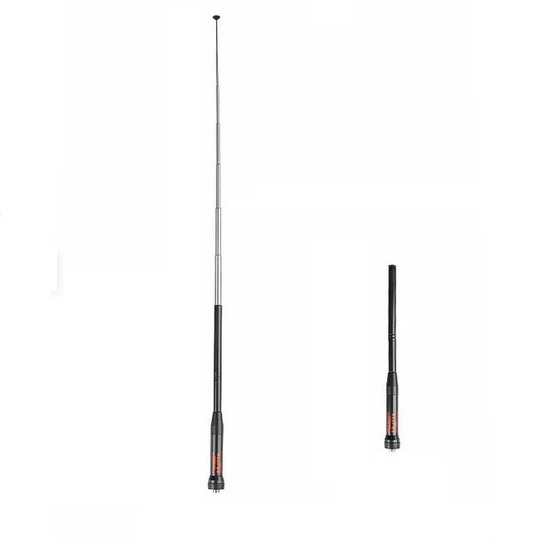

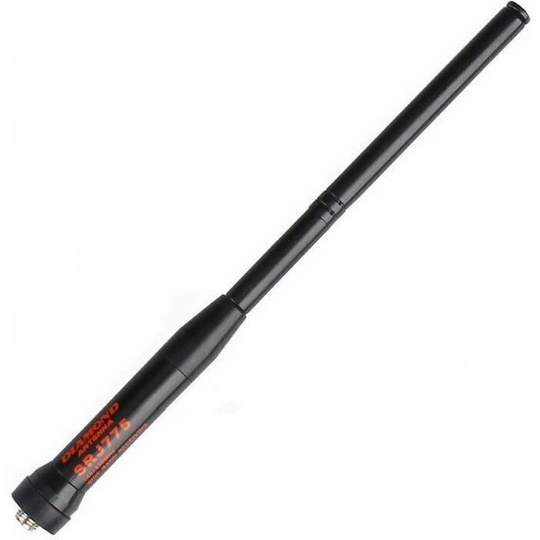

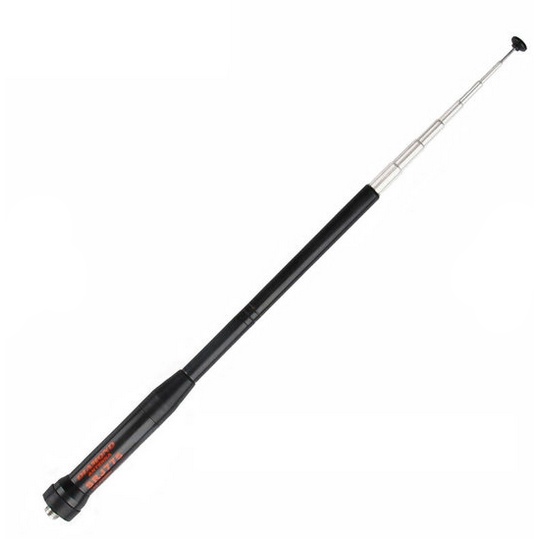

Diamond SRJ775 144/430Mhz SMA female telescopic antenna View larger
Previous Next

Diamond Antenna

DIAMOND-SRJ775-1752

New product

Japan

Diamond SRJ775 144-430Mhz SMA Female Telescopic Antenna

rating Read the 2 reviews
Average rating: 5/5 Number of reviews: 2

Diamond SRJ775 VHF-UHF telescopic antenna for walkie-talkies (Anytone, Wouxun, Yaesu) with SMA-Male antenna connector, measures 45cm unfolded.

  • Transmitter frequencies (TX): 144-146Mhz and 430-440Mhz
  • Receive frequencies (RX): 120Mhz to 900 MHz (RX only)
  • Length: 45cm (total length)
  • Weight: 46g
  • Gain: 2.15 dBi
  • Maximum power rating: 10W
  • Impedance: 50 ohms
  • Connector: SMA-Female
  • Type: 1/4 wave (144 MHz), 1/2 wave (430 MHz)

Comes with : Diamond SRJ775 Antenna Genuine Diamond Japan Warranty.

More details

24,90 € tax excl.

Out of stock, available within 2 to 3 months

Data sheet

Transmission frequencies (TX): 144-146Mhz and 430-440Mhz
Reception frequencies (RX): 120Mhz to 900 MHz (RX only)
Length: 40.2cm
Gain: 0dBi (144Mhz), 2.15dBi (430Mhz)
Max power : 10W
ROS: Less than 1.5: 1 (144 / 430Mhz)
Connector: SMA female
Antenna guaranteed original Diamond Antenna (Japan)

  • Customers also bought

  • We also recommend

    • Antenna 144/430Mhz + Air Band for Baofeng UV-5R UV-888 & UV-82 Diamond Antenna Handheld DIAMOND-SRJ701A-151
      29,90 €

      Reference: DIAMOND-SRJ701A-151

      Antenna Diamond SRJ701A 144/430Mhz + Air Band for Baofeng UV-5R UV-888 & UV-82

      VHF-UHF antenna Diamond SRJ701A with SMA female connector and a length of 19cm, for all portable Baofeng UV-5R, UV-888 and UV-82. This antenna is compatible with all walkie-talkie equipped with an SMA

      29,90 €
    • Antenna Nagoya NA-771 2m/70cm SMA Female or SMA Male Nagoya Antenna Handheld NAGOYA-NA-771-FEMELLE-457
      13,20 €

      Reference: NAGOYA-NA771-MALE-4572

      Antenna Nagoya NA-771 2m/70cm SMA Female, SMA Male or BNC Male

      This Nagoya walkie-talkie antenna with SMA Male, SMA female or BNC male connector (to be chosen below) increases performance on the 144 Mhz and 430 Mhz bands, the antenna is 39cm long.The SMA Female

      13,20 €
    • Nagoya antenna NA-707 telescopic 61cm 144/430Mhz + RX 80-1000Mhz Nagoya Antenna Wide-band NAGOYA-NA707-SMAM-462
      14,88 €

      Reference: NAGOYA-NA707-BNC-4623

      Nagoya antenna NA-707 telescopic 61cm 144/430Mhz + RX 80-1000Mhz

      This antenna Nagoya NA-707 is tilting and telescopic (61cm unfolded, 15,8cm folded), for effective reception from 80Mhz to 1000Mhz (announced RX from 1.8Mhz to 1800Mhz by the manufacturer), and can be

      14,88 €
    • VHF-UHF handheld Wouxun KG-UVD1P Wouxun HT Handheld WOUXUN-KG-UVD1P-794
      129,00 €

      Reference: WOUXUN-KG-UVD1P-HAM-794

      VHF-UHF handheld Wouxun KG-UVD1P

      The Wouxun KG-UVD1P VHF / UHF walkie-talkie covers amateur VHF 144-146Mhz and UHF 430-440Mhz in reception and transmission, with a power of 1-5 watts in VHF and 1-4W in UHF.- Usable in broadcasting

      129,00 €

Reviews

Click here to leave a review

rating 5
Matériel de qualité

Jamais eu des problèmes avec le matériel Diamond

rating 5
Excellente antenne.

J'utilise la SRJ 775 sur un Yaesu Ft 4X. Le gain par rapport à l'antenne d'origine est d'environ 2 points de signal. Le fait qu'elle soit stéréoscopique est un avantage pour le transport car repliée elle fait environ 15 cm, pour environ 40 cm déployée. Cependant, il faut veiller à bien la déployer et le seul soucis est qu'elle pourrait se casser si on la manipule mal.
