> Ham & radio equipment>HT Handheld>Yaesu FT-4 XE VHF / UHF FM 5W Walkie-Talkie

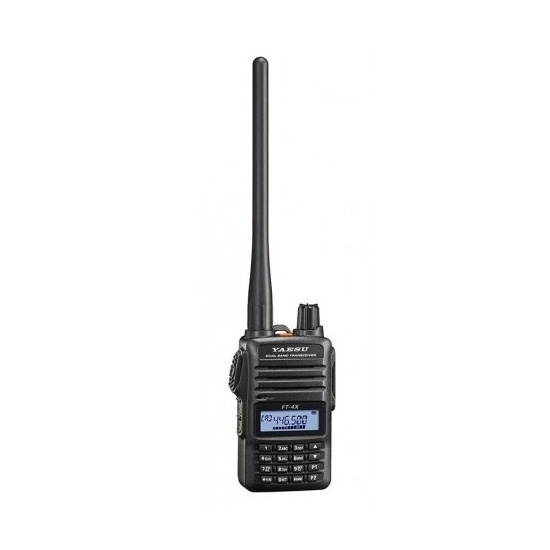

Yaesu FT-4XE VHF / UHF FM 5W Walkie-Talkie View larger
YAESU

YAESU-FT-4XE-1411

New product

Japan

Yaesu FT-4 XE VHF / UHF FM 5W Walkie-Talkie

rating Read the 19 reviews
Average rating: 5/5 Number of reviews: 19

Yaesu FT-4 XE 5W FM VHF/UHF portable walkie talkie. Small and reliable, it has a great autonomy of 10-15 hours.

  • Power 0.5/2.5/5 W
  • Audio power 1 W
  • Up to 15 hours of autonomy
  • Charging time: 3.5 h with the supplied SBH-22 fast charger
  • 2 user configurable buttons
  • 200 memories
  • Scanning possibilities: VFO, memories, band limits, memory banks, dual reception
  • Increment steps: 5/6.25/10/12.5/15/20/25/50/100 kHz
  • Split memories (independent Rx/Tx frequencies)
  • VOX with option SSM-512B
  • PC programming with option SCU-35
  • 88-108MHz WFM radio receiver
  • DTMF, CTCSS filtering, DCS
  • Antenna connector on the handheld: SMA male (change the original antenna by a SMA female antenna connector)
  • Dimensions 52 x 90 x 30 mm (WxHxD)
  • Weight 250g with antenna and battery
  • 5 years Yaesu warranty

Delivered with: 1 Yaesu FT4 XE, 1 SMA antenna SRA-15 (SMA Female), Li-Ion battery SBR-28LI 1750 mAh, 1 power supply 220V SAD-20C, fast charger SBH-22, 1 belt clip SHB-18. Manual to download below.

More details

79,00 € tax excl.

In stock

   More than 10 Items

Estimate shipping costs by clicking on "Add to cart", then enter only your country and zip code on the cart page.

Download

Manual FT-4XE (FR)

French manual for the Yaesu FT4XE walkie talkie. 8.74M

Advanced manual FT4XE (EN)

Yaesu FT-4XE walkie talkie advanced manual in French. 4.15M

Manual FT4XE (EN)

Yaesu FT-4XE walkie talkie advanced manual in English. 8.68M

Advanced manual FT4X (EN)

FT4-XR & FT-4XE advanced manual in English. 4.24M

Prolific drivers for FT-4 XE

For the SCU-35 USB cable of the FT4, under Windows. 2.77M

Programming software for FT-4 XE

For Windows and the FT4XE version (Europe). 4M

Certification CE RED FT-4XE

174.84k

Data sheet

RX frequency range :
FM broadcasting: 65 - 108 MHz
136-174 MHz, 400 - 480 MHz

TX frequency range: 144 - 146 MHz, 430 - 440 MHz
Frequency steps: 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
Transmission mode: F2D, F3E, F2A
Frequency stability: ±2.5 ppm (-20°C to +60°C)
Antenna impedance: 50 ohms
Antenna connector: SMA Male
Supply voltage: Nominal: 7.4 V DC with SBR-28LI battery
Current consumption :
190 mA (reception, 200 mW audio output)
95 mA (standby, saver off)
23 mA (standby, saver on)
5 mA (auto power off)
1.5 A (5 W Tx , 144 MHz) 7.4 Vdc
1.7 A (5 W Tx, 430 MHz) 7.4 Vdc
Operating temperature: -20°C to +60°C
Case size: 52 (W) × 90 (H) × 30 (D) mm (without button and antenna)
Weight (approx.): 250 g with SBR-28LI and antenna

Transmitter
RF output power: 5.0 W (High) / 2.5 W (Medium) / 0.5 W (Low) (@ at 7.4 V with SBR-28LI)
Modulation type: Variable reactance
Maximum deviation: ±5.0kHz
Spurious emissions : At least 60 dB below (at high, medium TX power)
At least 55 dB below (at low TX power)
Microphone impedance: 2 kΩ

Receiver
Circuit type : Direct conversion
Sensitivity: 0.2 μV for 12 dB SINAD (140 - 150 MHz, NFM)
0.2 μV for 12 dB SINAD (420 - 470 MHz, NFM)
Selectivity (-6 dB/-60 dB): FM, NFM ±25 kHz / 12.5 kHz
AF output: 800mW (16 Ω at THD 10% 7.4 Vdc)
internal speaker 800 mW (16 Ω at THD 10% 7.4 Vdc)
External speaker socket

Specifications are subject to change without notice, and are only guaranteed in the 144 and 430 MHz amateur radio bands.
