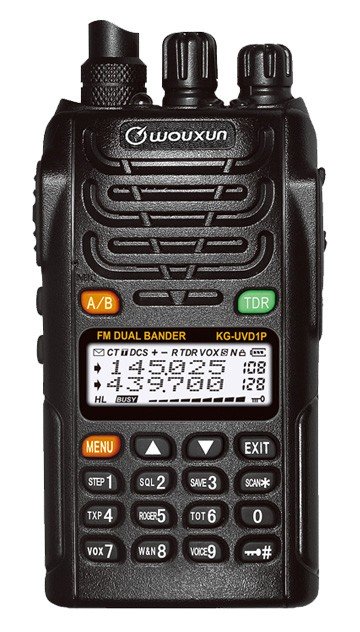

VHF-UHF handheld Wouxun KG-UVD1P

The Wouxun KG-UVD1P VHF / UHF walkie-talkie covers amateur VHF 144-146Mhz and UHF 430-440Mhz in reception and transmission, with a power of 1-5 watts in VHF and 1-4W in UHF.

- Usable in broadcasting with amateur radio license
- FM analog mode
- 128 memories
- No frequency: 5, 6.25, 10, 12.5, 25, 50 and 100KHz
- Double simultaneous reception
- FM radio 88-108Mhz, VOX and 1750Hz
- Battery 1700 mAh
- Programmable by computer with USB cable (optional)
- Antenna connector: SMA female (antenna compatible with SMA Male)
- Range: 3-5 km and up to 10-15 km outdoors depending on clearance and in direct view

Comes complete with: 1 Wouxun KG-UVD1P, 1 Li-Ion Battery 1700mAh, 1 VHF / UHF dual-band antenna, 1 belt clip, 1 lanyard, 1 charger 220V EU plug, manual in English.

More details

Download

Drivers USB Wouxun Windows

Drivers CP210x Windows 10, WIN 7 & 8 and Windows XP for any Wouxun workstation. 11.26M

CPS software KG-UVD1P

For Windows 2.51M

Manual KG-UVD1P (FR)

Manual KG-UVD1P in french. 2.4M

Manual KG-UVD1P (EN)

Manual in english for Wouxun KG-UVD1P. 11.39M

CE RED certification Wouxun

Declaration of conformity, test report and CE certification RED Wouxun KG 8.94M

Data sheet

Features Wouxun KG-UVD1P

- 128 memories
- Dual-band amateur radio: VHF 144-146Mhz and UHF 430-440Mhz
- Transmitting power: 1 or 4W in UHF / 1 or 5W in VHF
- 1700 mAh Li-Ion battery
- FM radio 88-108Mhz, LED flashlight
- SOS function, SCAN, Priority scanning mode
- Dual standby and dual simultaneous reception
- CTCSS / DCS, 1750hz tone, DTMF
- Low battery alert, energy saver
- Programmable via Windows PC (requires USB cable (optional)
- Backlit LCD screen
- Backlit Keyboard
- Antenna connector on the walkie-talkie: SMA Male
- Mic / Headphone Connector: Standard Kenwood
- Resistance to water projection IP55
- LED flashlight
- Weight: 298g
- Size (without antenna): 6.1cm × 11.95cm × 3.75cm
- 2 year warranty and CE RED and FCC certified
