QRP Portable Xiegu X5105 HF + 50-54Mhz + Tuner + IF

rating No review at the moment

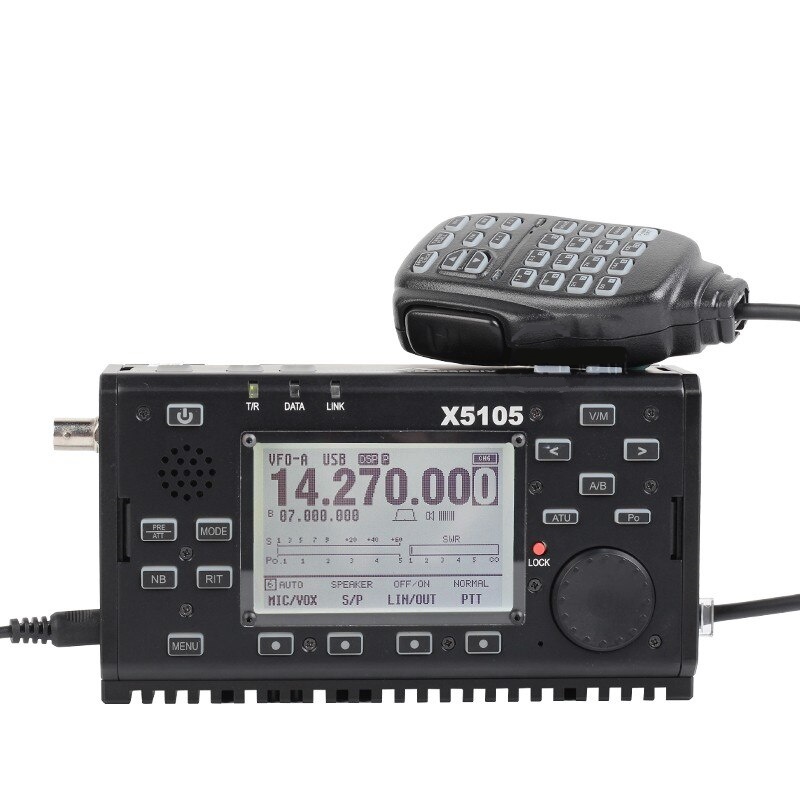

The Xiegu X5105 V3* is a QRP portable HF+6M transceiver, SSB / CW / AM / FM / RTTY / PSK / FT8** modes, with a high-capacity 3800mAh battery, an integrated automatic antenna tuner, and a front-end receiver cover 0.5 to 30Mhz, 50-54Mhz and transmit on HF radio amateur bands +6 meters (50Mhz) with 5 watts.

* The new V3 version can be recognized by the protective glass screwed onto the screen.
** FT8 mode requires optional CE-19 extension.

The built-in 3800mAh battery can provide 6 to 8 hours of use, in SOTA for example.

The Xiegu X5105 is equipped with a color LCD screen and an IF output (intermediate frequency 70.455Mhz) via an MCX connector on the side to connect a RTL-SDR stick or a SDR receiver, to have a panadapter on your computer with the X5105.

Comes with: Xiegu X5105, power cable, handheld microphone, user manual in English, 2 years warranty.

More details

This material is no longer available

Download

Firmware X5105 V3.0 Build008

Software, drivers and firmware 3.0 (build008) for the update of the Xiegu X5105 from November 2019 9.13M

Technicals specs X5105

873.62k

Firmware X5105 V1.0.04

6.03M

Manual X5105 V3 (EN)

User manual for 5105 in english. 1.72M

Firmware Update Guide

Guide to update the firmware of X5105 2.11M

Firmware X5105 V1.0.06 BETA

4.73M

Connection diagram CE-19

2.17M

Tutorial CE-19 for G90 & X5105

Configuration tutorial for connecting the CE-19 expansion port for Xiegu G90 and X5105. 211.93k

Windows drivers PL2303

Windows drivers Prolific PL2303, for XP, WIN7, WIN8 and PL-2303 check chip version tool. 4.97M

Data sheet

Reception: 500 kHz to 30 MHz and 50 to 54 MHz
Emission: All amateur radio bands from 160 meters to 6 meters
Power: 5 W (SSB / CW / FM), 1.5 W (AM), at 13.8VDC
Modulation mode: A1A (CW), A3E (AM), J3E (USB / LSB), F3E (FM)
Antenna impedance: 50Ω

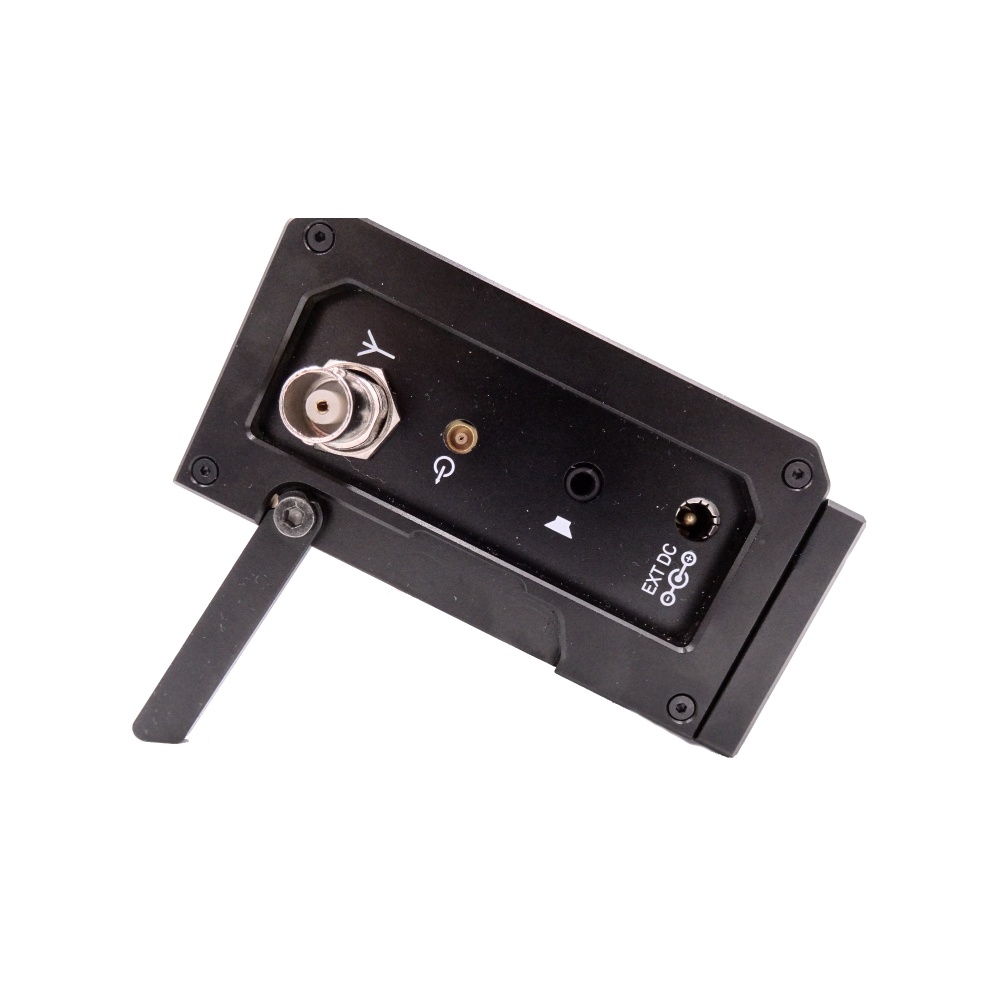

Antenna connector: BNC Female
With firmware v3.0 installed
Temperature range: -10 ° C to + 60 ° C
Frequency stability: ± 4ppm (after 1-2 hours) at 1ppm in operation
Supply voltage: 13.8VDC + 15%
Operating voltage: 9-15V DC
Consumption: RX 660mA, TX 2.5A Max
Battery capacity: 3800 mAh at 12 V
Dimensions: 160 * 100 * 46mm
Weight: 0.94Kg
CE standards, 2 year warranty (excluding PA)

Receiver settings
Superheterodyne double conversion with DSP
FI1: 70.455 MHz, FI2: 10.695 MHz, FI3 455 kHz (FM)
Rejection: 70dB
Audio output: 0.6W (8Ω)
Audio output impedance: 4-16 Ω

Selectivity:
SSB -6dB: 2.4 kHz / -60dB: 4.6 kHz
AM -6dB: 6.0 kHz / -60dB: 25.0 kHz
FM -6dB: 12.0 kHz / -60dB: 25.0 kHz

Panadapter demonstration with RSP SDRPlay & SDRuno

Review by K8MRD RADIO STUFF

Walkie-talkie QRP X5105 by OM0ET
