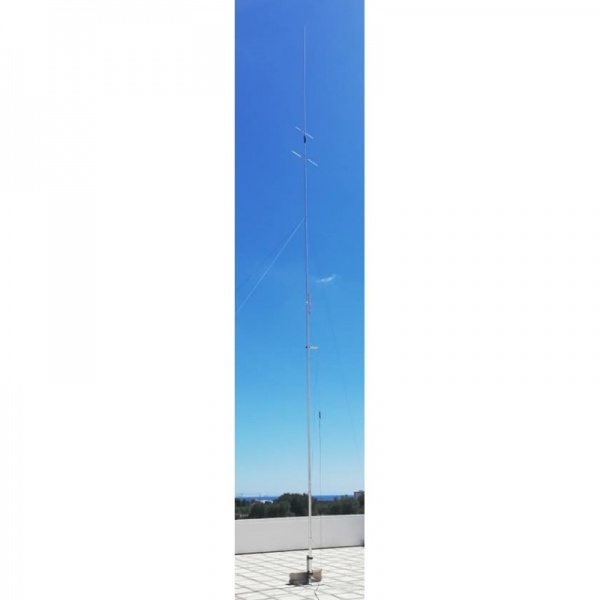

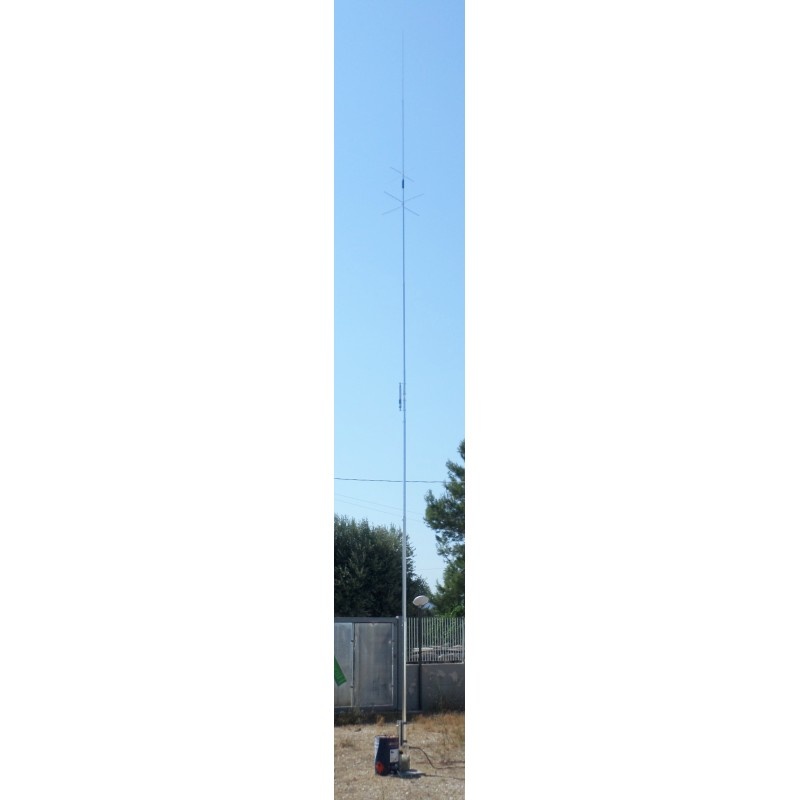

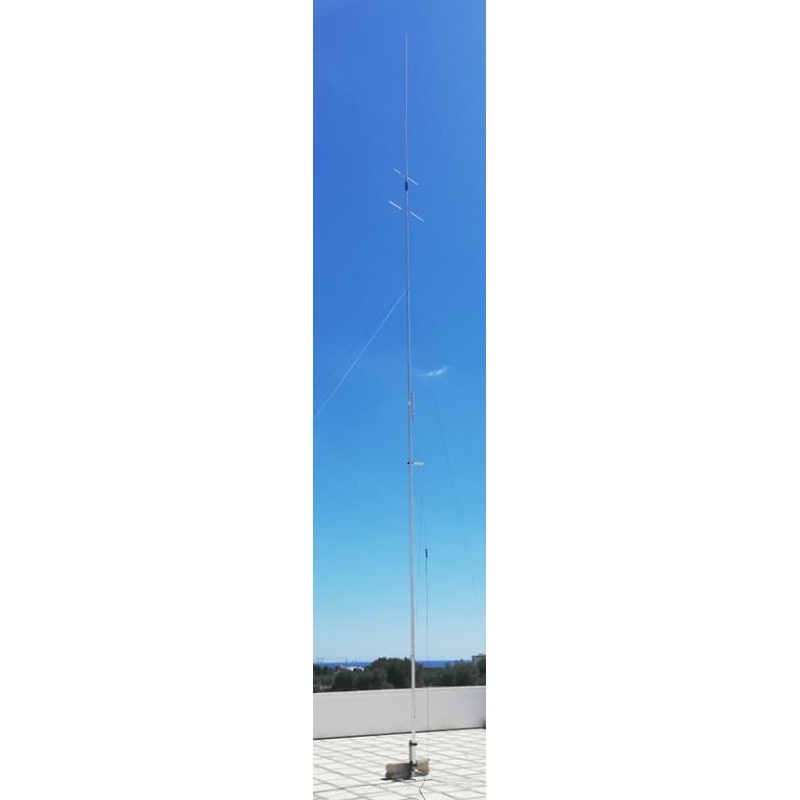

PST-248VF vertical multiband antenna for 20, 40 and 80m ProSisTel

Specifications

• 3-band vertical antenna (20-40-80m) with 1/4 lambda wire radials for each band.
• Full coverage in 20m and 40m, around 120Kc in 80m.
• RF shock for electrostatic protection.
• 2KW pep
• SO239
• Height : approx. 11.3m
• Weight = approx. 6.5Kg
• Wind surface area = 0.27m2
• Max. wind surface = 130km/h with 3 upwinds, supplied as standard.
• Accepts a 40-50mm mast (60mm on request)
• Aluminium 6060T6, stainless steel bracket and hardware.
